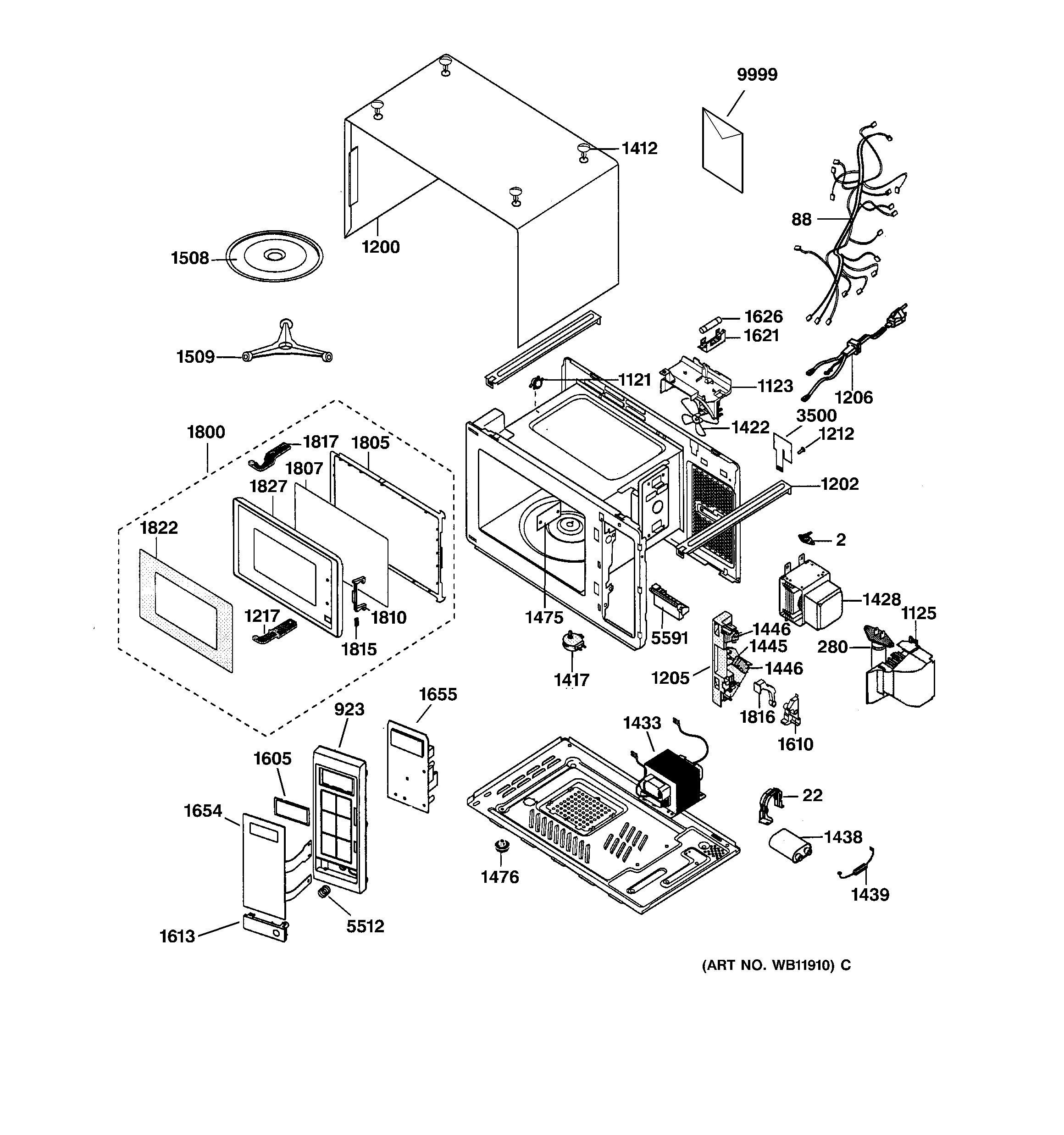

JE520WC001 MICROWAVE PARTS
Products
| Position | Product |
|---|---|
| 2 | THERMOSTAT |
| 22 | BRACKET-HVC |
| 88 | GEN WB01X10115 |
| 280 | GEN WB36X10002 |
| 923 | GEN WB07X10397 |
| 1121 | GEN WB27X10075 |
| 1123 | GEN WB06X10251 |
| 1125 | GEN WB06X10252 |
| 1200 | GEN WB56X10177 |
| 1202 | GEN WB06X10244 |
| 1205 | GEN WB06X0507 |
| 1206 | POWER CORD ASS'Y |
| 1212 | BUTTON-LOCK |
| 1217 | GEN WB14X10023 |
| 1412 | WB6X321 GE Oven Clip Plug White |
| 1417 | GEN WB26X10079 |
| 1422 | GEN WB26X10040 |
| 1428 | GEN WB27X10413 |
| 1433 | TRANSFORMER HV 120/60 HZ |
| 1438 | GEN WB27X10359 |
| 1439 | WB27X1160 GE Microwave High Voltage Diode |
| 1445 | WB24X830 GE Oven Door Switch |
| 1446 | WB24X829 GE Oven Microwave Secondary Micro Switch |
| 1475 | WAVE GUIDE-MICA CVR |
| 1476 | GEN WB06X0540 |
| 1508 | TRAY-COOKING |
| 1509 | ROLLER GUIDE ASS'Y |
| 1605 | GEN WB27X10414 |
| 1610 | LEVER-S/W-B |
| 1613 | GEN WB03X10105 |
| 1621 | GEN WB06X10050 |
| 1626 | WB27X10928 GE Oven Line Fuse |
| 1654 | GEN WB24X10062 |
| 1655 | GEN WB27X10415 |
| 1800 | GEN WB55X10379 |
| 1805 | GEN WB55X10376 |
| 1807 | DOOR-FILM |
| 1810 | GEN WB06X10245 |
| 1815 | GEN WB09X0304 |
| 1816 | GEN WB06X10247 |
| 1817 | GEN WB14X10022 |
| 1822 | GEN WB55X10377 |
| 1827 | GEN WB55X10378 |
| 3500 | GEN WB06X10007 |
| 5512 | GEN WB09X0308 |
| 5591 | GEN WB06X10246 |
| 9999 | GEN 31-20477 |
| 9999 | GEN 49-8739 |
