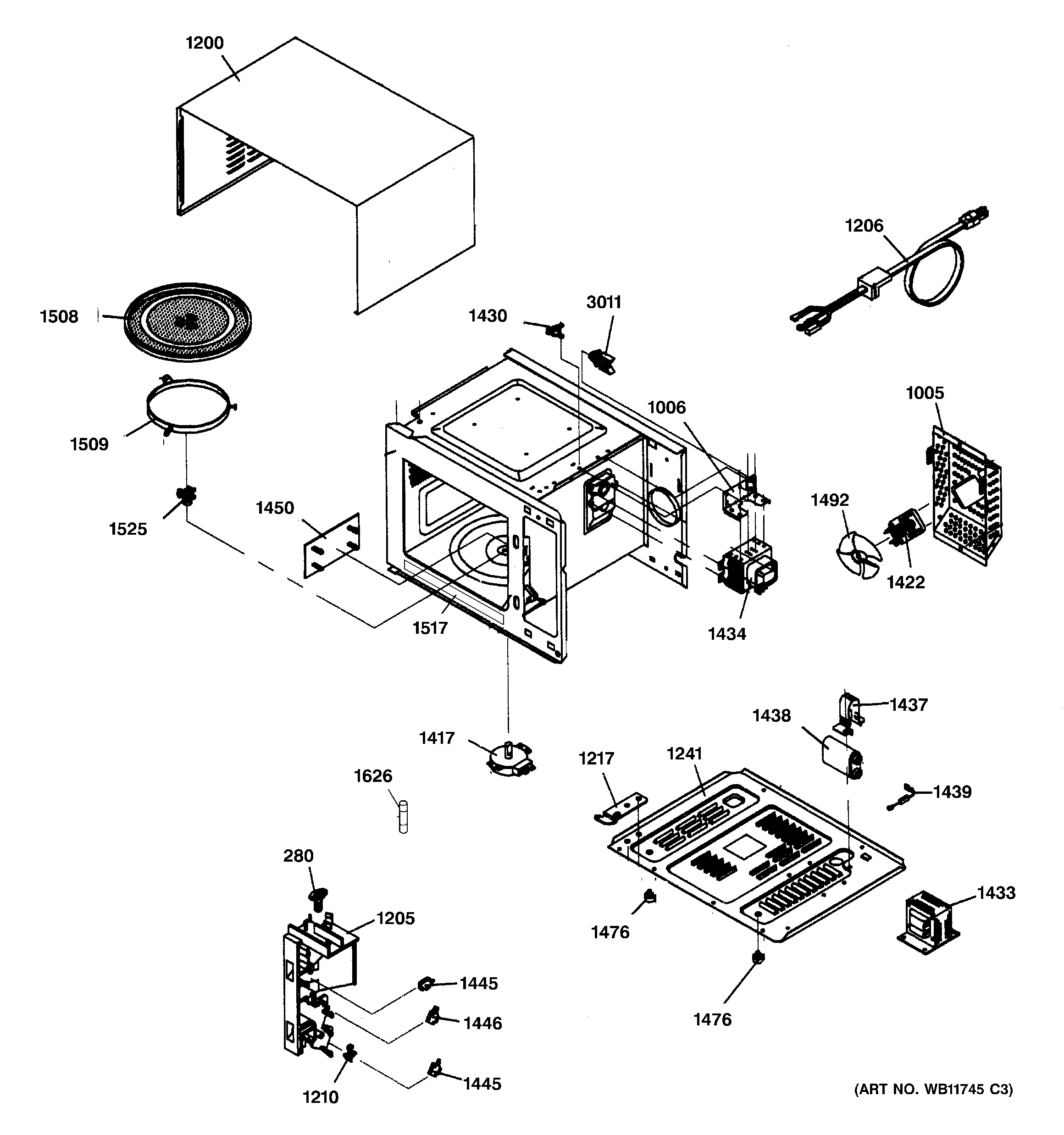

JE635WC02 UNIT PARTS
Products
| Position | Product |
|---|---|
| 280 | LAMP (120V, 25W) |
| 1005 | GEN WB63X0450 |
| 1006 | GEN WB06X0525 |
| 1200 | GEN WB56X2189 |
| 1205 | GEN WB06X0517 |
| 1206 | GEN WB18X0570 |
| 1210 | GEN WB06X0518 |
| 1217 | GEN WB14X10016 |
| 1241 | GEN WB63X0449 |
| 1417 | GEN WB26X0186 |
| 1422 | GEN WB26X0187 |
| 1430 | WB27X10568 GE Oven Cavity Thermostat |
| 1433 | GEN WB27X1143 |
| 1434 | GEN WB27X1144 |
| 1437 | GEN WB06X0524 |
| 1438 | GEN WB27X1140 |
| 1439 | WB27X10562 GE Oven High Voltage Diode Assembly |
| 1445 | GEN WB24X0820 |
| 1446 | GEN WB24X0821 |
| 1450 | GEN WB06X0516 |
| 1476 | GEN WB06X0523 |
| 1492 | GEN WB26X0188 |
| 1508 | COOKING TRAY |
| 1509 | GEN WB39X0080 |
| 1517 | GEN WB04X0189 |
| 1525 | GEN WB06X0515 |
| 1626 | WB27X7 GE Oven Fuse |
| 3011 | GEN WB06X0526 |
