JE69002 MICROWAVE OVEN

JE69002 MICROWAVE OVEN

Written by

in

JE69002 MICROWAVE OVEN

Products

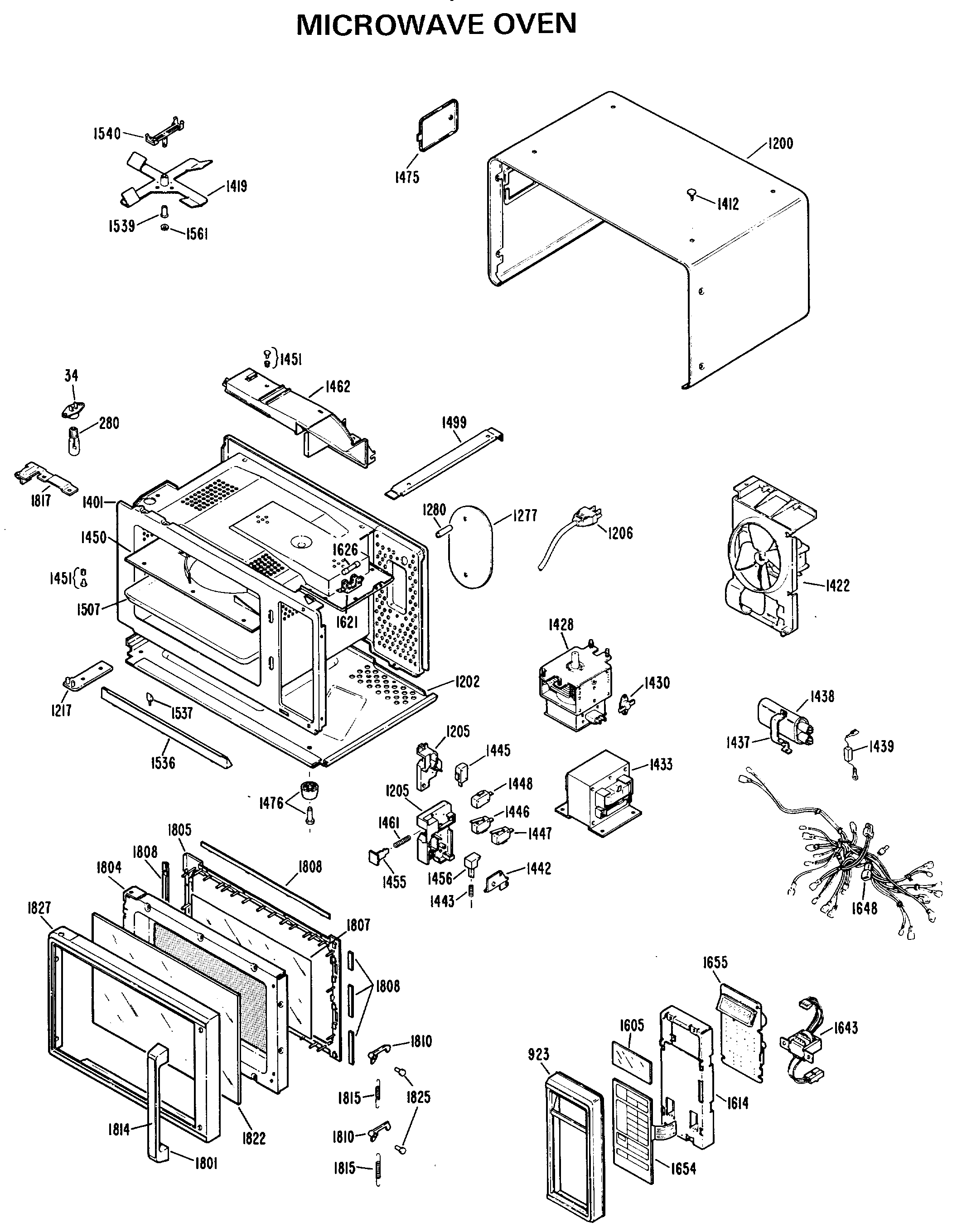

PositionProduct
34GEN WB08X0256
280GEN WB02X4611
923CONTROL PANEL
1200GEN WB56X1838
1202BASE PLATE
1205LATCH BODY-UPPER
1205LATCH BODY-LOWER
1206CORD-POWER SUPPLY
1217HINGE-LOWER
1277GEN WB02X4683
1280GEN WB02X4682
1401OVEN ASSEMBLY
1412GEN WB02X4979
1419BLADE-STIRRER
1422FAN MOTOR ASM
1428GEN WB27X0348
1430GEN WB27X0231
1433TRANSFORMER-HV
1437GEN WB02X4677
1438GEN WB27X0331
1439WB27X1160 GE Microwave High Voltage Diode
1442COVER-SLIDE
1443SPRING-SLIDER
1445GEN WB24X0440
1446SWITCH-DOOR SENSING
1447GEN WB24X0443
1448WB24X829 GE Oven Microwave Secondary Micro Switch
1450COVER-STIRRER
1451GEN WB02X7566
1455GEN WB02X4681
1456SLIDE-LATCH
1461SPRING-SLIDER
1462COVER-AIR
1475GEN WB56X1839
1476PIN-FOOT
1476GEN WB02X7374
1499GEN WB02X4693
1499BRACKET-LIGHT SHIELD
1507TRAY-GLASS
1536STOP-COOK TRAY
1537CLIP-COOK TRAY STOP
1539GEN WB02X4688
1540GEN WB02X4882
1561GEN WB01X0651
1605GEN WB36X0716
1614GEN WB02X4701
1621FUSE HOLDER
1626WB27X7 GE Oven Fuse
1643GEN WB27X0353
1648GEN WB18X0290
1654GEN WB27X0351
1655SMART BOARD AND DISPLAY
1801GEN WB15X0247
1804GEN WB55X0593
1805FRAME-DOOR-INNER
1807GEN WB02X4698
1808RUBBER-FERRITE-TOP/BOT
1808RUBBER-FERRITE-LH SIDE
1808RUBBER-FERRITE-RH BOTTOM
1808RUBBER-FERRITE-RH TOP
1808RUBBER-FERRITE-RH CENTER
1810KEY-UPPER
1810KEY-LOWER
1814TRIM-HANDLE
1815SPRING-KEY-UPPER
1815SPRING-KEY-LOWER
1817GEN WB10X0232
1822GEN WB55X0632
1825PIN-HANDLE KEY
1827FRAME-DOOR-OUTER
32767GEN WM27
32767GEN JX27
32767GEN 49-4821
32767GEN 31-0614
32767GEN 31-0613
32767GEN 31-0612
32767INSTALLATION INSTRUCTION
32767GEN 49-4753
32767TOUCH UP-CAVITY (SPRAY)
