JE69003 MICROWAVE OVEN

Products

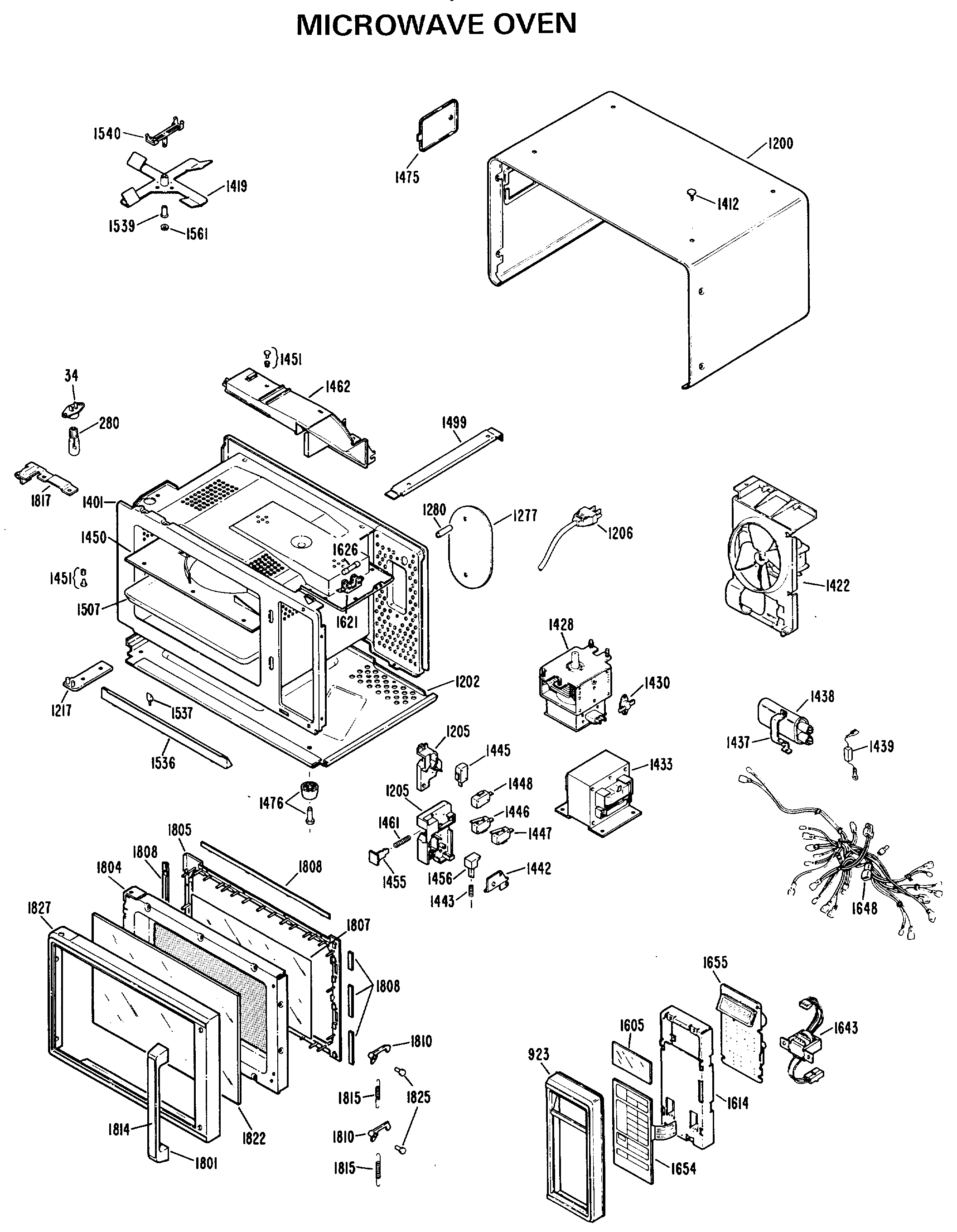

Position	Product
34	GEN WB08X0256
280	GEN WB02X4611
923	CONTROL PANEL
1200	GEN WB56X1838
1202	BASE PLATE
1205	LATCH BODY-LOWER
1205	LATCH BODY-UPPER
1206	CORD-POWER SUPPLY
1217	HINGE-LOWER
1277	GEN WB02X4683
1280	GEN WB02X4682
1401	OVEN ASSEMBLY
1412	GEN WB02X4979
1419	BLADE-STIRRER
1422	FAN MOTOR ASM
1428	GEN WB27X0348
1430	SWITCH-THERMO
1433	GEN WB27X0472
1437	GEN WB02X4677
1438	GEN WB27X0420
1439	WB27X1160 GE Microwave High Voltage Diode
1442	COVER-SLIDE
1443	SPRING-SLIDER
1446	SWITCH-DOOR SENSING
1447	GEN WB24X0443
1448	WB24X829 GE Oven Microwave Secondary Micro Switch
1450	COVER-STIRRER
1451	GEN WB02X7566
1455	GEN WB02X4681
1456	SLIDE-LATCH
1461	SPRING-SLIDER
1462	COVER-AIR
1475	GEN WB56X1839
1476	GEN WB02X7374
1476	PIN-FOOT
1499	GEN WB02X4693
1499	BRACKET-LIGHT SHIELD
1507	TRAY-GLASS
1536	STOP-COOK TRAY
1537	CLIP-COOK TRAY STOP
1539	GEN WB02X4688
1540	GEN WB02X4882
1561	GEN WB01X0651
1605	GEN WB36X0716
1614	GEN WB02X4701
1621	FUSE HOLDER
1626	WB27X7 GE Oven Fuse
1648	GEN WB18X0360
1654	GEN WB27X0351
1655	GEN WB27X0504
1801	GEN WB15X0247
1804	GEN WB55X0593
1805	FRAME-DOOR-INNER
1807	GEN WB02X4698
1808	RUBBER-FERRITE-TOP/BOT
1808	RUBBER-FERRITE-LH SIDE
1808	RUBBER-FERRITE-RH BOTTOM
1808	RUBBER-FERRITE-RH TOP
1808	RUBBER-FERRITE-RH CENTER
1810	KEY-LOWER
1810	KEY-UPPER
1814	TRIM-HANDLE
1815	SPRING-KEY-UPPER
1815	SPRING-KEY-LOWER
1817	GEN WB10X0232
1822	GEN WB55X0632
1825	PIN-HANDLE KEY
1827	FRAME-DOOR-OUTER
32767	GEN WM27
32767	GEN JX27
32767	GEN 49-4821
32767	GEN 31-0614
32767	GEN 31-0613
32767	GEN 31-0612
32767	INSTALLATION INSTRUCTION
32767	TOUCH UP-CAVITY (SPRAY)
32767	GEN 49-4753
