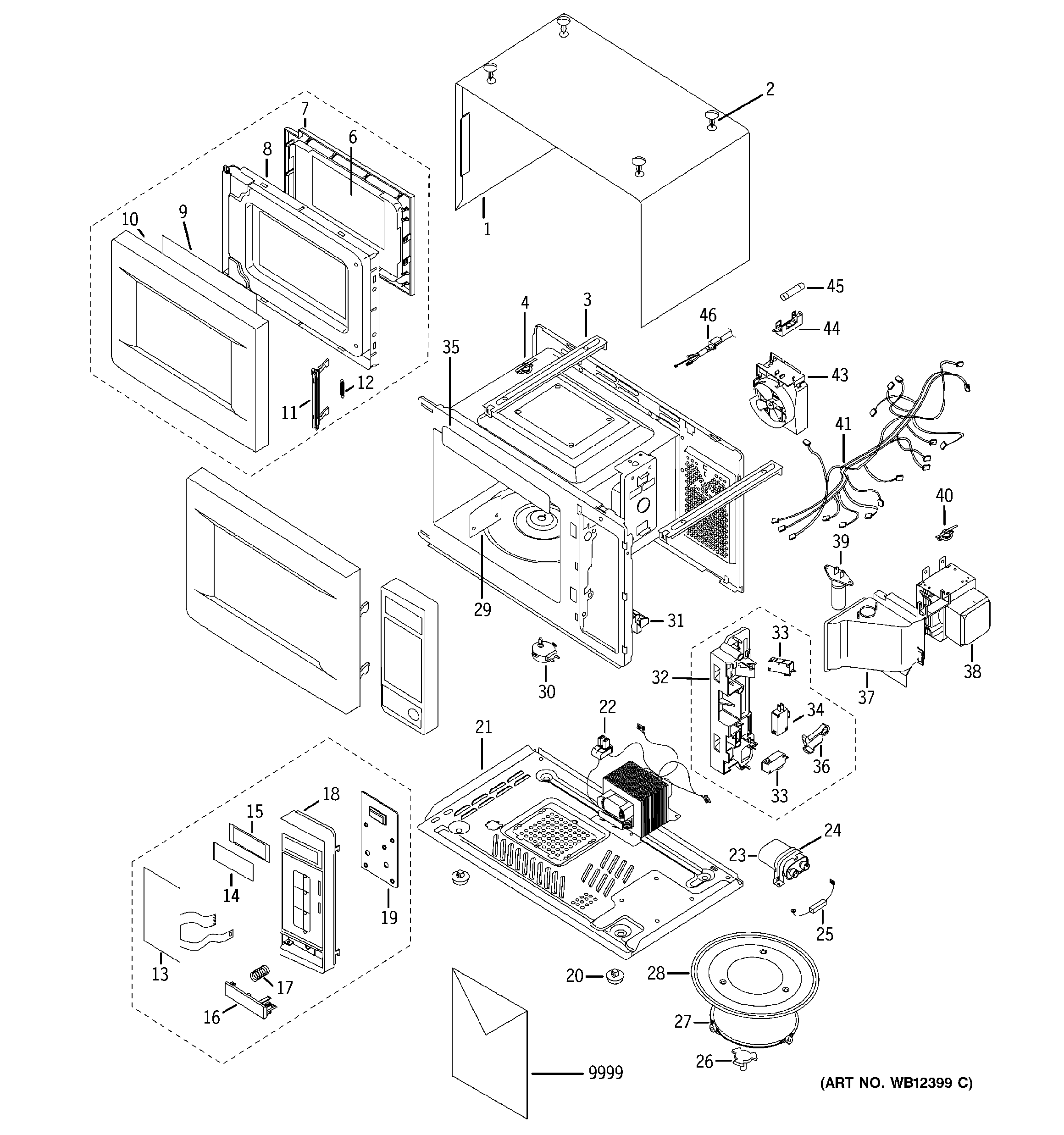

JE740GY010 MICROWAVE

Products

Position	Product
1	GEN WB56X10117
2	GEN WB02X10583
3	GEN WB06X10082
4	GEN WB27X10075
6	GEN WB06X10177
7	GEN WB55X10077
8	DOOR-E ASS'Y
9	GEN WB55X10327
10	GEN WB55X10080
11	LATCH
12	WB09X10019 GE Oven Spring Key
13	GEN WB27X10582
14	WINDOW-DISPLAY
15	GEN WB06X10081
16	GEN WB03X10050
17	GEN WB09X0308
18	GEN WB07X10176
19	ASSY PCB-MAIN
20	WB06X10194 GE Oven Foot
21	GEN WB56X10248
22	GEN WB27X10584
23	GEN WB27X10102
24	CAPACITOR BRACKET
25	WB27X10597 GE Oven Diode
26	GEN WB06X10196
27	ROLLER GUIDE ASSEMBLY
28	WB49X10097 GE Oven Cooking Tray
29	WB06X10225 GE Oven Mounting Cover
30	WB26X10024 GE Oven Motor T/T
31	WB06X10186 GE Oven Door Lever
32	LATCH – BODY
33	WB24X829 GE Oven Microwave Secondary Micro Switch
34	SWITCH-MICRO
35	GEN 49-40235
36	SWITCH – LEVER
37	GEN WB56X10249
38	WB27X10585 GE Oven Magnetron
39	LAMP 130V
40	WB20X10003 GE Microwave Thermostat
41	WIRE HARNESS "A" ASS'Y
43	MOTOR FAN ASSEMBLY
44	GEN WB06X10226
45	WB27X10454 GE Oven Fuse
46	POWER CORD ASS'Y
9999	GEN 31-20475
9999	GEN 49-40024-2
