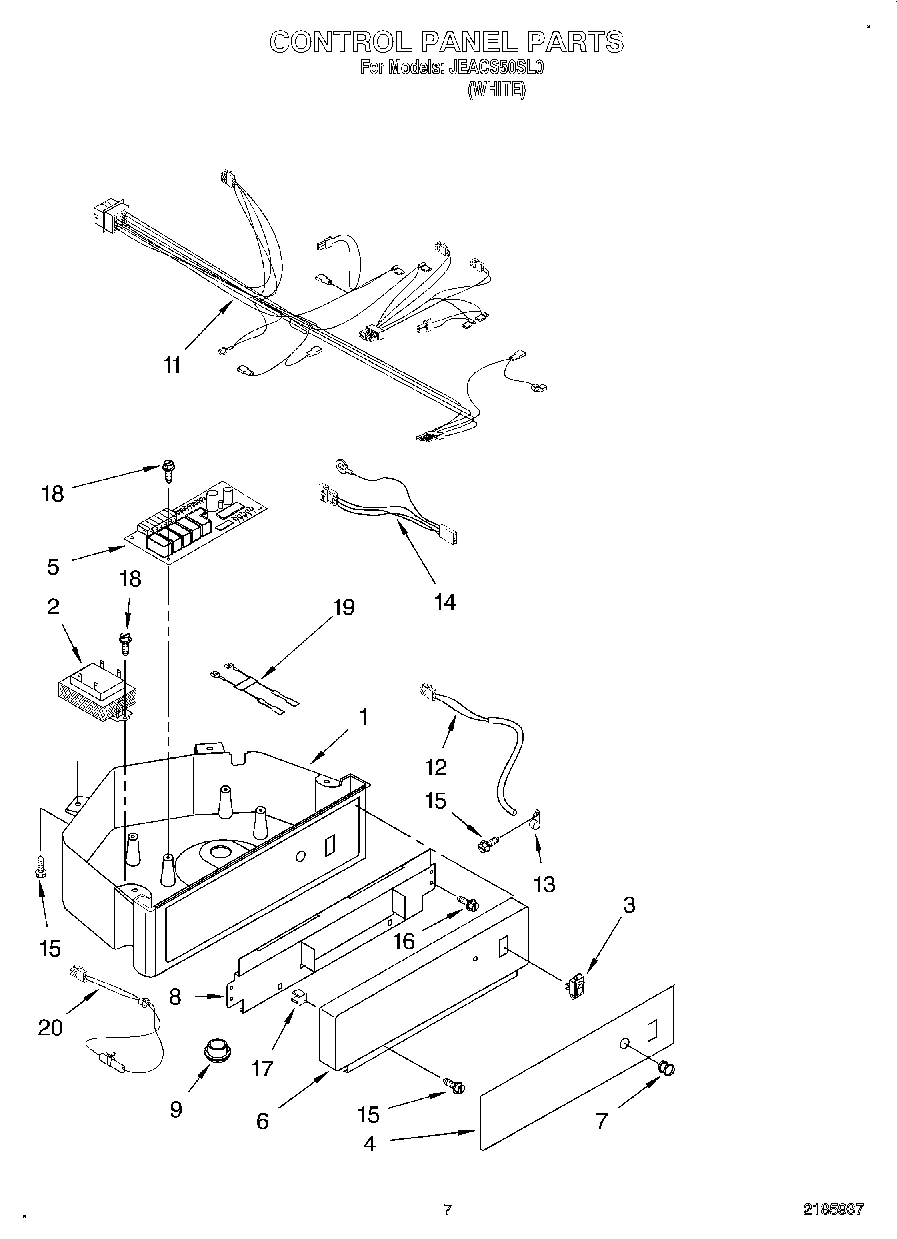

JEAC50SL0 05 – CONTROL PANELadmin2025-04-26T11:50:29+00:00JEAC50SL0 05 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Box, Control |
| 2 | Transformer |
| 3 | Switch, Rocker |
| 4 | Overlay |
| 5 | P.C. Board |
| 6 | Escutcheon |
| 7 | Lens, LED |
| 8 | Mounting Bracket, Escutcheon |
| 9 | Plug, Dome |
| 11 | Wiring Harness, Control Box |
| 12 | WPW10503764 Whirlpool Refrigerator Thermistor |
| 13 | 2185825 Whirlpool Refrigerator Clamp |
| 14 | Wiring Harness, Main to Pump, |
| 15 | WP3400884 Whirlpool Refrigerator Screw |
| 16 | WP999367 Whirlpool Refrigerator Screw |
| 17 | WP3400909 Whirlpool Refrigerator Nut |
| 18 | WP489443 Whirlpool Refrigerator Screw |
| 19 | Wiring Harness, Rocker Switch |
| 20 | Thermister, Ice Control |
