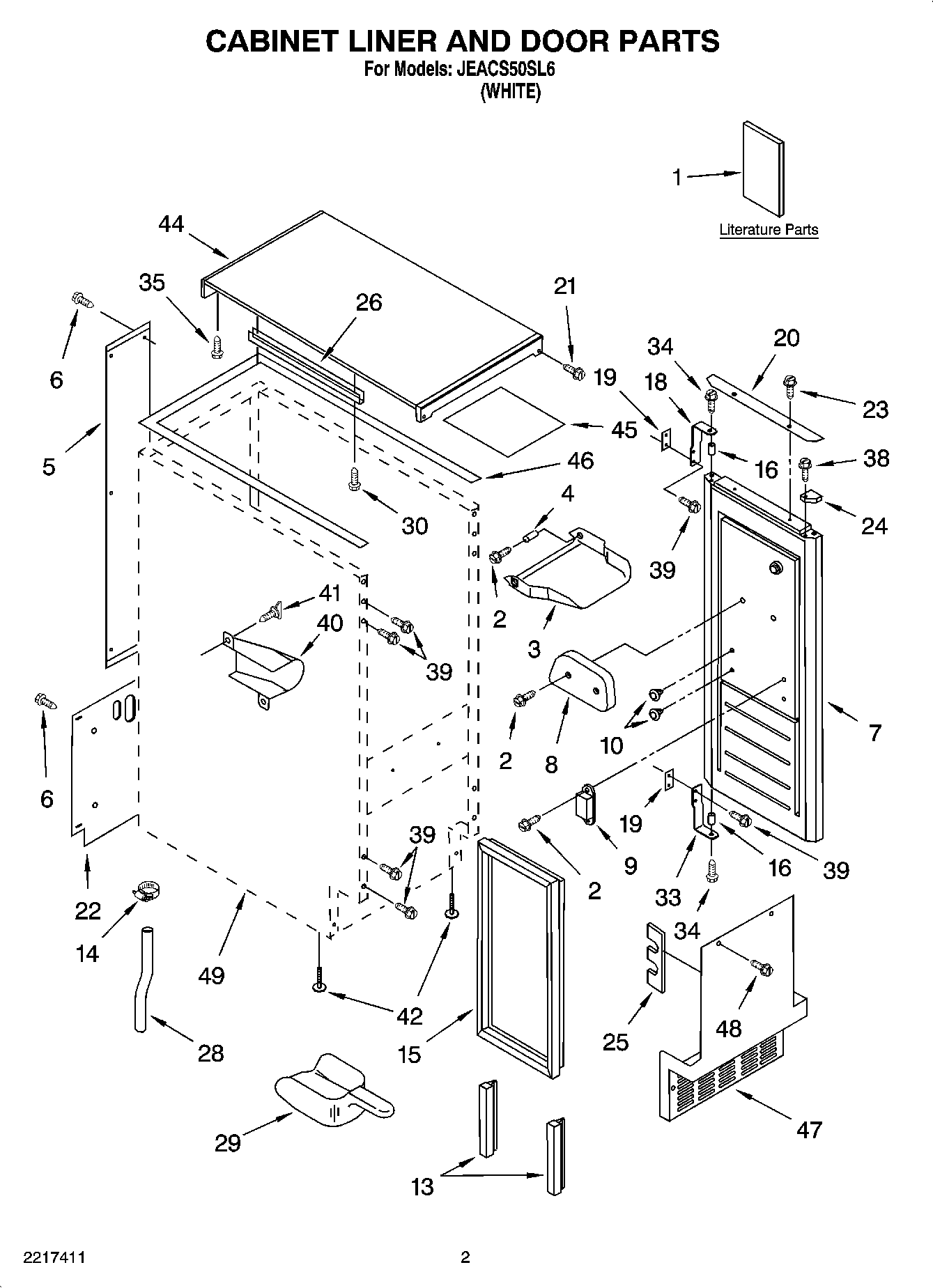

JEACS50SL6 01 – CABINET LINER AND DOOR PARTSadmin2025-04-26T11:52:05+00:00JEACS50SL6 01 – CABINET LINER AND DOOR PARTS ProductsPositionProduct1Literature Parts (Use & Care Guide)1Literature Parts (Service & Wiring Sheet)2WP3400886 Whirlpool Refrigerator Screw3BIN, DOOR42185678 Whirlpool Refrigerator Spacer52217394 Whirlpool Refrigerator Wire Cover6WP489442 Whirlpool Refrigerator Screw7Door (White)82185695 Whirlpool Refrigerator Door Cam9W11223751 Whirlpool Refrigerator Catch Assembly10WP2189000 Whirlpool Refrigerator Handle Plug132217367 Whirlpool Refrigerator Door Gasket14WP489503 Whirlpool Refrigerator Clamp15Gasket, Door162185640 Whirlpool Refrigerator Sleeve182185710 Whirlpool Refrigerator Hinge192185709 Whirlpool Refrigerator Shim20Handle, Door21Screw22WPW10136199 Whirlpool Refrigerator Unit Cover238281188 Whirlpool Refrigerator M Screw24Filler, Endcap (Left Side)24Filler, Endcap (Right Side)25W10532250 Whirlpool Refrigerator Foam Pad262185691 Whirlpool Refrigerator Channel28WP2185989 Whirlpool Refrigerator Tube29W11420408 Whirlpool Refrigerator Ice Scoop332185711 Whirlpool Refrigerator Hinge342185712 Whirlpool Refrigerator Hinge Pin35WP250830 Whirlpool Refrigerator Screw38NAMEPLATE39WP999367 Whirlpool Refrigerator Screw402185927 Whirlpool Refrigerator Holder41Thumbscrew428193716 Whirlpool Leveling Leg44Top452185690 Whirlpool Shield Assembly46W11624957 Whirlpool Refrigerator Top Gasket47WP2185571W Whirlpool Refrigerator Grille48WP489474 Whirlpool Refrigerator Screw49876370 Whirlpool Refrigerator Insulation49WP503695 Whirlpool Refrigerator Sealer49WP505587 Whirlpool Refrigerator Sealer49978026 Whirlpool Refrigerator Primary Valve49978027 Whirlpool Refrigerator Primary Valve49978030 Whirlpool Refrigerator Valve49WP978025 Whirlpool Refrigerator Valve49W11179302 Whirlpool Ice Machine Cleaner49VALVE, ACCESS (1/2``)49VALVE, ACCESS (5/8``)49WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive49212643 Whirlpool Refrigerator Permagum Sealer
