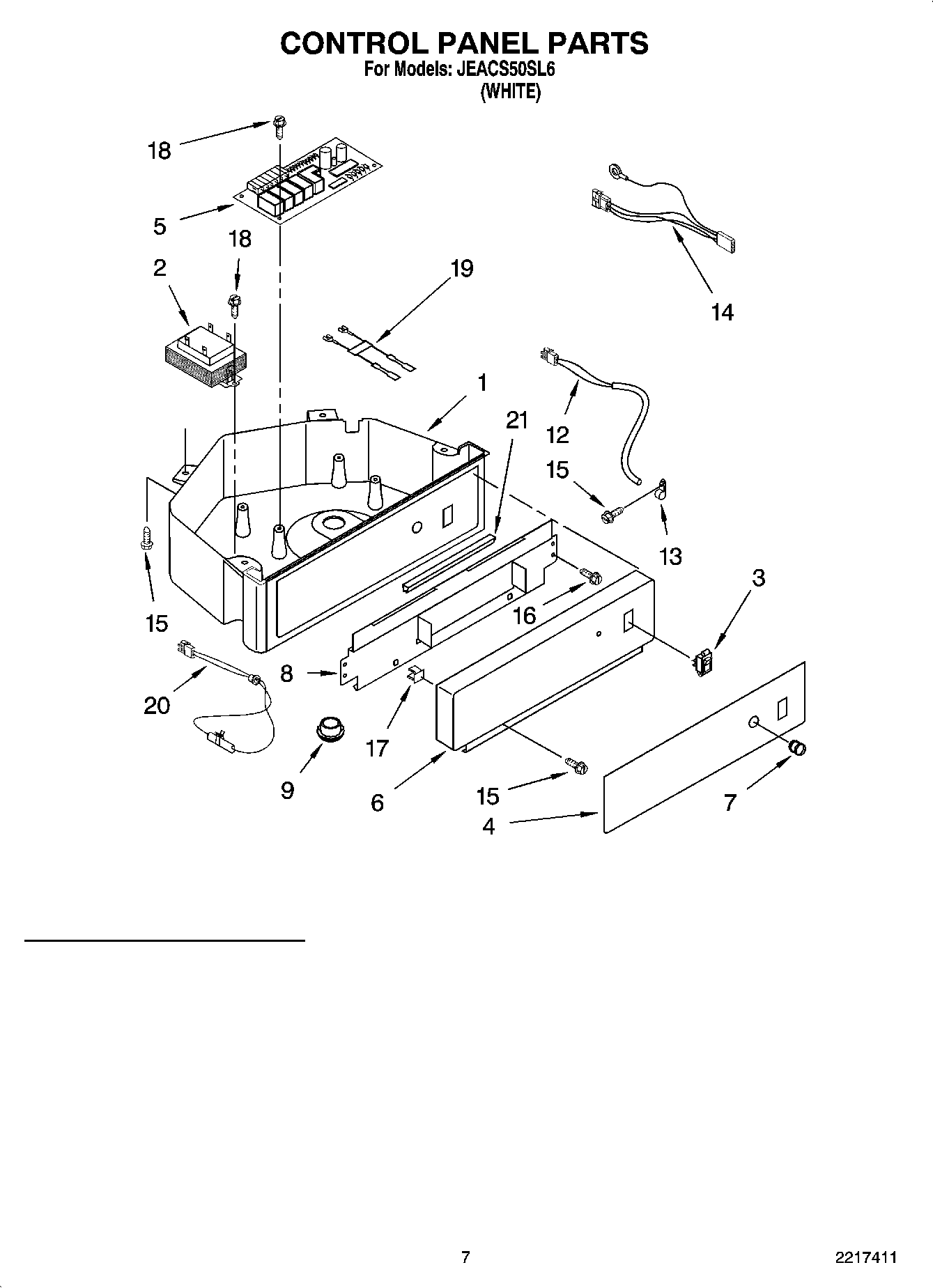

JEACS50SL6 04 – CONTROL PANEL PARTS

Products

Position	Product
1	Box, Control
2	Transformer
3	Switch, Rocker
4	Overlay
5	P.C. Board
6	Escutcheon
7	Lens, LED
8	Mounting Bracket, Escutcheon
9	Plug, Dome
12	WPW10503764 Whirlpool Refrigerator Thermistor
13	2185825 Whirlpool Refrigerator Clamp
14	Wiring Harness, Main to Pump,
15	WP3400884 Whirlpool Refrigerator Screw
16	WP999367 Whirlpool Refrigerator Screw
17	WP3400909 Whirlpool Refrigerator Nut
18	WP489443 Whirlpool Refrigerator Screw
19	Wiring Harness, Rocker Switch
20	Thermister, Ice Control
21	Grommet, Edge
