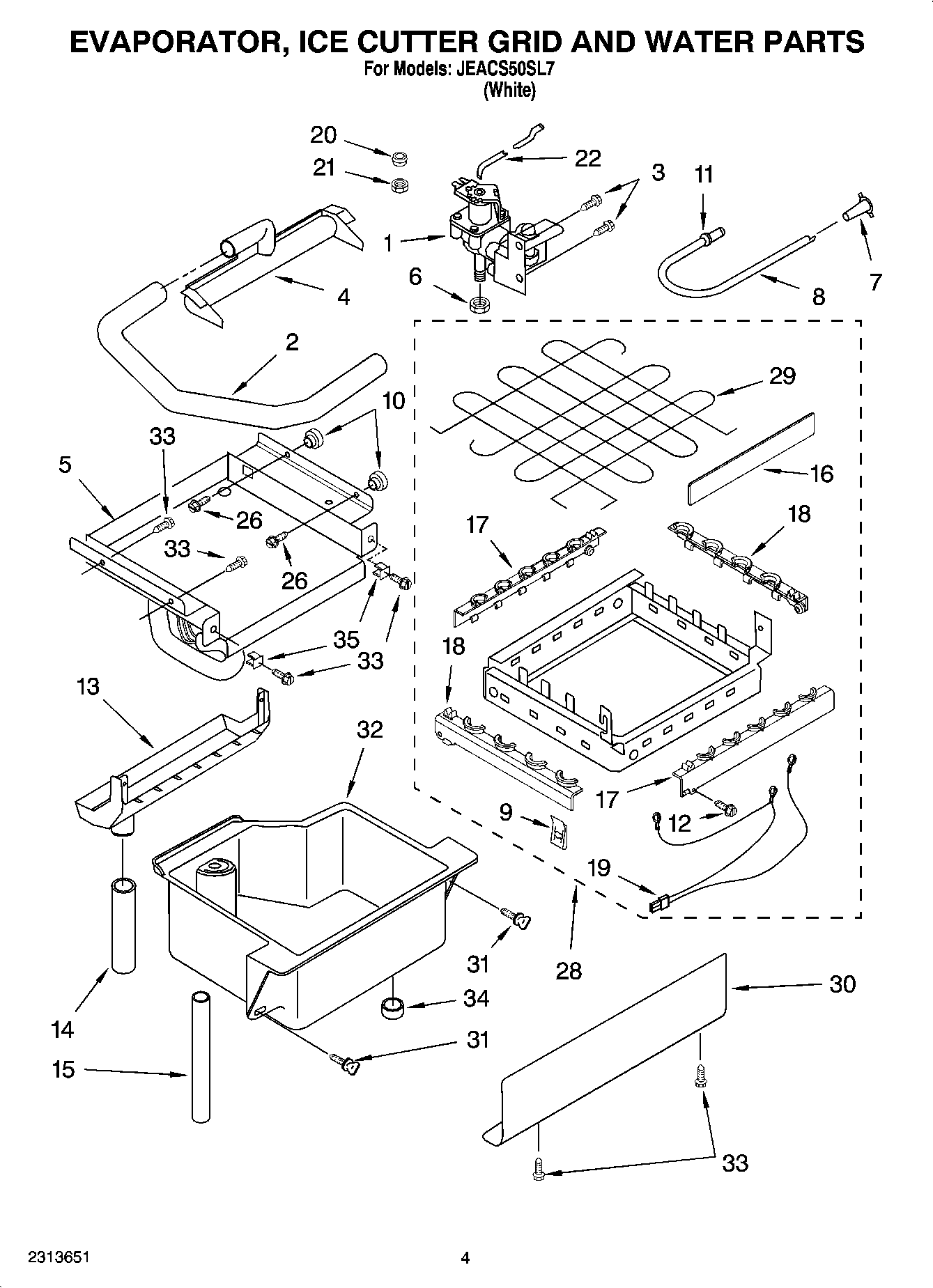

JEACS50SL7 02 – EVAPORATOR ICE CUTTER GRID AND WATER PARTS

Products

Position	Product
1	W10801996 Whirlpool Water Inlet Valve
3	WP488163 Whirlpool Refrigerator Screw
4	W10863947 Whirlpool Refrigerator Tube
5	WPW10218037 Whirlpool Refrigerator Evaporator
6	WP627018 Whirlpool Refrigerator Nut
7	4387491 Whirlpool Refrigerator Insert
8	W10823511 Whirlpool Refrigerator Water Tube
9	488660 Whirlpool Refrigerator Nut
10	836667 Whirlpool Refrigerator Spacer
11	Fastener, Pushnut
12	WP489443 Whirlpool Refrigerator Screw
13	WP2185625 Whirlpool Refrigerator Water Pan
14	WP2185626 Whirlpool Refrigerator Hose
15	WP2313890 Whirlpool Overflow Hose
16	2313604 Whirlpool Refrigerator Guide
17	Bracket, Front and Rear
18	8201791 Whirlpool Air Conditioner Spacer
19	2185681 Whirlpool Refrigerator Harness
20	WP487627 Whirlpool Refrigerator Sleeve
21	WP245183 Whirlpool Nut
22	Tube
26	WP3400886 Whirlpool Refrigerator Screw
28	WP2313637 Whirlpool Cutting Grid Assembly
29	GRID
30	2185570 Whirlpool Refrigerator Panel
31	Thumbscrew
32	Reservoir, Water
33	WP3400884 Whirlpool Refrigerator Screw
34	WP2185696 Whirlpool Cap
35	WP3400909 Whirlpool Refrigerator Nut
