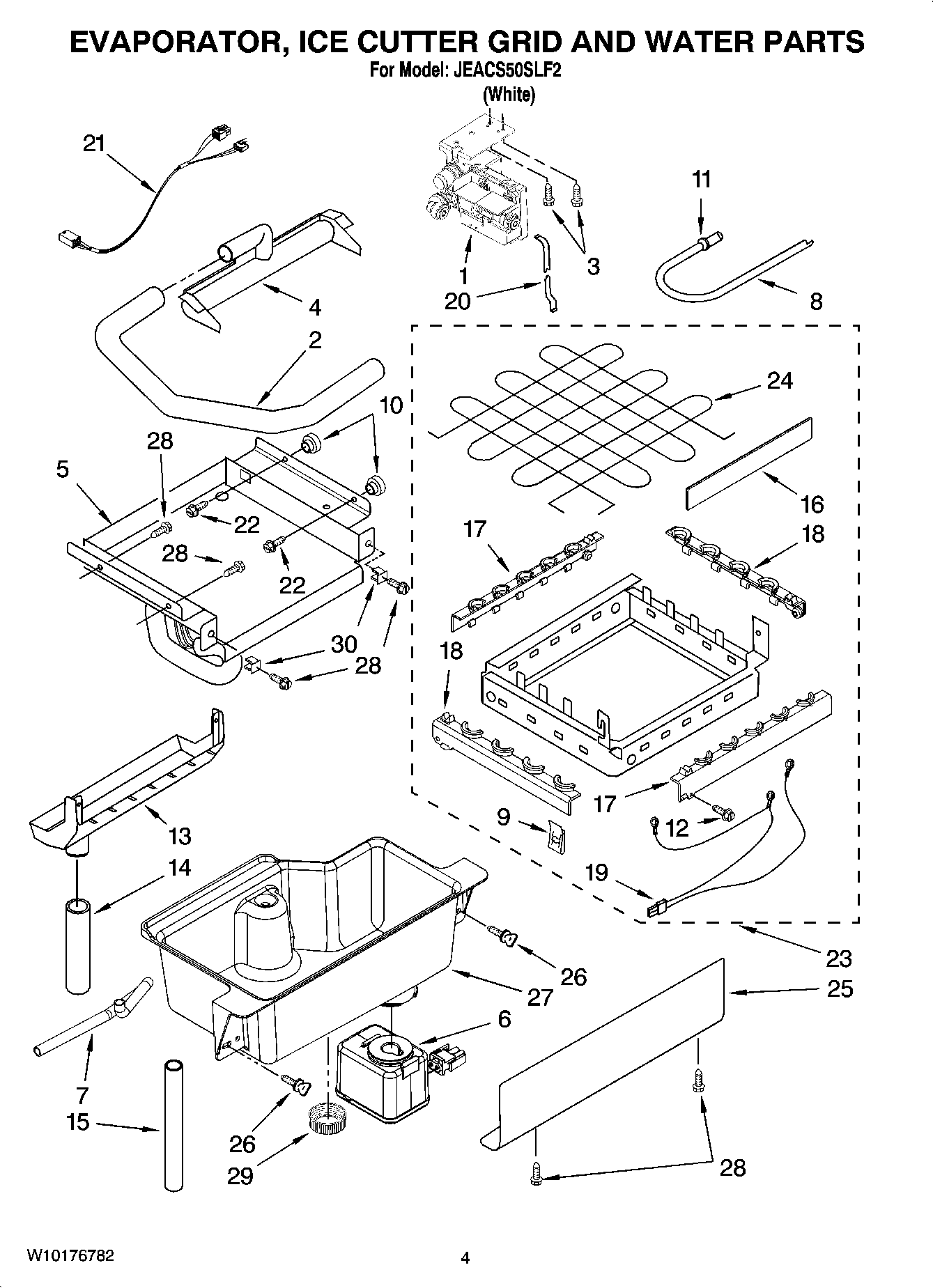

JEACS50SLF2 02 – EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

JEACS50SLF2 02 – EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

Written by

in

JEACS50SLF2 02 – EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

Products

PositionProduct
1WPW10217917 Whirlpool Refrigerator Valve
3WP488163 Whirlpool Refrigerator Screw
4W10863947 Whirlpool Refrigerator Tube
5WPW10218037 Whirlpool Refrigerator Evaporator
6W11566407 Whirlpool Pump
7TUBE, RESERVOIR PUMP
8W10823511 Whirlpool Refrigerator Water Tube
9488660 Whirlpool Refrigerator Nut
10836667 Whirlpool Refrigerator Spacer
11Fastener, Pushnut
12WP489443 Whirlpool Refrigerator Screw
13WP2185625 Whirlpool Refrigerator Water Pan
14WP2185626 Whirlpool Refrigerator Hose
15WP2313890 Whirlpool Overflow Hose
162313604 Whirlpool Refrigerator Guide
17Bracket, Front and Rear
188201791 Whirlpool Air Conditioner Spacer
192185681 Whirlpool Refrigerator Harness
20TUBE
21WP2310169 Whirlpool Refrigerator Harness
22WP3400886 Whirlpool Refrigerator Screw
23WP2313637 Whirlpool Cutting Grid Assembly
24GRID
252185570 Whirlpool Refrigerator Panel
26Thumbscrew
27WP2324334 Whirlpool Refrigerator Water Pan
28WP3400884 Whirlpool Refrigerator Screw
29WP2185696 Whirlpool Cap
30WP3400909 Whirlpool Refrigerator Nut
