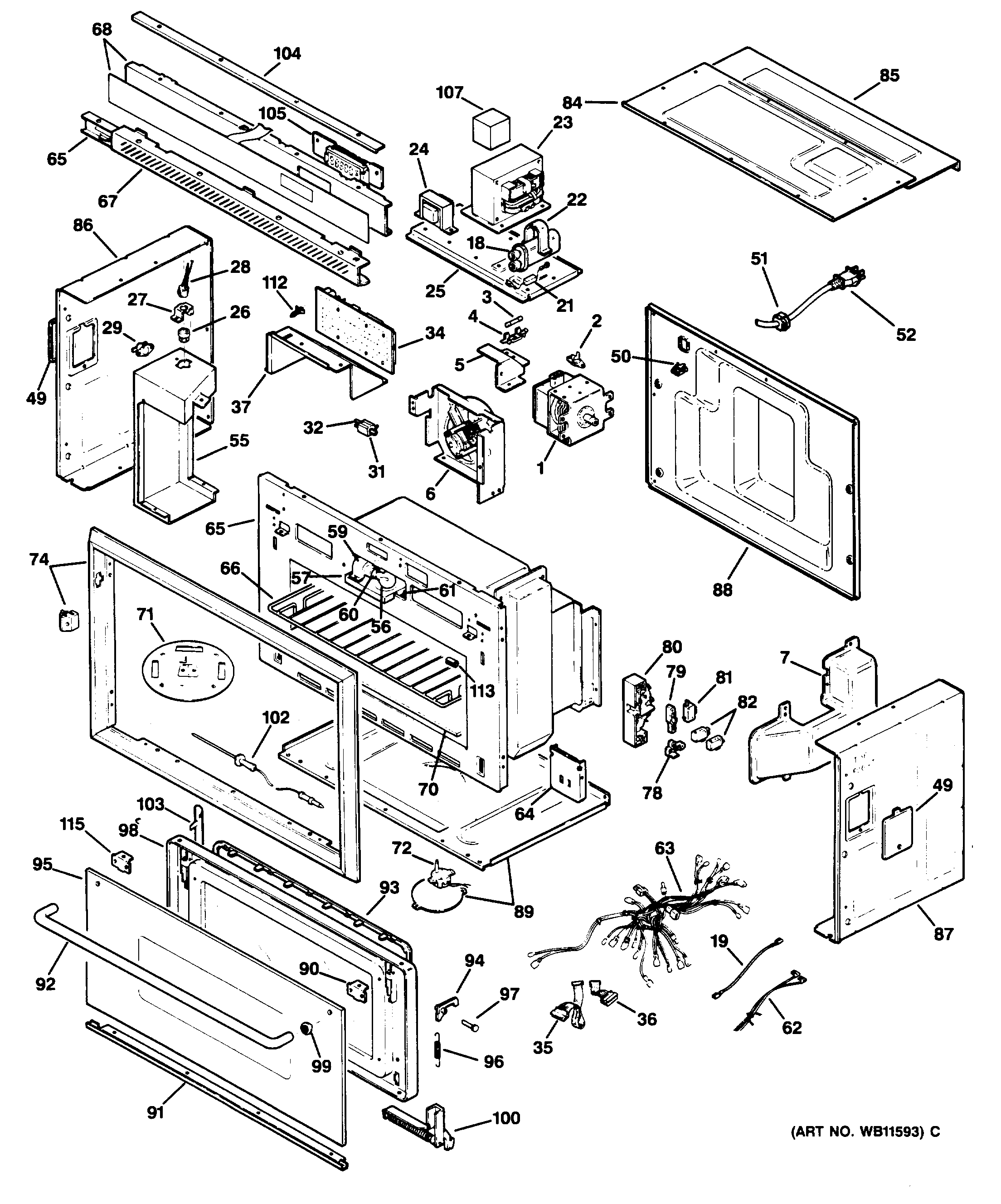

JEB1050WV01 0

Products

Position	Product
1	WB27X10249 GE Oven Magnetron
2	GEN WB24X0808
3	WB27X7 GE Oven Fuse
4	GEN WB06X0234
5	GEN WB06X0339
6	MOTOR-FAN
7	GUIDE-AIR
12	COVER-DAMPER
18	WB27X10011 GE Microwave Capacitor
19	WIRE LEAD-A
20	GEN WB18X0483
21	WB27X1160 GE Microwave High Voltage Diode
22	GEN WB06X0343
23	WB27X600 GE Oven HV Transformer
24	GEN WB27X1042
25	BRACKET-HVT
26	WB27X1170 GE Oven Gas Sensor
27	BRACKET-COVER
28	WIRE HARNESS-H
29	GEN WB24X0807
31	GEN WB08X0302
32	WIRE HARNESS-G
34	GEN WB27X1057
35	CONNECTOR ASSY-BN(E)
37	GEN WB06X0346
49	COVER-OVEN LAMP
50	GEN WB02X9330
51	GEN WB01X1474
52	ASSY POWER CORD
53	BASE-PLATE
55	GEN WB06X0348
56	OVEN-LAMP
57	GEN WB04X0144
58	BRACKET-LAMP
59	HOLDER-LAMP
60	GEN WB08X0299
61	GEN WB36X0867
62	WIRE HARNESS-B
63	GEN WB18X0548
64	BRACKET-HINGE
65	GEN WB04X0162
66	GEN WB48X0227
67	GEN WB07X1996
68	GEN WB07X2070
70	GEN WB49X0672
71	ASSY-BLADE STIRRER
72	GEN WB26X0154
73	WIRE HARNESS-C
74	GEN WB07X1978
78	LEVER-SLIDER-A
79	LEVER-SLIDER-B
80	GEN WB04X0151
81	WB24X829 GE Oven Microwave Secondary Micro Switch
84	CABINET-UPP-A
85	CABINET-UPP-B
86	CABINET-L
87	CABINET-R
88	GEN WB53X0303
89	GEN WB53X0304
90	GEN WB14X0197
91	GEN WB04X0163
92	HANDLE, DOOR – WHITE
93	DOOR-C
94	GEN WB04X0154
95	OUTER DOOR GLASS – WHITE
96	SPRING-KEY
97	PIN-DOOR KEY
98	GEN WB55X0832
99	GEN WB04X0187
100	GEN WB04X0156
100	GEN WB04X0158
102	GEN WB20X0160
103	COVER-SLOT
104	GEN WB04X0176
105	ASSY PCB SUB
107	GEN WB01X1485
112	WB4X175 GE Oven Printed Circuit Board Support
113	WB4X174 GE Oven Rack Spacer
115	GEN WB14X0196
9999	GEN 49-8628
9999	GEN 31-20088-B
9999	GEN 49-8364
9999	GEN 31-20088
