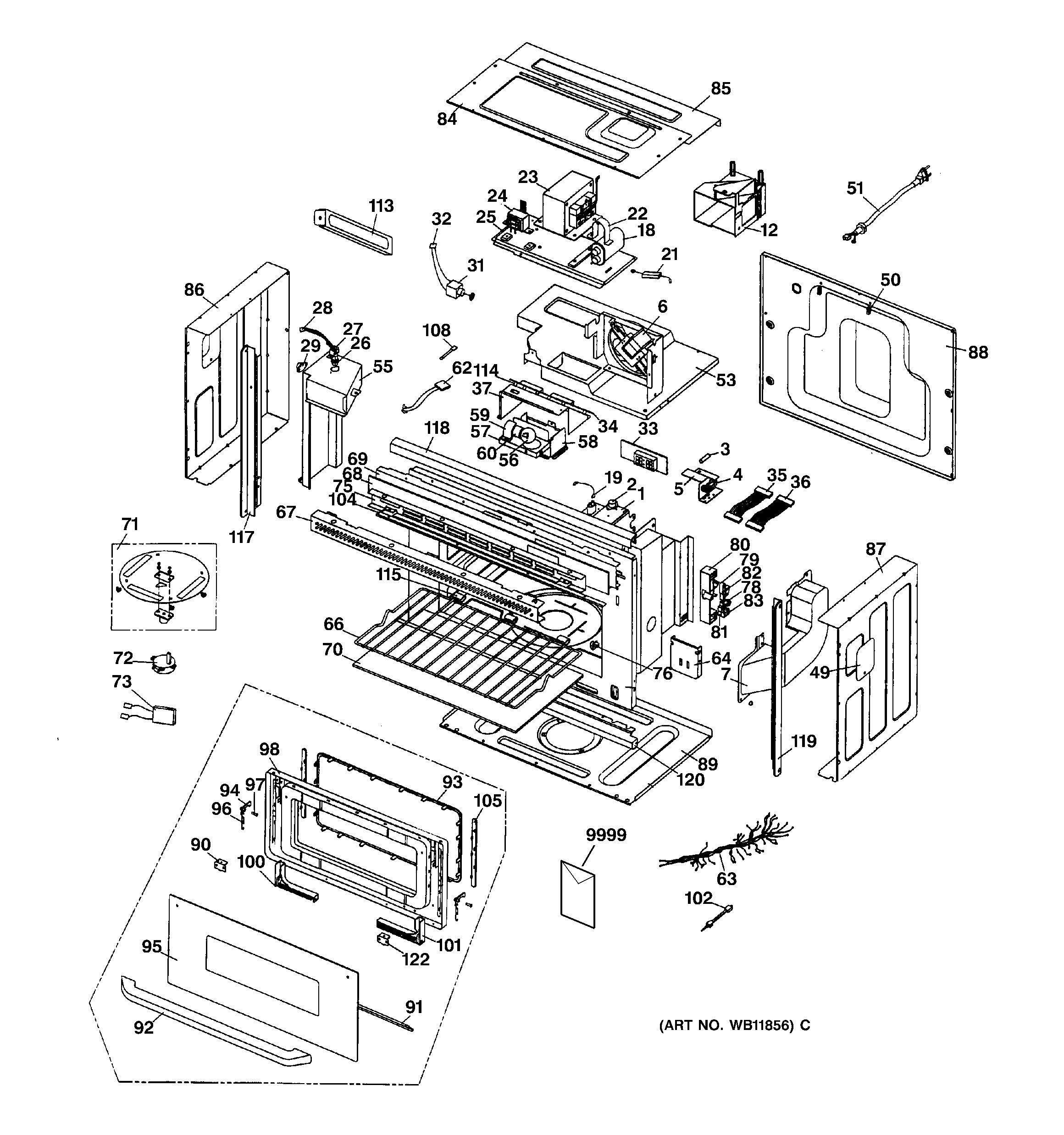

JEB1055WB01 0

Products

Position	Product
1	WB27X10089 GE Oven Magnetron
2	GEN WB24X10041
3	WB27X10454 GE Oven Fuse
4	GEN WB06X10005
5	GEN WB06X0339
6	MOTOR-FAN
7	GUIDE-AIR
12	COVER-DAMPER
18	GEN WB27X10296
19	WIRE LEAD-A
21	WB27X10597 GE Oven Diode
22	GEN WB06X10200
23	WB27X600 GE Oven HV Transformer
24	GEN WB27X1109
25	BRACKET-HVT
26	WB24X799 GE Oven Gas Sensor
27	BRACKET-COVER
28	WIRE HARNESS-H
29	GEN WB24X0807
31	GEN WB08X0302
32	WIRE HARNESS-G
33	ASSY PCB SUB
34	ASSY PCB
35	CONNECTOR ASSY-BN(E)
37	GEN WB06X10201
49	COVER-OVEN LAMP
50	GEN WB02X9330
51	ASSY POWER CORD
53	BASE-PLATE
55	GEN WB06X10202
56	WB36X10003 GE Oven 40W 130V Light Bulb
57	GEN WB04X0144
58	BRACKET-LAMP
59	HOLDER-LAMP
60	RECEPTACLE-LAMP-COOK TOP
62	WIRE HARNESS-B
63	GEN WB18X0548
64	BRACKET-HINGE
66	GEN WB48X0227
67	GEN WB07X10238
68	GEN WB27X10299
69	GEN WB04X0148
70	GEN WB49X0672
71	ASSY-BLADE STIRRER
72	GEN WB26X0154
75	GEN WB04X0162
76	GEN WB06X10203
78	LEVER-SLIDER-A
79	LEVER-SLIDER-B
80	GEN WB04X0151
81	SWITCH-PRIMARY/SECONDARY
82	GEN WB24X10042
83	GEN WB24X0806
84	CABINET-UPP-A
85	CABINET-UPP-B
86	CABINET-L
87	CABINET-R
88	GEN WB53X0303
89	GEN WB53X0304
90	GEN WB14X0196
91	GEN WB04X0165
92	HANDLE, DOOR – WHITE
93	DOOR-C
94	GEN WB04X0154
95	GEN WB36X10119
96	SPRING-KEY
97	PIN-DOOR KEY
98	GEN WB55X10263
100	GEN WB04X0156
101	GEN WB04X0158
102	GEN WB20X0160
104	GEN WB04X10010
105	COVER-SLOT
108	WIRE HARNESS-C
113	GEN WB04X10008
114	WB4X175 GE Oven Printed Circuit Board Support
117	TRIMMER-SIDE-L
118	TRIMMER-UPPER
119	TRIMMER-SIDE-R
120	GEN WB07X10242
121	SCR 8-18 AB PHR 1/2 S
122	GEN WB14X0197
9999	GEN 31-20088
9999	GEN 49-40096
