JEB1090WV02 0

JEB1090WV02 0

Written by

in

JEB1090WV02 0

Products

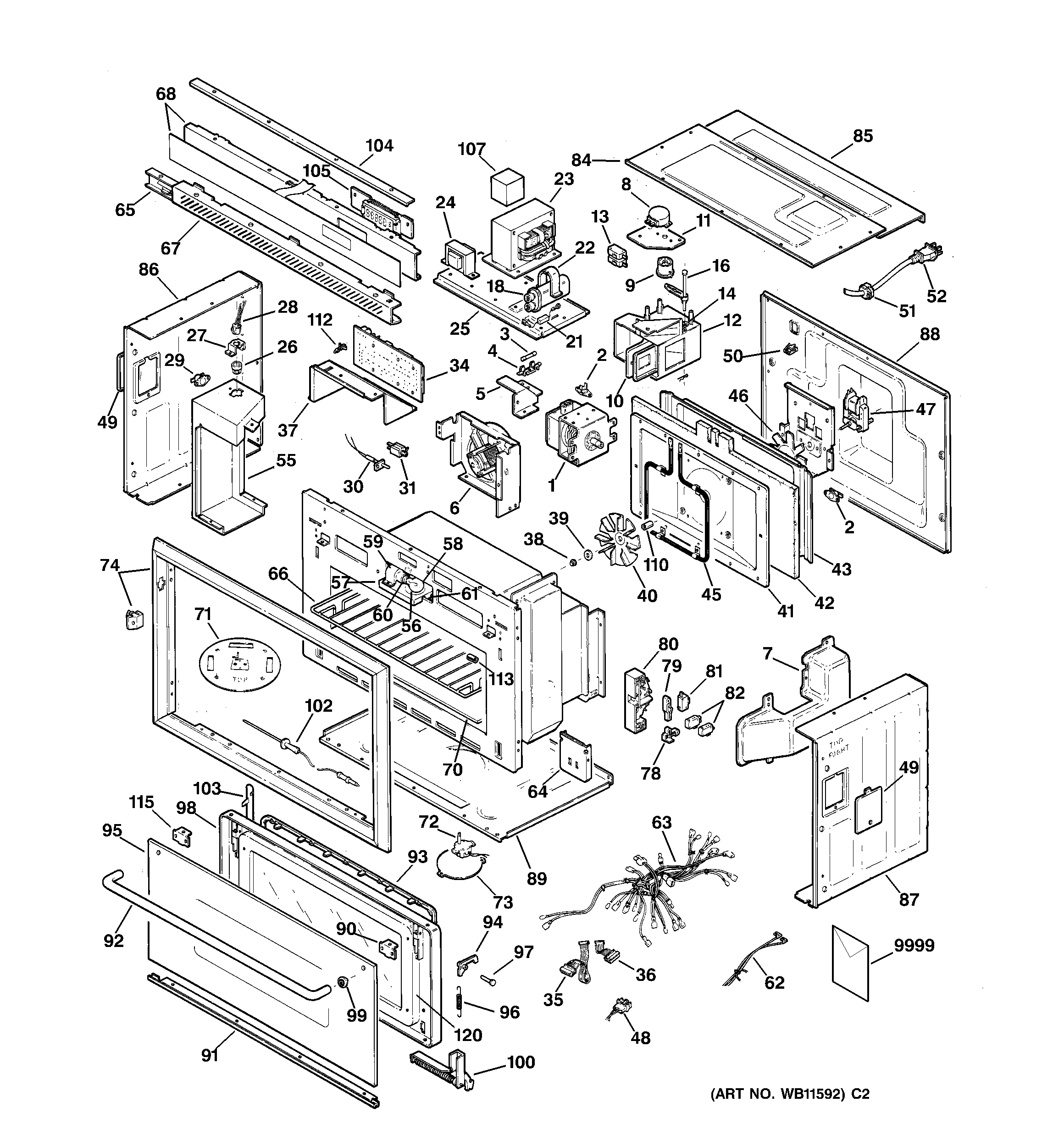

Position	Product
1	WB27X10249 GE Oven Magnetron
2	GEN WB24X0808
3	WB27X7 GE Oven Fuse
4	GEN WB06X0234
5	GEN WB06X0339
6	MOTOR-FAN
7	GUIDE-AIR
8	MOTOR-SYNCHRONOUS
9	DAMPER-CAM
10	DAMPER-PLATE
11	BRACKET-DAMPER MOTOR
12	COVER-DAMPER
13	GEN WB24X0806
14	LEVER-DAMPER
16	PIN-DAMPER
18	GEN WB27X10234
21	WB27X1160 GE Microwave High Voltage Diode
22	GEN WB06X0343
23	WB27X600 GE Oven HV Transformer
24	GEN WB27X1042
25	BRACKET-HVT
26	WB27X1170 GE Oven Gas Sensor
27	BRACKET-COVER
28	WIRE HARNESS-H
29	GEN WB24X0807
30	ASSY-THERMOSTAT
31	GEN WB08X0302
34	GEN WB27X1056
35	CONNECTOR ASSY-BN(E)
37	GEN WB06X0346
38	GEN WB01X1416
39	WB1X1483 GE Washer Control Fan
40	BLADE-FAN
41	ASSY-CASE(A)
42	GEN WB53X0294
43	CASE-CONV-B
45	GEN WB44X0239
46	BLADE-FAN
47	MOTOR-SYNCHRONOUS
48	WIRE HARNESS-D
49	COVER-OVEN LAMP
50	GEN WB02X9330
51	GEN WB01X1474
52	ASSY POWER CORD
55	GEN WB06X0348
56	OVEN-LAMP
57	GEN WB04X0144
58	BRACKET-LAMP
59	HOLDER-LAMP
60	GEN WB08X0275
61	GEN WB36X0867
62	WIRE HARNESS-B
63	WIRE HARNESS-A
64	BRACKET-HINGE
65	GEN WB04X0162
66	RACK-WIRE
67	GEN WB07X1996
68	GEN WB07X2068
70	ASSY-TRAY CERAMIC
71	ASSY-BLADE STIRRER
72	GEN WB26X0154
73	WIRE HARNESS-C
74	GEN WB07X1978
78	LEVER-SLIDER-A
79	LEVER-SLIDER-B
80	GEN WB04X0151
81	WB24X829 GE Oven Microwave Secondary Micro Switch
84	CABINET-UPP-A
85	CABINET-UPP-B
86	CABINET-L
87	CABINET-R
88	GEN WB53X0303
89	GEN WB53X0304
90	GEN WB14X0197
91	GEN WB04X0163
92	HANDLE, DOOR – WHITE
93	DOOR-C
94	GEN WB04X0154
95	OUTER DOOR GLASS – WHITE
96	SPRING-KEY
97	PIN-DOOR KEY
98	ASSY DOOR-E
99	GEN WB04X0187
100	ASSY-LATCH(R)
100	ASSY-LATCH(L)
102	SENSOR-THERMISTOR
103	COVER-SLOT
104	GEN WB07X1982
105	ASSY PCB SUB
107	GEN WB01X1485
110	BUSH
112	WB4X175 GE Oven Printed Circuit Board Support
113	WB4X174 GE Oven Rack Spacer
115	GEN WB14X0196
120	GEN WB53X0305
9999	GEN 49-8629
9999	GEN 49-8364
9999	GEN 31-20088
9999	GEN 31-20088-A
