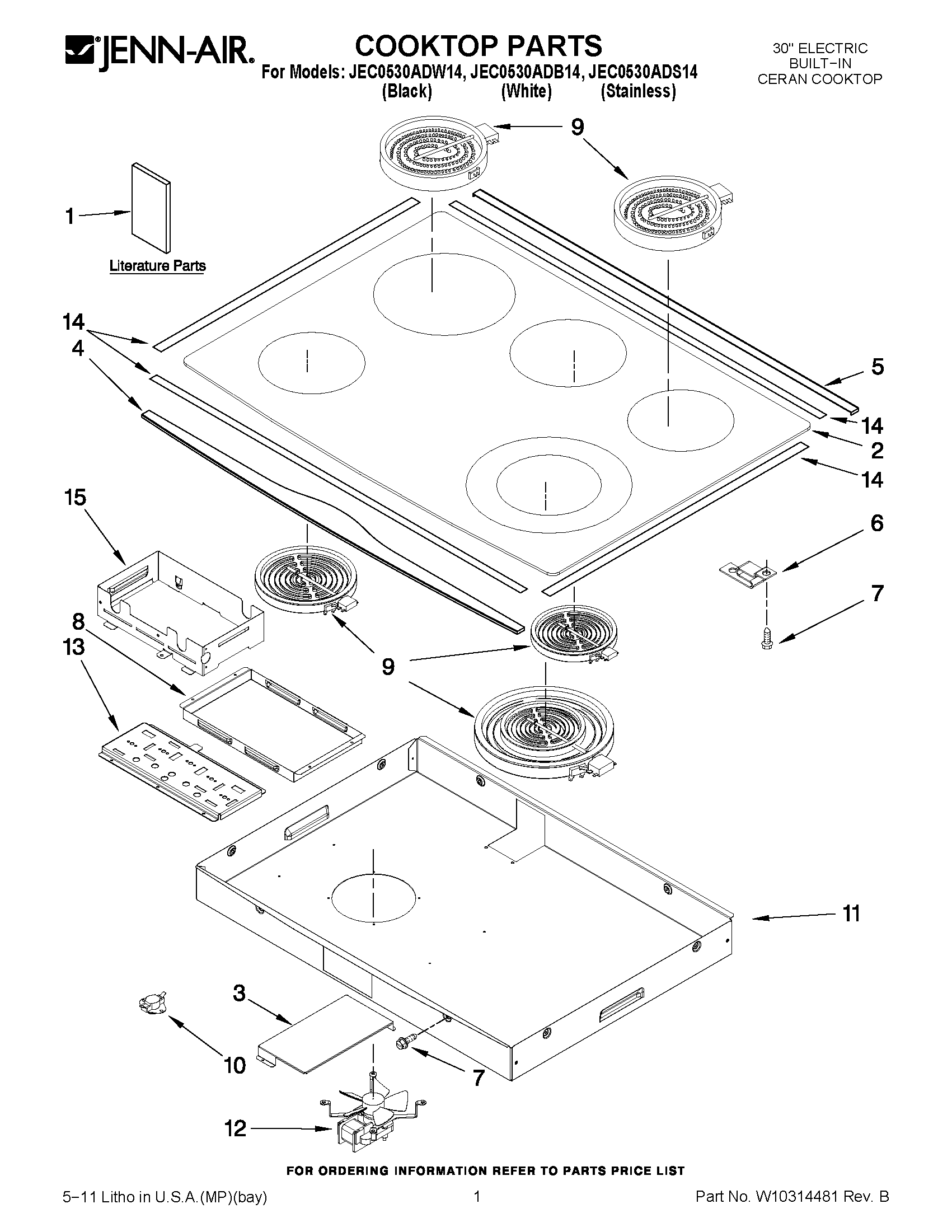

JEC0530ADB14 01 – COOKTOP PARTS

JEC0530ADB14 01 – COOKTOP PARTS

Written by

in

JEC0530ADB14 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10267677
1MAY W10259196
1MAY W10259194
1INSTALLATION INSTRUCTIONS
1TIPS, SAFE COOKING (FRENCH)
2MAY 7920P218-60
2MAY 7920P217-60
3MAY 3604F406-51
4MAY W10168876
5TRIM,COOKTOP SS MODEL ONLY (REAR)
6SUPPORT, ELEMENT
7MAY 7101P426- 60
8COVER, SWITCH
9ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
9MAY W10259199
9MAY W10259200
9MAY 7406P420-60
10MAY 7403P227-60
11MAY W10215431
12MAY 7427P087-60
13BOARD, CONTROL
14MAY 8270P188-60
15BAFFLE, HEAT SHIELD
