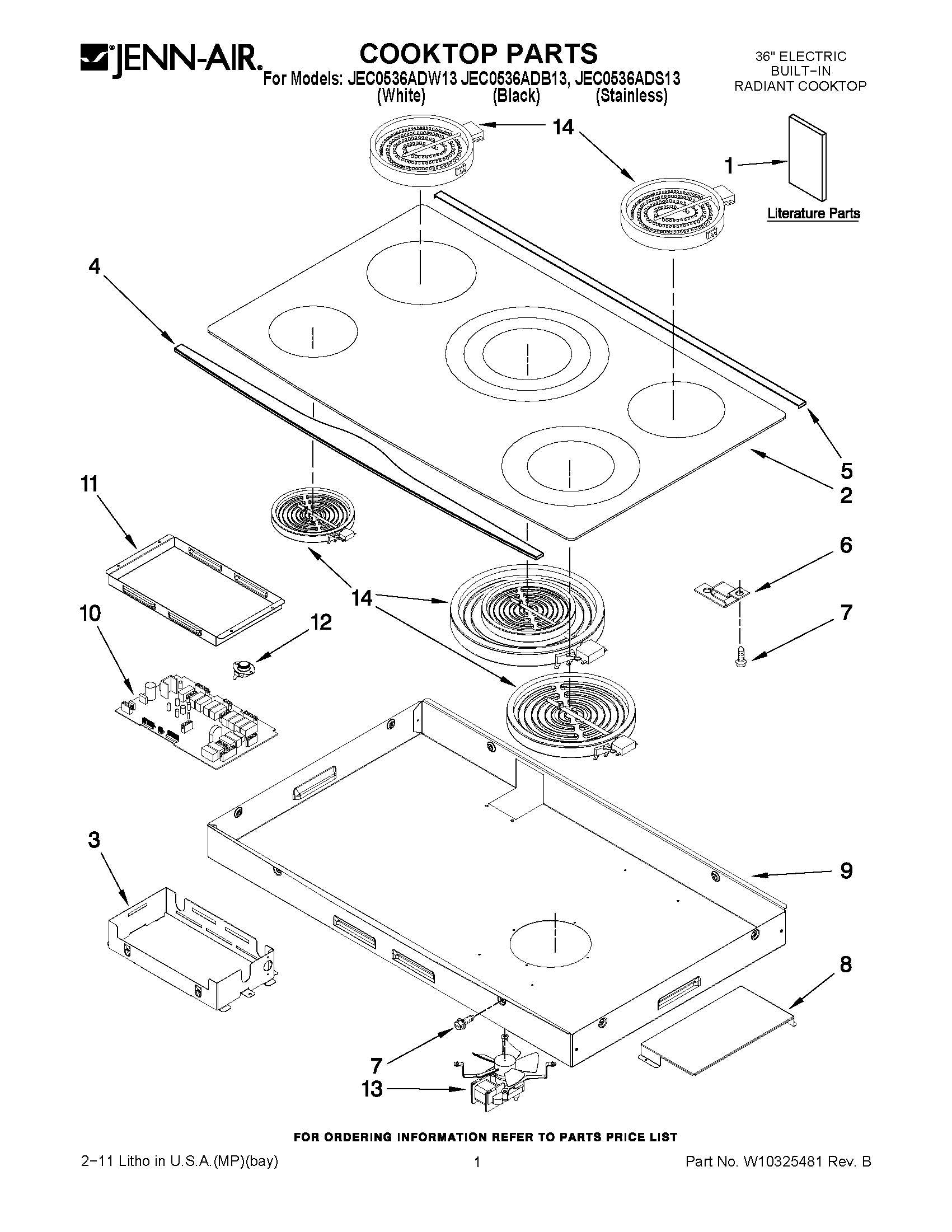

JEC0536ADB13 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10259198
1MAY W10259197
1MAY W10267677
1INSTALLATION INSTRUCTIONS
2MAY 7920P220-60
2MAY 7920P219-60
3MAY 3601F369-51
4MAY W10168880
5TRIM, COOKTOP FOR SS MODEL ONLY (STAINLESS) (REAR)
6SUPPORT, ELEMENT
7MAY 7101P426- 60
8MAY 3604F406-51
9MAY 4011F516-51
10BOARD, CONTROL
11COVER, SWITCH
12MAY 7403P227-60
13MAY 7427P087-60
14ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
14MAY W10260350
14MAY W10259199
14ELEMENT, SURFACE (LF)
14MAY 7406P408-60
