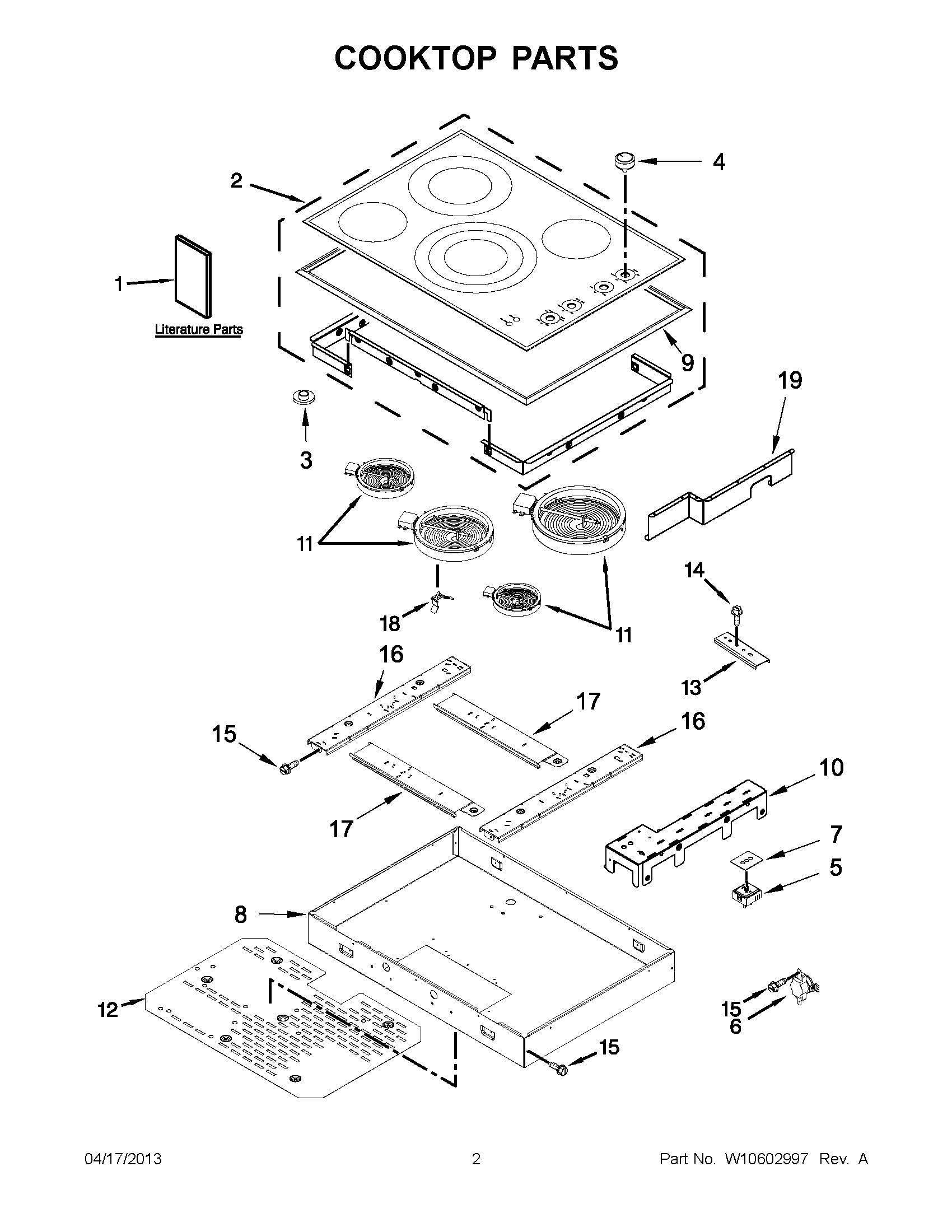

JEC3430BB00 01 – COOKTOP PARTSadmin2025-04-26T09:28:39+00:00JEC3430BB00 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 1 | MAY W10448458 |
| 1 | MAY W10550660 |
| 1 | MAY W10574205 |
| 1 | INSTRUCTIONS, UNDERCOUNTER INSTALL |
| 2 | MAY W10422110 |
| 2 | MAY W10570695 |
| 3 | GROMMET, KNOB (STAINLESS) |
| 3 | GROMMET, KNOB (BLACK) |
| 4 | KNOB, CONTROL (STAINLESS) |
| 4 | KNOB, CONTROL (BLACK) |
| 5 | SWITCH, INFINITE (RF) |
| 5 | SWITCH, INFINITE (LEFT REAR) |
| 5 | SWITCH, INFINITE (LEFT FRONT) |
| 5 | SWITCH, INFINITE (LEFT REAR) |
| 6 | MAY W10464566 |
| 7 | MAY 3183956 |
| 8 | BOX-BURNER |
| 9 | MAY W10422108 |
| 10 | MAY W10484349 |
| 11 | ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR) |
| 11 | ELEMENT (1300W) (LEFT REAR) |
| 11 | ELEMENT (3000/1400W) (LEFT FRONT) |
| 11 | ELEMENT (3000W) (LEFT FRONT) |
| 12 | MAY W10422067 |
| 13 | MAY 4455917 |
| 14 | MAY 3400093 |
| 15 | MAY 7101P426- 60 |
| 16 | MAY W10457917 |
| 17 | MAY W10311790 |
| 18 | SPRING, ELEMENT |
| 19 | MAY W10311796 |
