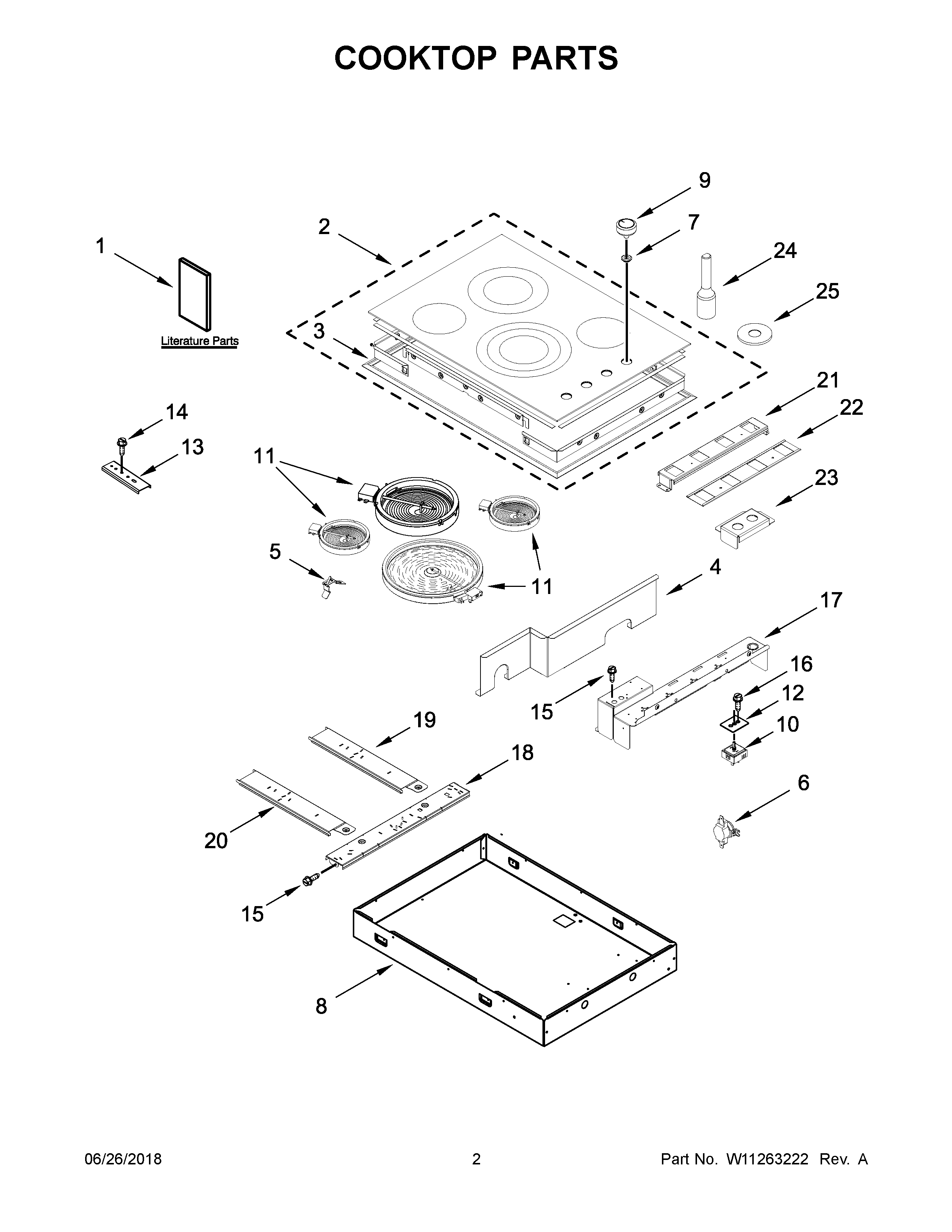

JEC3430HB00 02 – COOKTOP PARTS

JEC3430HB00 02 – COOKTOP PARTS

Written by

in

JEC3430HB00 02 – COOKTOP PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY 8286642
NISEAL, LIMITER
NIMAY W11129322
NIMAY W11160643
NIMAY W11110550
1AINSTRUCTIONS, UNDERCOUNTER INSTALL
1INSTRUCTION, INSTALLATION
1BGUIDE, USE & CARE
1CMAY W11238369
2AMAY W11121000
2MAY W11120999
4MAY W11158444
5SPRING, ELEMENT
6MAY W10464566
7AGROMMET, KNOB (STAINLESS)
7GROMMET, KNOB (BLACK)
9KNOB, CONTROL (BLACK)
9AKNOB, CONTROL (STAINLESS)
10ASWITCH, INFINITE (DUAL) (LEFT FRONT)
10BSWITCH, INFINITE (LEFT FRONT)
10SWITCH, INFINITE (RIGHT FRONT)
10CSWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
11ELEMENT (1300W) (LEFT REAR)
11BELEMENT (3000W) (LEFT FRONT)
11CELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
11AELEMENT (3000/1400W) (LEFT FRONT)
12MAY 3183956
13MAY 4455917
14MAY 3400093
15MAY 7101P426- 60
16SCREW
17MAY W11240393
18MAY W11175479
19MAY W11175474
20MAY W11175476
21MAY W11240501
22MAY W11240502
23MAY W11242040
24SHAFT, EXTENSOR
25LENS, LIGHTED
