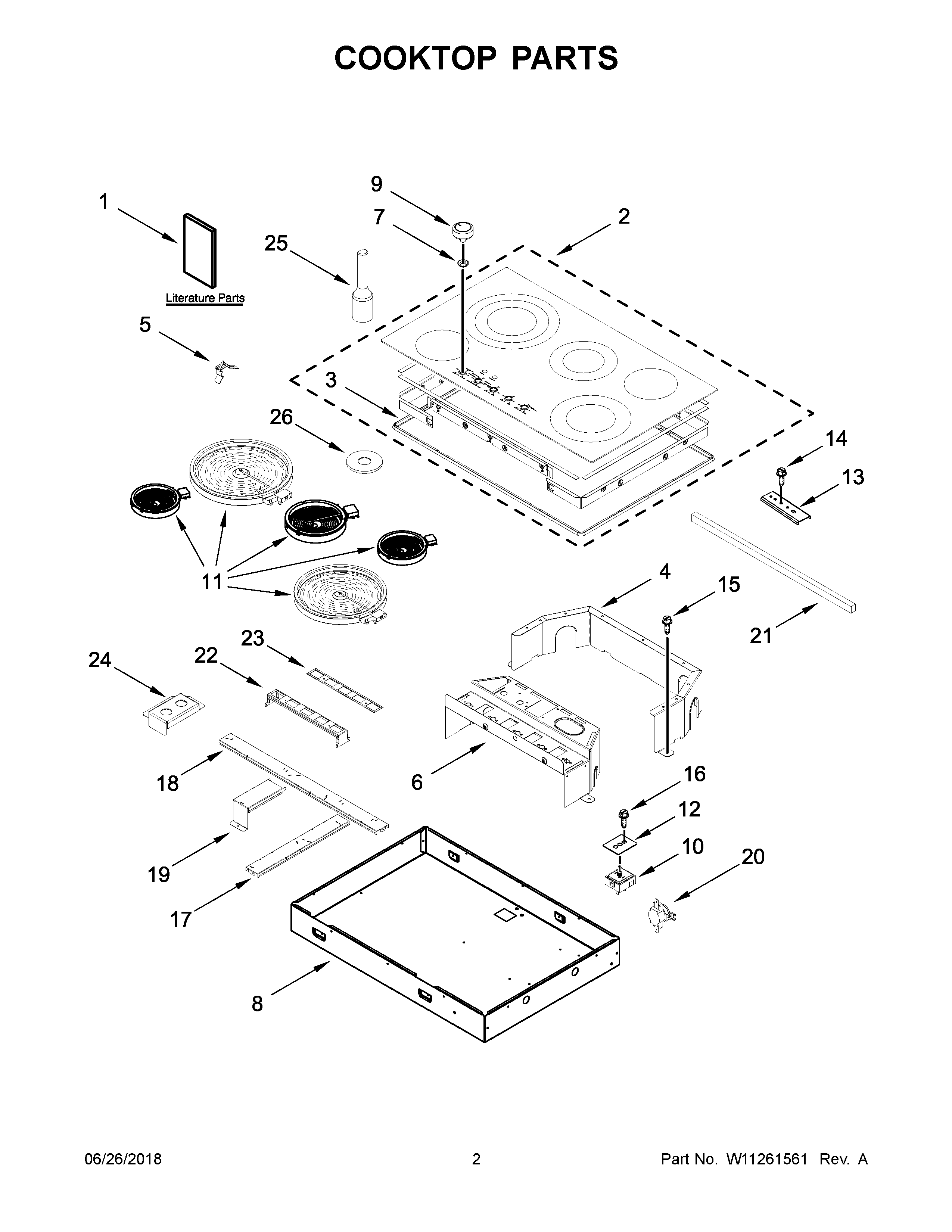

JEC3536HS00 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY 8286642
NI	MAY W11132919
NI	MAY W11111813
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W11160641
NI	SEAL, LIMITER
1C	MAY W11238370
1A	INSTRUCTIONS, UNDERCOUNTER INSTALL
1	INSTRUCTION, INSTALLATION
1B	GUIDE, USE & CARE
2	MAY W11121001
2A	MAY W11121002
4	MAY W11158446
5	SPRING, ELEMENT
6	MAY W11240504
7	GROMMET, KNOB (BLACK)
7A	GROMMET, KNOB (STAINLESS)
9A	KNOB, CONTROL (STAINLESS)
9	KNOB, CONTROL (BLACK)
10A	SWITCH, INFINITE (LEFT FRONT)
10B	SWITCH, INFINITE (DUAL) (LEFT FRONT)
10	SWITCH, INFINITE (RIGHT FRONT)
10C	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
11B	MAY W10673359
11A	ELEMENT (3000W) (LEFT FRONT)
11	ELEMENT (1300W) (LEFT REAR)
11D	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
11C	ELEMENT (3000/1400W) (LEFT FRONT)
12	MAY 3183956
13	MAY 4455917
14	MAY 3400093
15	MAY 7101P426- 60
16	SCREW
17	RAIL, SHORT
18	RAIL, HORIZONTAL
19	MAY W11207668
20	SWITCH, TOD HIGH LIMIT
21	TOP, FOAM (HEAT SHIELD)
22	MAY W11240507
23	MAY W11240509
24	MAY W11242044
25	SHAFT, EXTENSOR
26	LENS, LIGHTED
