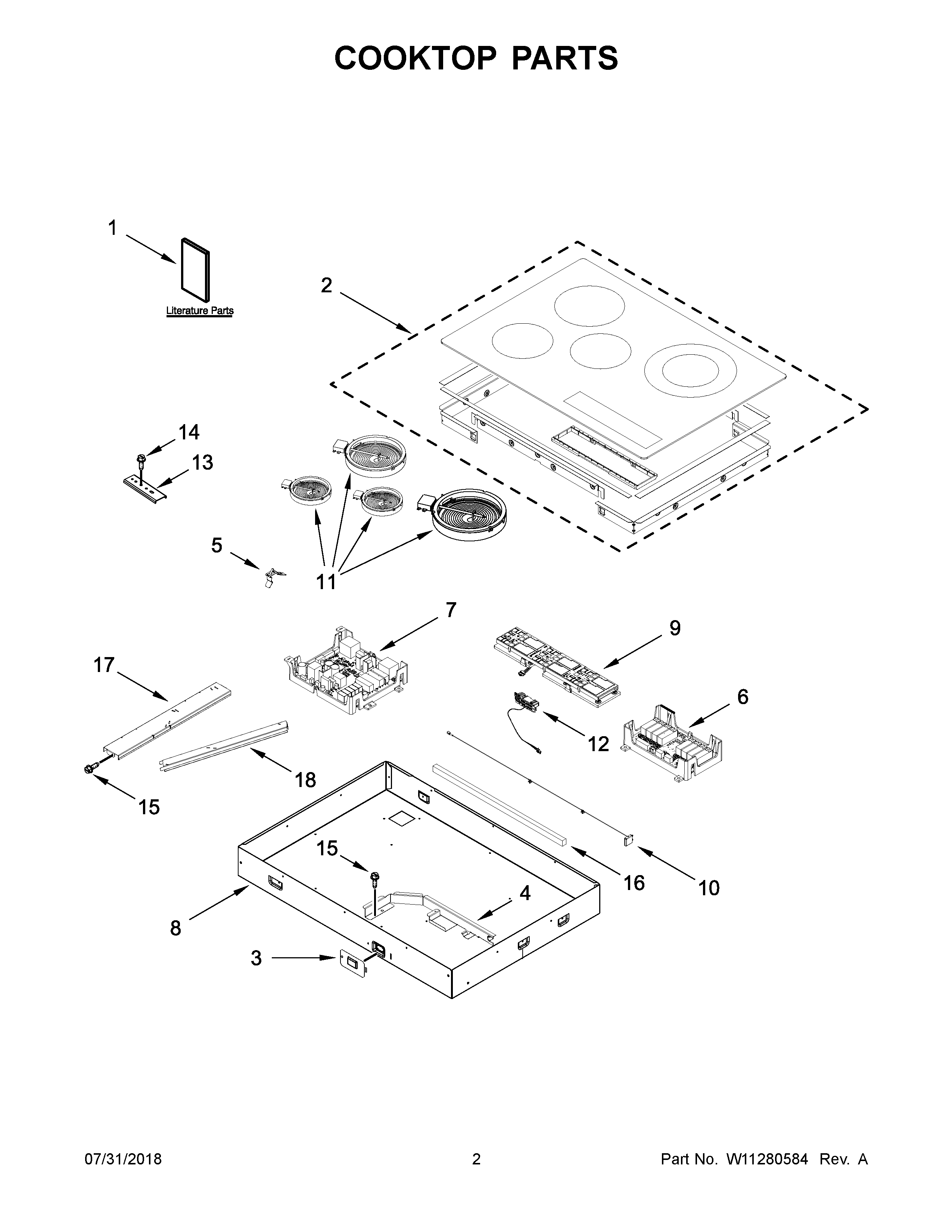

JEC4424HB00 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY 8286642
NISEAL, LIMITER
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, MAIN
NIINSULATION, COOKTOP
1FMAY W10550652
1DGUIDE, INTERNET CONNECTIVITY
1CDIAGRAM, WIRING
1AINSTRUCTIONS, UNDERCOUNTER INSTALL
1EMAY W10550651
1BGUIDE, USE & CARE
1INSTRUCTION, INSTALLATION
2COOKTOP (BLACK)
4SHIELD, HEAT
5SPRING, ELEMENT
6APPLIANCE MANAGER, EXPANSION
7MANAGER, COPERNICUS APPLIANCE
9MAY W11115962
10ANTENNA
11AELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
11BELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
11CELEMENT (3000/1400W) (LEFT FRONT)
11ELEMENT (1300W) (LEFT REAR)
12ASSEMBLY, LOKI WIFI
13MAY 4455917
14MAY 3400093
15MAY 7101P426- 60
16TOP, FOAM (HEAT SHIELD)
17RAIL, VERTICAL
18SHORT RAIL, VERTICAL
