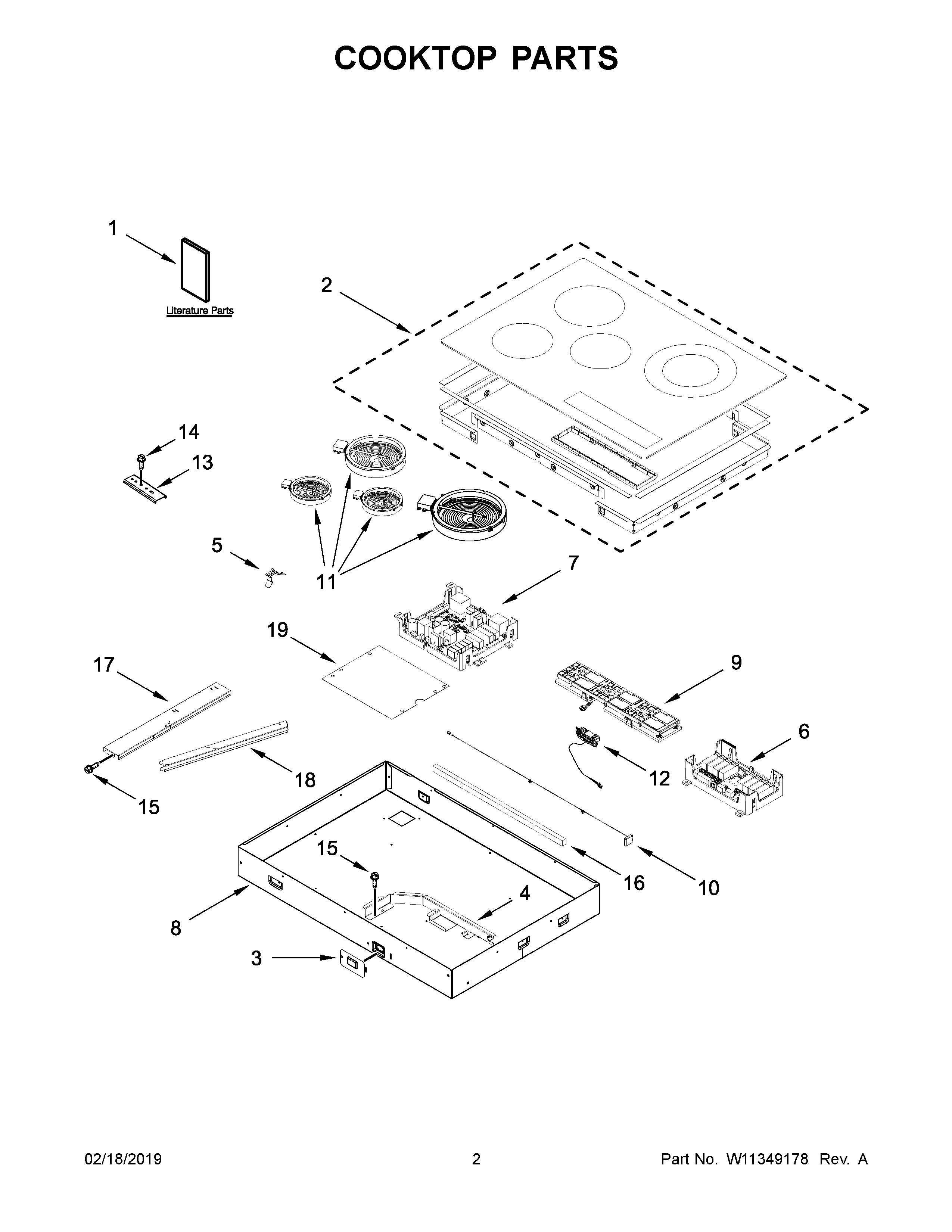

JEC4424HB01 02 – COOKTOP PARTS

Products

Position	Product
NI	INSULATION, COOKTOP
NI	HARNESS, MAIN
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 8286642
NI	SEAL, LIMITER
1B	MAY W11297622
1E	MAY W10550651
1D	MAY W10550652
1C	DIAGRAM, WIRING
1	INSTRUCTION, INSTALLATION
1D	GUIDE, INTERNET CONNECTIVITY
1A	INSTRUCTIONS, UNDERCOUNTER INSTALL
2	COOKTOP (BLACK)
4	SHIELD, HEAT
5	SPRING, ELEMENT
6	APPLIANCE MANAGER, EXPANSION
7	APPLIANCE MANAGER, COPERNICUS
9	MAY W11296722
10	ANTENNA
11	ELEMENT (1300W) (LEFT REAR)
11A	ELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
11B	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
11C	ELEMENT (3000/1400W) (LEFT FRONT)
12	ASSEMBLY, LOKI WIFI
13	MAY 4455917
14	MAY 3400093
15	MAY 7101P426- 60
16	TOP, FOAM (HEAT SHIELD)
17	RAIL, VERTICAL
18	SHORT RAIL, VERTICAL
19	MAY W11242976
