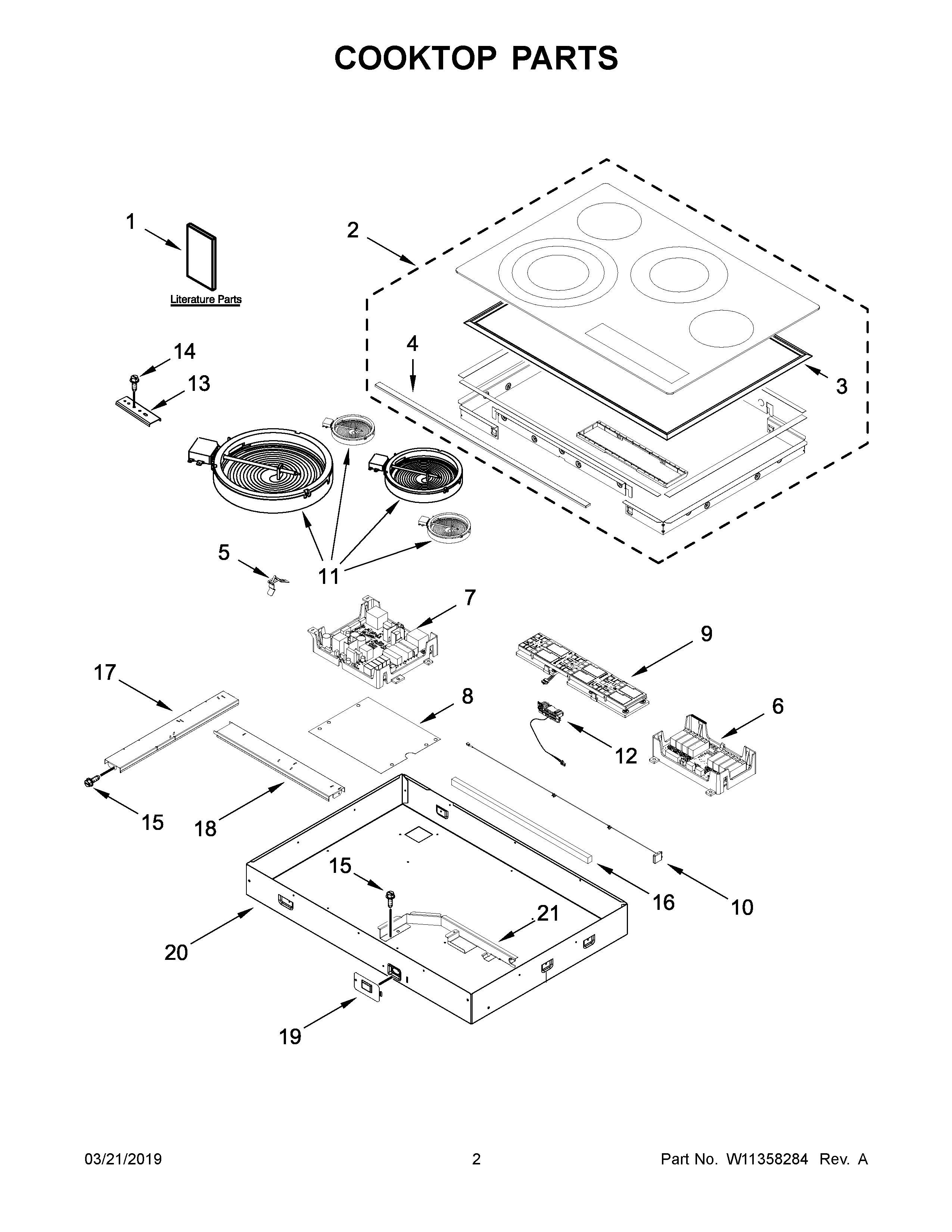

JEC4430HB01 02 – COOKTOP PARTSadmin2025-04-26T09:29:41+00:00JEC4430HB01 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | MAY W11110558 |
| NI | INSULATION, COOKTOP |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY 8286642 |
| NI | SEAL, LIMITER |
| 1C | MAY W11238372 |
| 1A | INSTRUCTIONS, UNDERCOUNTER INSTALL |
| 1D | GUIDE, INTERNET CONNECTIVITY |
| 1B | MAY W11297622 |
| 1 | INSTRUCTION, INSTALLATION |
| 2 | MAY W11121005 |
| 2A | MAY W11121006 |
| 3 | MAY W10422108 |
| 5 | SPRING, ELEMENT |
| 6 | APPLIANCE MANAGER, EXPANSION |
| 7 | MAY W11296739 |
| 8 | MAY W11242976 |
| 9 | MAY W11296723 |
| 10 | ANTENNA |
| 11 | ELEMENT (4500W) (CENTER) |
| 11A | ELEMENT (1300W) (LEFT REAR) |
| 11B | ELEMENT (3200W) (CENTER REAR) |
| 12 | ASSEMBLY, LOKI WIFI |
| 13 | MAY 4455917 |
| 14 | MAY 3400093 |
| 15 | MAY 7101P426- 60 |
| 16 | TOP, FOAM (HEAT SHIELD) |
| 17 | MAY W11110713 |
| 18 | MAY W11110715 |
| 21 | SHIELD, HEAT |
