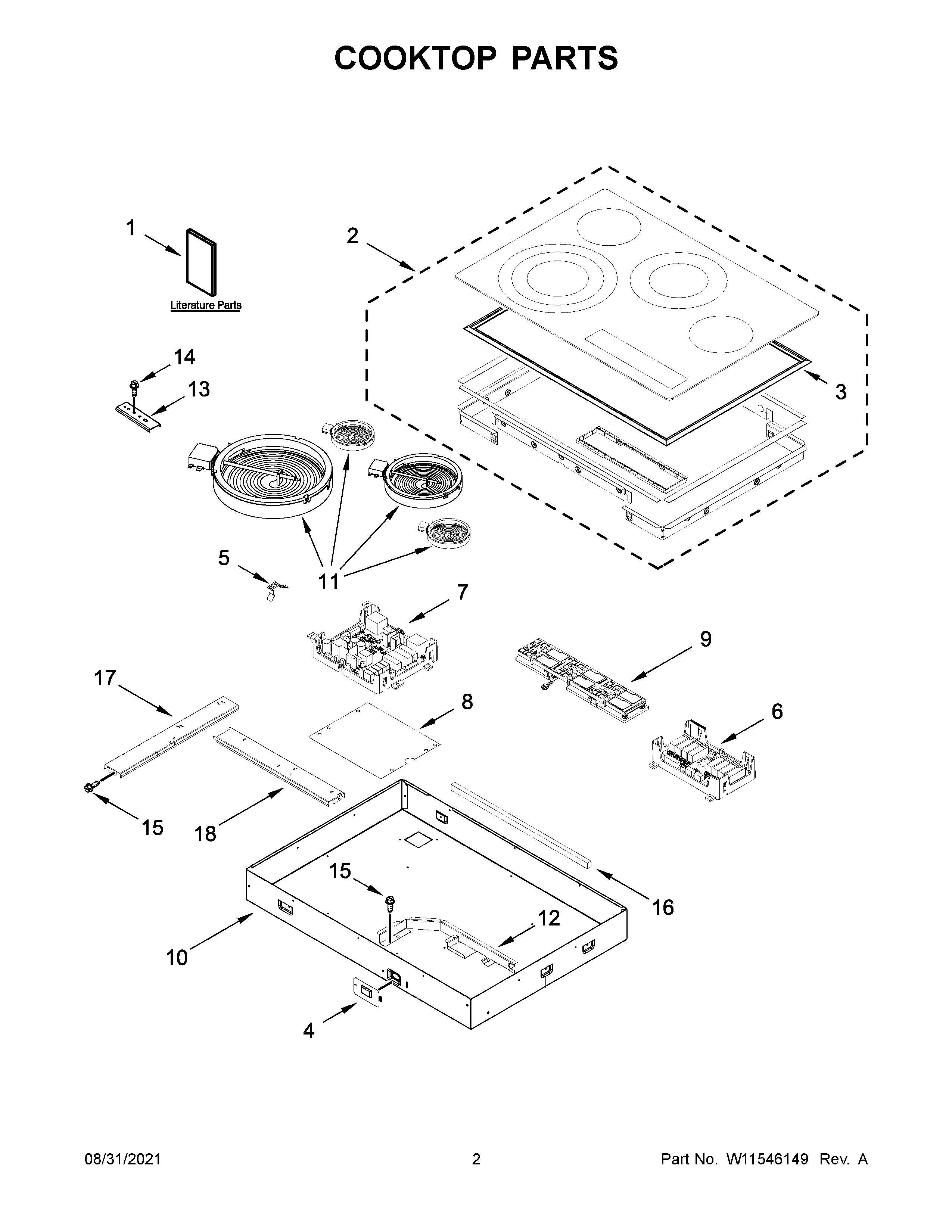

JEC4430KS00 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, MAIN
NICABINET (NOT A SERVICEABLE PART)
NIWP8286642 Whirlpool Tape
NIW10491984 Whirlpool Switch Seal
1CDIAGRAM, WIRING
1BOWNER'S MANUAL
1INSTALLATION INSTRUCTIONS
1AINSTRUCTIONS, UNDERCOUNTER INSTALL
3W10422108 Whirlpool Cooktop Trim
5WPW10225448 Whirlpool Spring Assembly
6W11259509 Whirlpool Electronic Control Board + Core
7W11350303-includeCORE Whirlpool W11350303 Electronic Control Board
8PAD, INSULATION
9UI ASSEMBLY
11AWPW10342780 Whirlpool Surface Element
11BW11259508 Whirlpool Surface Element
11WPW10298145 Whirlpool Surface Element
12SHIELD, HEAT
138186533 Whirlpool Hardware
14WP3400093 Whirlpool Screw
15SCREW
16TOP, FOAM (HEAT SHIELD)
17RAIL, VERTICAL
18RAIL, HORIZONTAL
