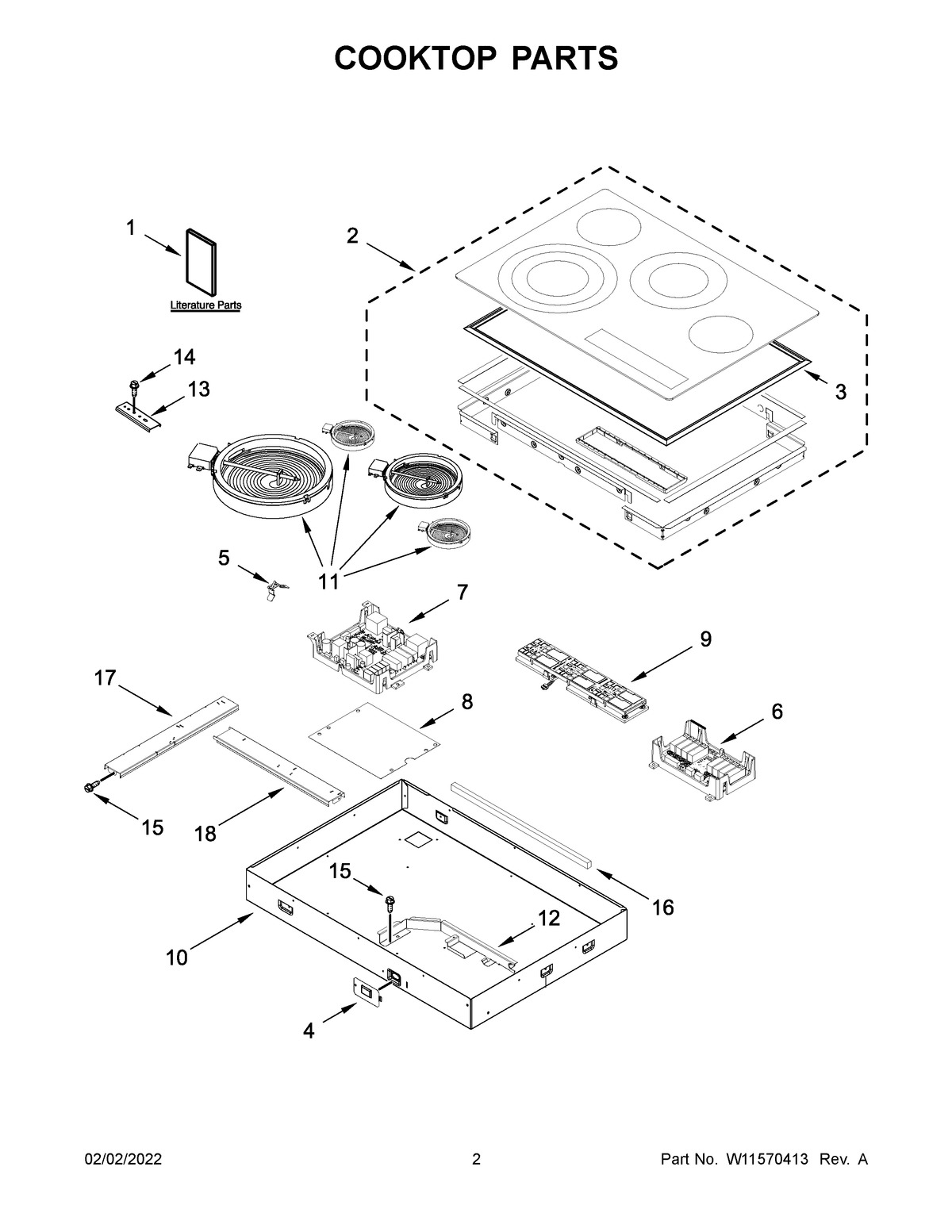

JEC4430KS01 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP8286642 Whirlpool Tape
NI	W10491984 Whirlpool Switch Seal
1C	DIAGRAM, WIRING
1B	OWNER'S MANUAL
1	INSTALLATION INSTRUCTIONS
1A	INSTRUCTIONS, UNDERCOUNTER INSTALL
3	W10422108 Whirlpool Cooktop Trim
5	WPW10225448 Whirlpool Spring Assembly
6	W11259509 Whirlpool Electronic Control Board + Core
7	W11350303-includeCORE Whirlpool W11350303 Electronic Control Board
8	PAD, INSULATION
9	UI ASSEMBLY
11A	WPW10342780 Whirlpool Surface Element
11B	W11259508 Whirlpool Surface Element
11	WPW10298145 Whirlpool Surface Element
12	SHIELD, HEAT
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	TOP, FOAM (HEAT SHIELD)
17	RAIL, VERTICAL
18	RAIL, HORIZONTAL
