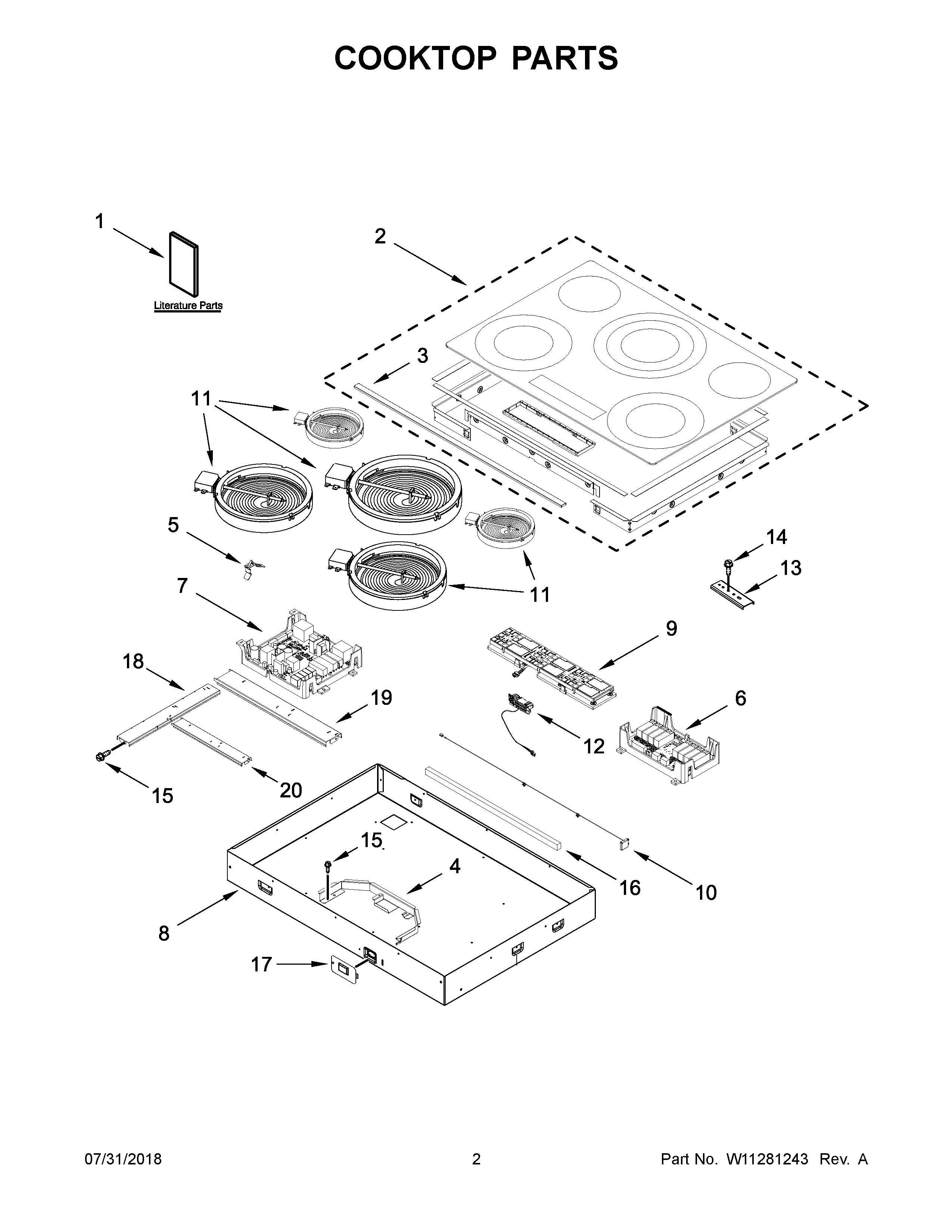

JEC4536HB00 02 – COOKTOP PARTS

Products

Position	Product
NI	SCREW, GROUNDING
NI	INSULATION, COOKTOP
NI	LINER (NOT A SERVICEABLE PART)
NI	SCREW (FOR MAIN HARNESS)
NI	MAY 8286642
NI	SEAL, LIMITER
NI	WP7103P027-60 Whirlpool Nut
NI	HARNESS, MAIN
1B	GUIDE, USE & CARE
1	INSTRUCTION, INSTALLATION
1C	DIAGRAM, WIRING
1A	INSTRUCTIONS, UNDERCOUNTER INSTALL
1D	GUIDE, INTERNET CONNECTIVITY
2A	COOKTOP (STAINLESS)
2	COOKTOP (BLACK)
4	SHIELD, HEAT
5	SPRING, ELEMENT
6	APPLIANCE MANAGER, EXPANSION
7	MANAGER, COPERNICUS APPLIANCE
9	MAY W11115964
10	ANTENNA
11A	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
11B	ELEMENT (4500W) (CENTER)
11	ELEMENT (3000/1400W) (LEFT FRONT)
12	ASSEMBLY, LOKI WIFI
13	MAY 4455917
14	MAY 3400093
15	MAY 7101P426- 60
16	TOP, FOAM (HEAT SHIELD)
18	RAIL, SHORT COOKTOP
19	RAIL, AUXILIAR
20	RAIL, HORIZONTAL
