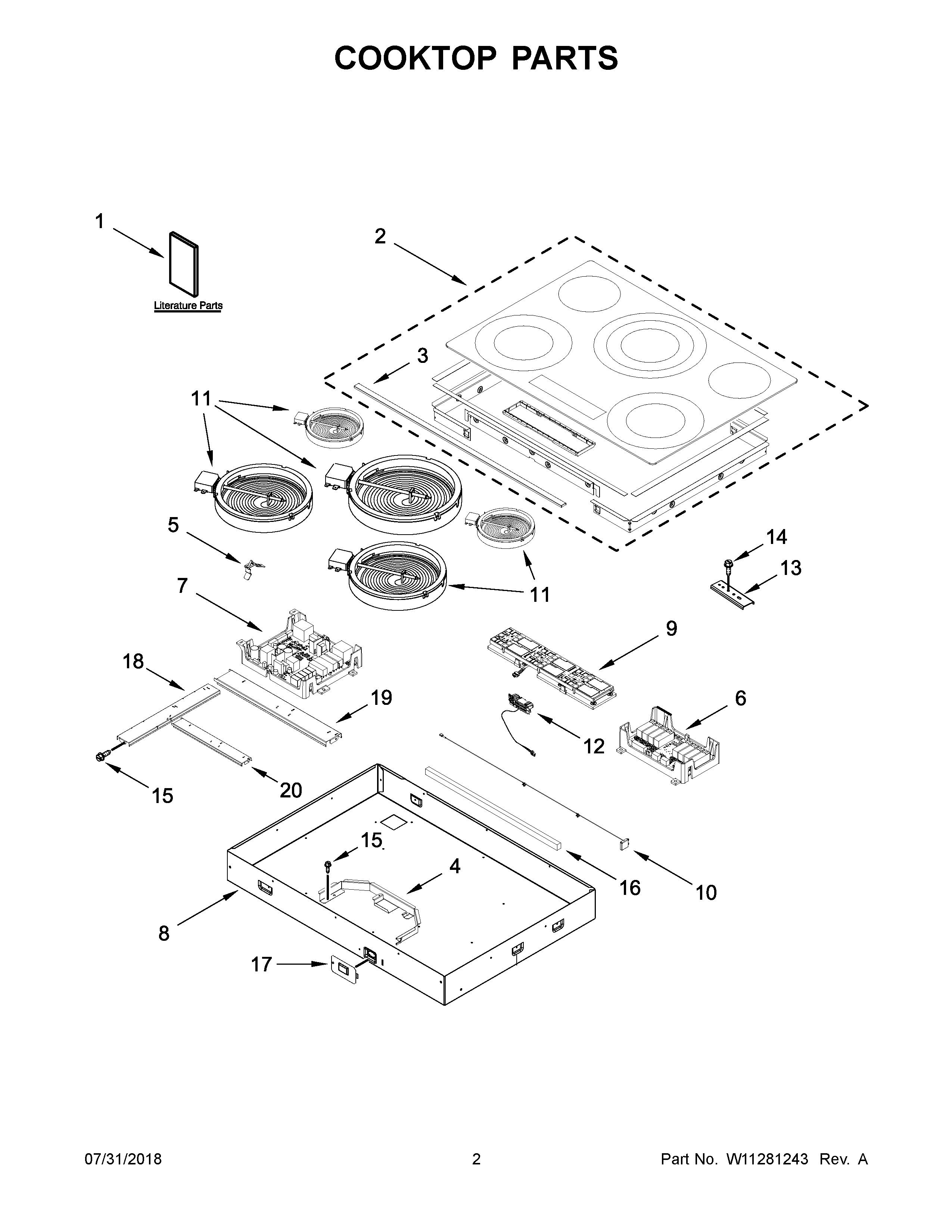

JEC4536HS00 02 – COOKTOP PARTSadmin2025-04-26T09:31:10+00:00JEC4536HS00 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | SCREW, GROUNDING |
| NI | INSULATION, COOKTOP |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | SCREW (FOR MAIN HARNESS) |
| NI | MAY 8286642 |
| NI | SEAL, LIMITER |
| NI | WP7103P027-60 Whirlpool Nut |
| NI | HARNESS, MAIN |
| 1B | GUIDE, USE & CARE |
| 1 | INSTRUCTION, INSTALLATION |
| 1C | DIAGRAM, WIRING |
| 1A | INSTRUCTIONS, UNDERCOUNTER INSTALL |
| 1D | GUIDE, INTERNET CONNECTIVITY |
| 2A | COOKTOP (STAINLESS) |
| 2 | COOKTOP (BLACK) |
| 4 | SHIELD, HEAT |
| 5 | SPRING, ELEMENT |
| 6 | APPLIANCE MANAGER, EXPANSION |
| 7 | MANAGER, COPERNICUS APPLIANCE |
| 9 | MAY W11115964 |
| 10 | ANTENNA |
| 11A | ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR) |
| 11B | ELEMENT (4500W) (CENTER) |
| 11 | ELEMENT (3000/1400W) (LEFT FRONT) |
| 12 | ASSEMBLY, LOKI WIFI |
| 13 | MAY 4455917 |
| 14 | MAY 3400093 |
| 15 | MAY 7101P426- 60 |
| 16 | TOP, FOAM (HEAT SHIELD) |
| 18 | RAIL, SHORT COOKTOP |
| 19 | RAIL, AUXILIAR |
| 20 | RAIL, HORIZONTAL |
