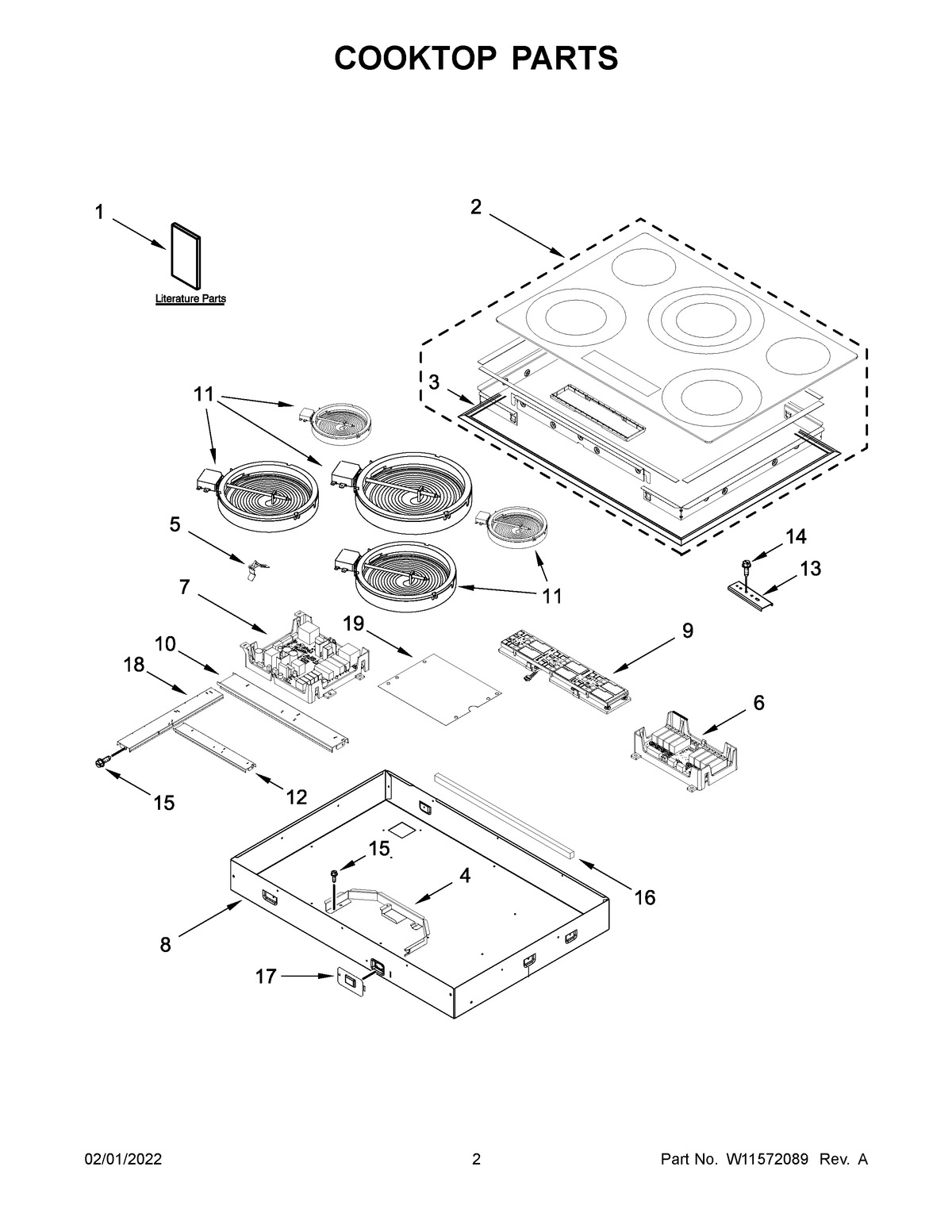

JEC4536KB01 02 – COOKTOP PARTS
Written by
in
JEC4536KB01 02 – COOKTOP PARTS
Products
Position
Product
NI
HARNESS, MAIN
NI
WP8286642 Whirlpool Tape
NI
SCREW
NI
W10491984 Whirlpool Switch Seal
NI
CABINET (NOT A SERVICEABLE PART)
NI
Nut
NI
WP3400015 Whirlpool Screw
1
INSTALLATION INSTRUCTIONS
1C
DIAGRAM, WIRING
1B
OWNER'S MANUAL
1A
INSTRUCTIONS, UNDERCOUNTER INSTALL
3
W10422109 Whirlpool Cooktop Trim
4
SHIELD, HEAT
5
WPW10225448 Whirlpool Spring Assembly
6
W11282854-includeCORE Whirlpool W11282854 Refrigerator Electronic Control Board + Core
7
W11350287-includeCORE Whirlpool W11350287 Refrigerator Electronic Control Board
9
UI ASSEMBLY
10
RAIL, AUXILIAR
11
W11517959 Whirlpool Electric Range Radiant Surface Element
11A
ELMNT-SURF
11B
WPW10298145 Whirlpool Surface Element
12
RAIL, HORIZONTAL
13
8186533 Whirlpool Hardware
14
WP3400093 Whirlpool Screw
15
SCREW
16
TOP, FOAM (HEAT SHIELD)
18
RAIL, SHORT COOKTOP
19
PAD, INSULATION
←
