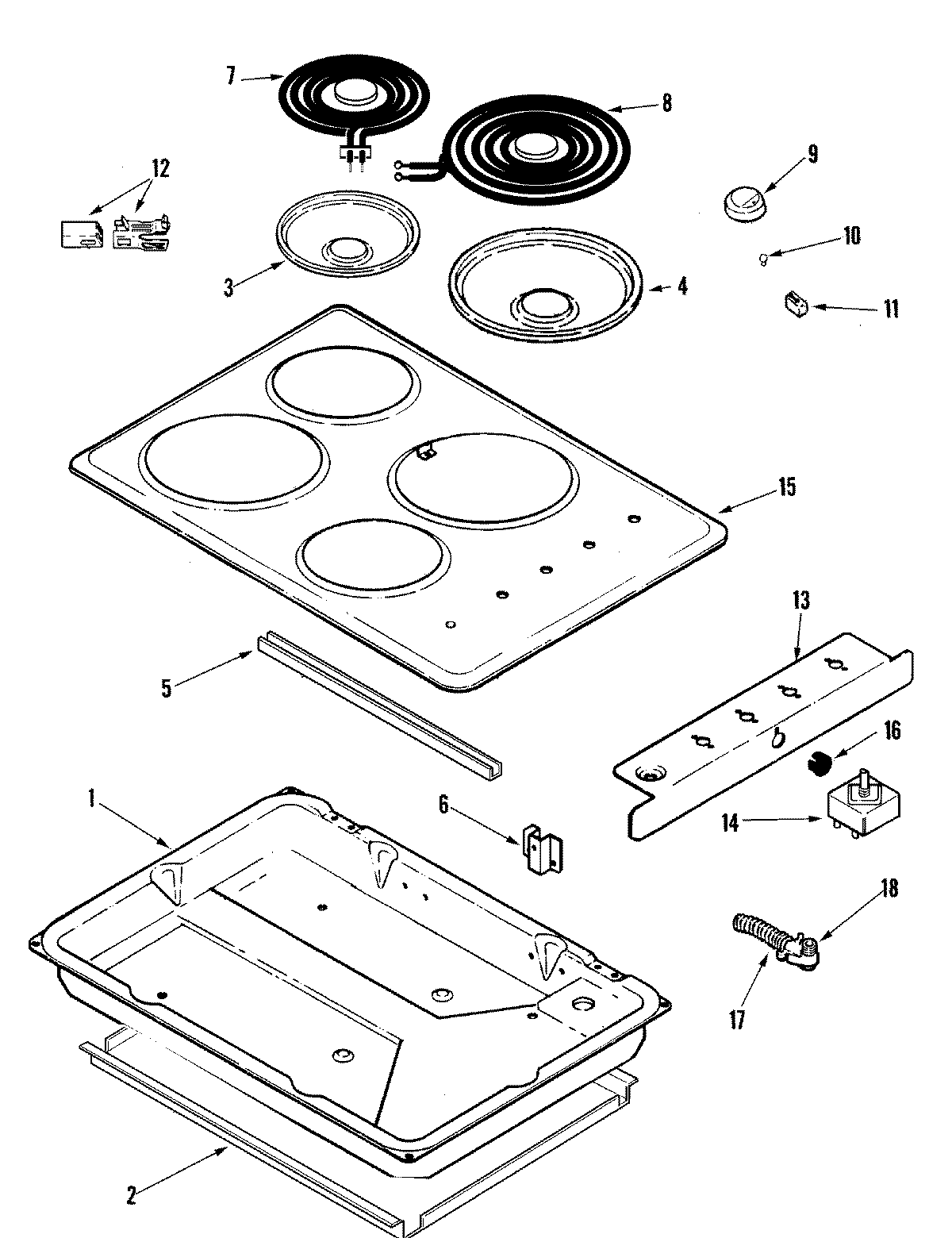

JEC7430AAW 01 – COOKTOP (COMPLETE)

Products

Position	Product
1	BOTTOM, BURNER BOX
2	MAY 74004502
3	WPW10196406 Whirlpool 6" Chrome Drip Bowl
4	DRIP BOWL 8" W/HOLE CHROME
5	BRACE, TOP
6	MAY 7111P002-60
6	BRACKET, MAIN TOP SUPPORT
6	MAY 7118P004-60
7	WPW10259868 Whirlpool Surface Heating Element
8	WPW10345410 Whirlpool Surface Element
9	MAY 74004829
10	W10852510 Whirlpool Indicator Light
11	W11690131 Whirlpool Light Lens
12	12001676 Whirlpool Range Surface Burner Receptacle Kit
12	MAY 7101P042-60
13	MAY 74004488
14	910187 Whirlpool Screw
14	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
14	WP7403P239-60 Whirlpool Oven Switch
15	MAY 74007944
16	MAY 8008P014-60
17	MAY 74005433
17	MAY 74001447
17	MAY 3801F072-45
18	MAY 74007831
18	MAY 7417P004-60
19	MAY 74007807
20	MAY 74002580
