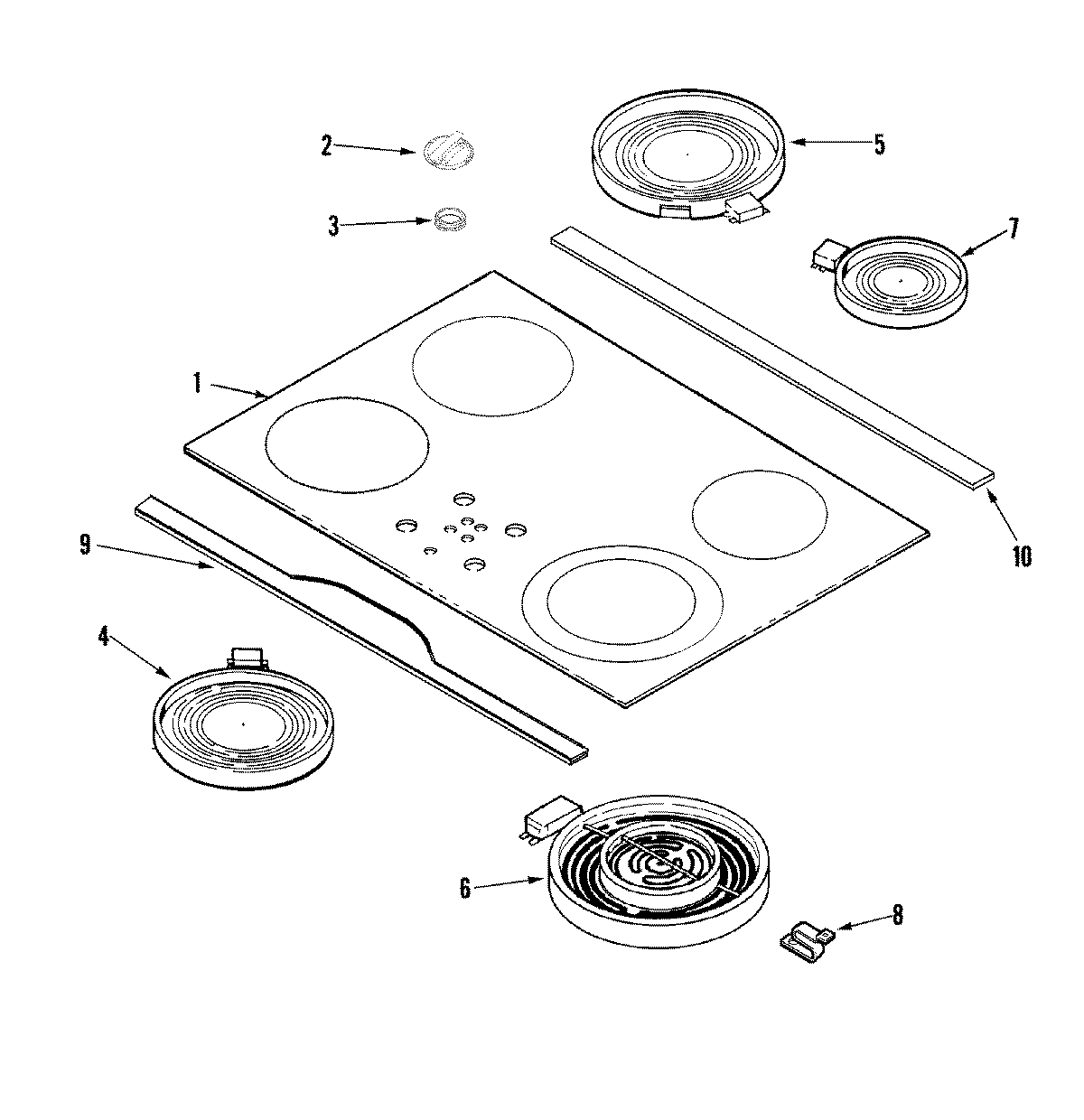

JEC8430ADW 02 – TOP ASSEMBLY

JEC8430ADW 02 – TOP ASSEMBLY

Written by

in

JEC8430ADW 02 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74007855
112002793 Whirlpool Foam Tape
2WP7737P245-60 Whirlpool Stove Control Knob Chrome
3WPW10293874 Whirlpool Stove Cooktop Knob Grommet
4W10823693 Whirlpool Surface Element
4W10823698 Whirlpool Surface Element Right Rear
5WP74011005 Whirlpool Heating Element
5W10823708 Whirlpool Surface Element
6W10823692 Whirlpool Dual Radiant Element
6W10823694 Whirlpool Surface Element
7W10823711 Whirlpool Surface Element Left Front and Right Rear
8MAY 74007845
11MAY 74007265
11MAY 8111P532-60
12MAY 20001080
12WA906B Whirlpool Cooktop Glass Scraper
