JEC8430BDF10 01 – COOKTOP PARTS

JEC8430BDF10 01 – COOKTOP PARTS

Written by

in

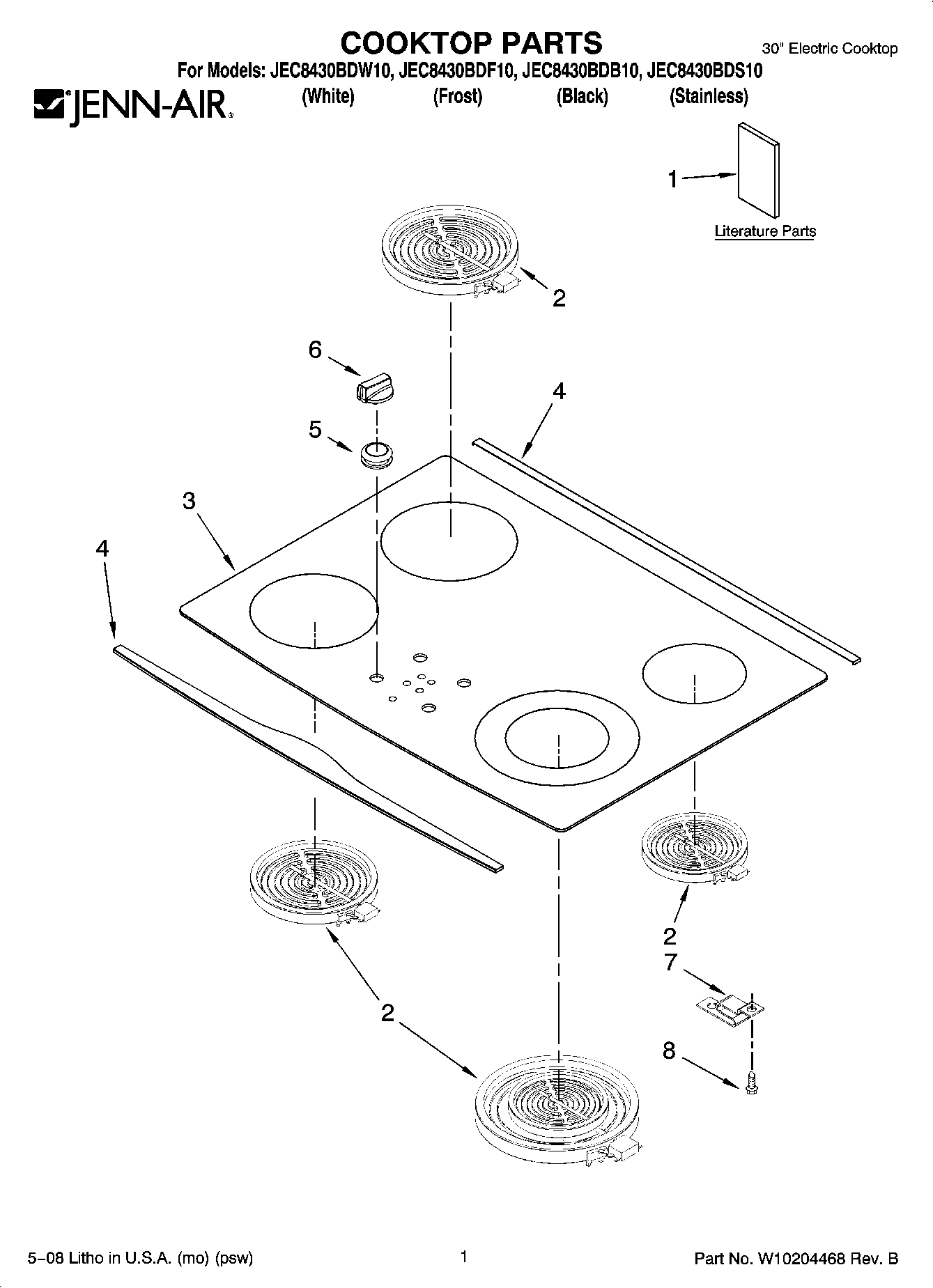

JEC8430BDF10 01 – COOKTOP PARTS

Products

PositionProduct
1MAY W10204140
1MAY W10204139
2WP74011005 Whirlpool Heating Element
2W10823692 Whirlpool Dual Radiant Element
2W10823698 Whirlpool Surface Element Right Rear
2W10823711 Whirlpool Surface Element Left Front and Right Rear
3MAY W10184478
3MAY W10182127
4MAY W10168876
4TRIM,COOKTOP SS MODEL ONLY (REAR)
5WPW10293874 Whirlpool Stove Cooktop Knob Grommet
6MAY W10204150
78004P093-60 Whirlpool Support C
8WP90767 Whirlpool Screw
