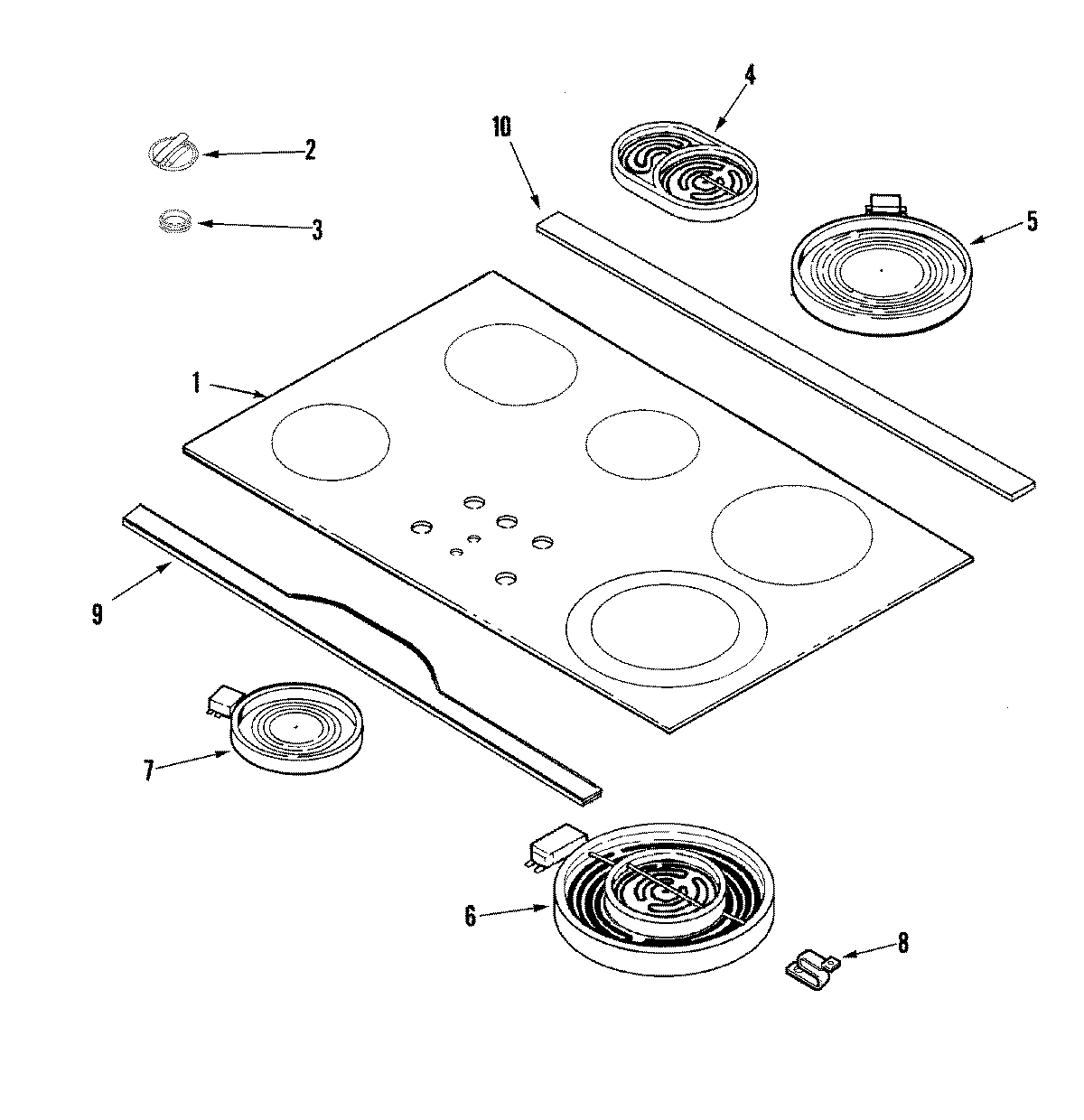

JEC8536ADN 02 – TOP ASSEMBLY

JEC8536ADN 02 – TOP ASSEMBLY

Written by

in

JEC8536ADN 02 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74007940
2WP7737P245-60 Whirlpool Stove Control Knob Chrome
3WPW10293874 Whirlpool Stove Cooktop Knob Grommet
4MAY 74011004
4MAY 74007852
5W10823698 Whirlpool Surface Element Right Rear
5W10823693 Whirlpool Surface Element
6W10823694 Whirlpool Surface Element
6W10823692 Whirlpool Dual Radiant Element
7W10823711 Whirlpool Surface Element Left Front and Right Rear
8MAY 74007845
11MAY 8111P532-60
11MAY 74007564
12MAY 20001080
12WA906B Whirlpool Cooktop Glass Scraper
1312002793 Whirlpool Foam Tape
