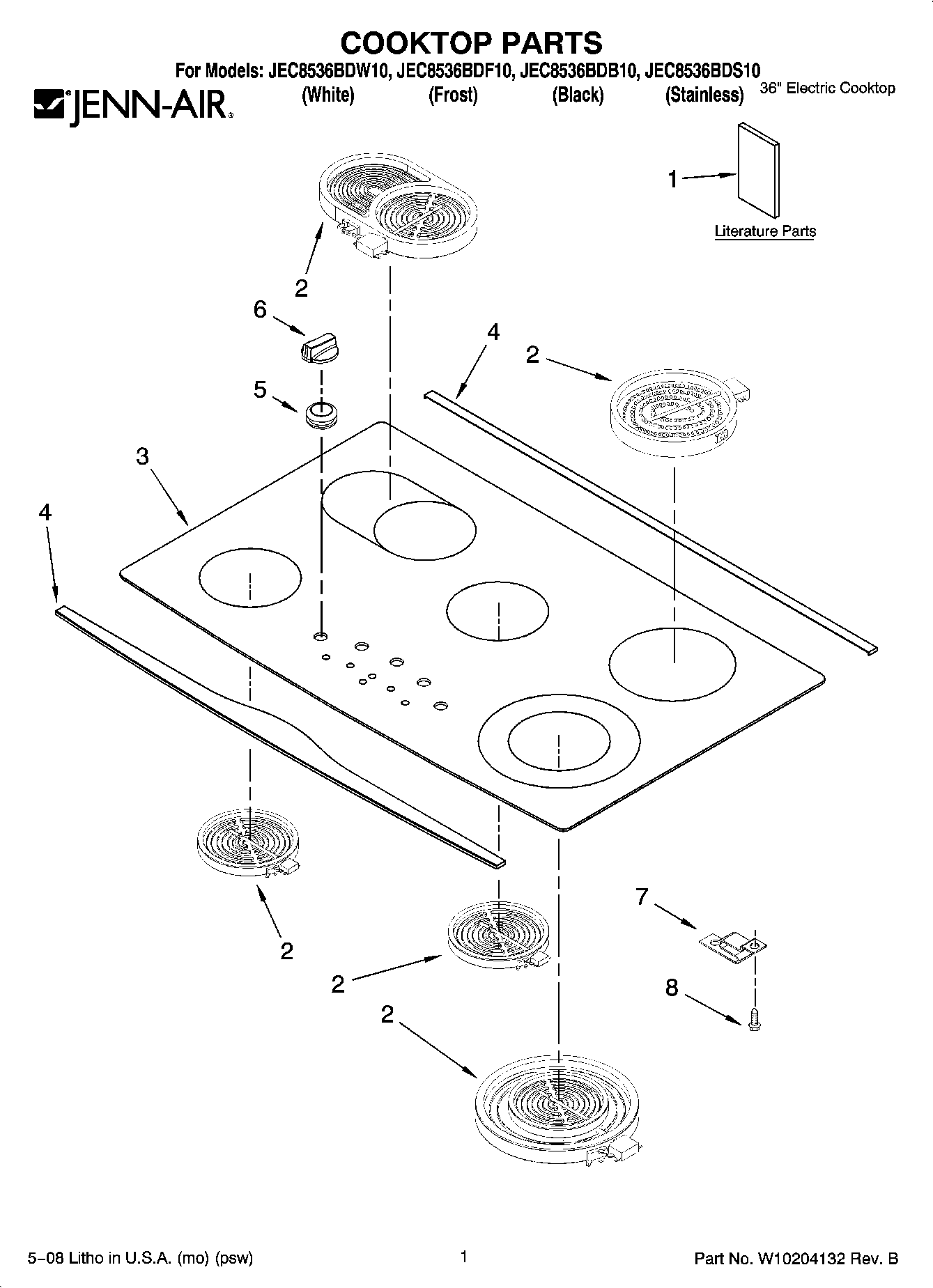

JEC8536BDF10 01 – COOKTOP PARTS

JEC8536BDF10 01 – COOKTOP PARTS

Written by

in

JEC8536BDF10 01 – COOKTOP PARTS

Products

PositionProduct
1MAY W10204140
1MAY W10204139
2W10823692 Whirlpool Dual Radiant Element
2W10823698 Whirlpool Surface Element Right Rear
2W10823711 Whirlpool Surface Element Left Front and Right Rear
2MAY 74011004
3MAY W10204143
3MAY W10204142
4MAY W10168880
4TRIM, COOKTOP FOR SS MODEL ONLY (STAINLESS) (REAR)
5WPW10293874 Whirlpool Stove Cooktop Knob Grommet
6MAY W10204150
78004P093-60 Whirlpool Support C
8WP90767 Whirlpool Screw
