JEC8536BDS10 01 – COOKTOP PARTS
Written by
in

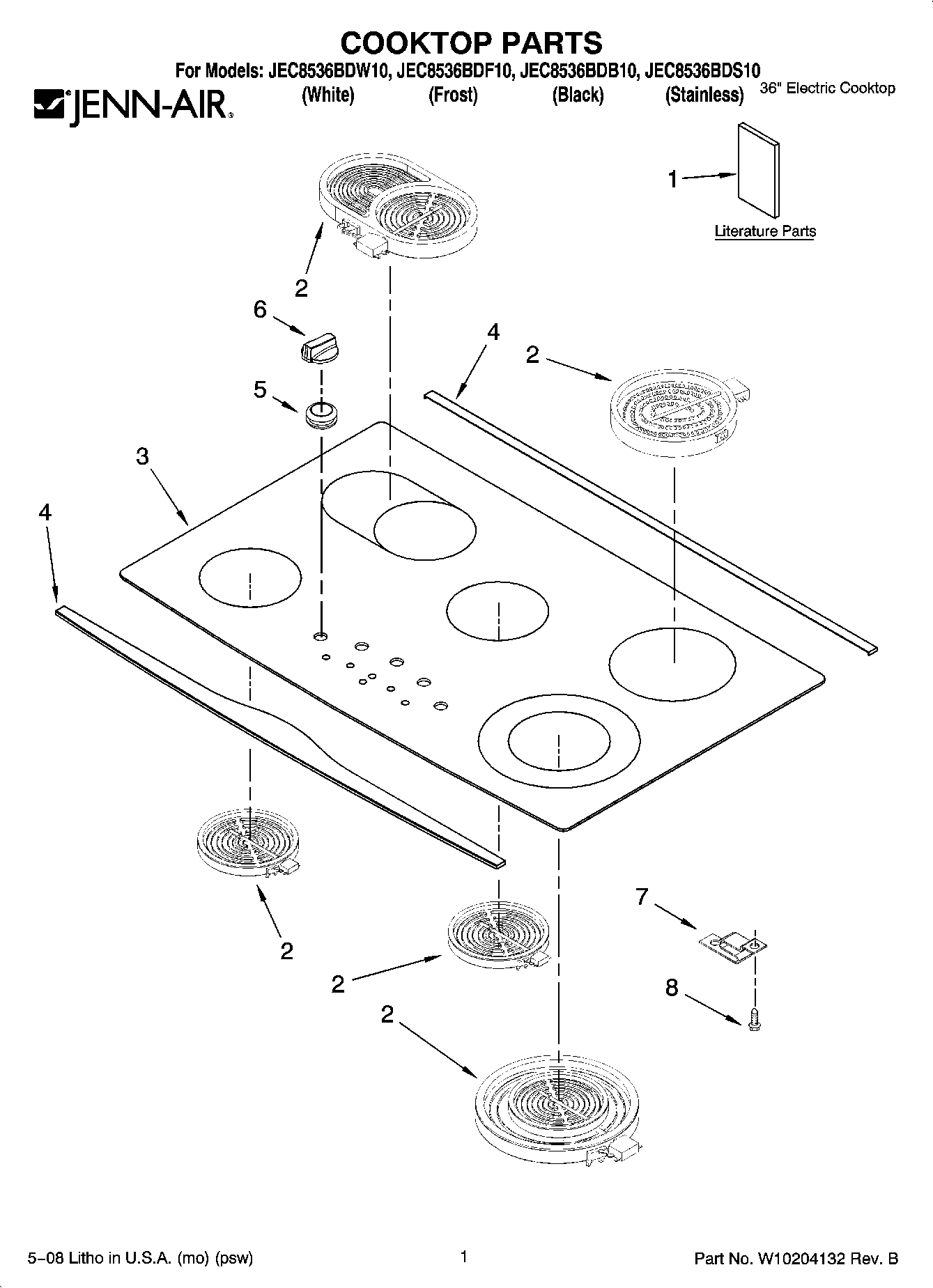

JEC8536BDS10 01 – COOKTOP PARTS
Products
Position
Product
1
MAY W10204140
1
MAY W10204139
2
W10823692 Whirlpool Dual Radiant Element
2
W10823698 Whirlpool Surface Element Right Rear
2
W10823711 Whirlpool Surface Element Left Front and Right Rear
2
MAY 74011004
3
MAY W10204143
3
MAY W10204142
4
MAY W10168880
4
TRIM, COOKTOP FOR SS MODEL ONLY (STAINLESS) (REAR)
5
WPW10293874 Whirlpool Stove Cooktop Knob Grommet
6
MAY W10204150
7
8004P093-60 Whirlpool Support C
8
WP90767 Whirlpool Screw
←
