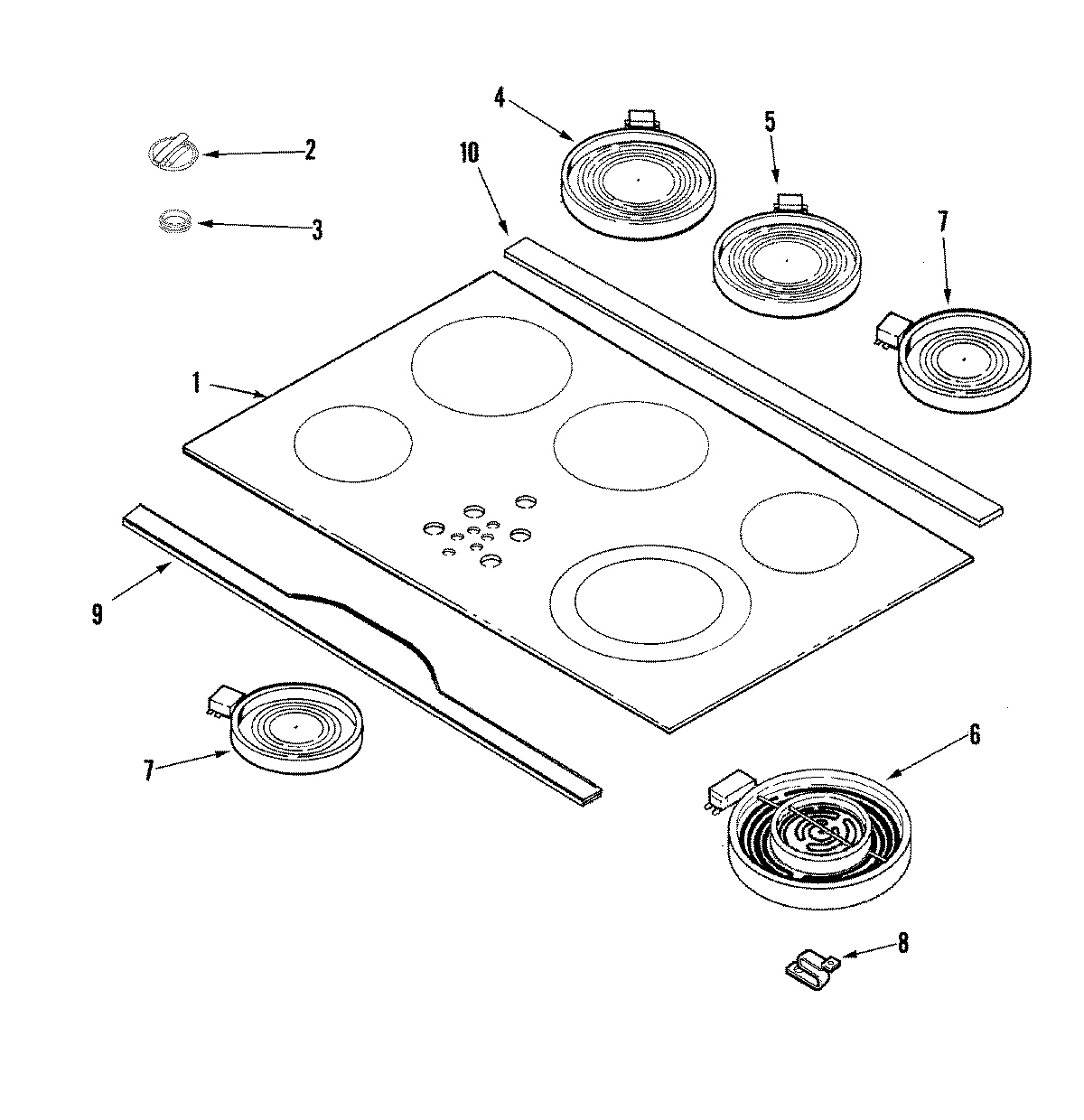

JEC9530ADS 02 – TOP ASSEMBLY

JEC9530ADS 02 – TOP ASSEMBLY

Written by

in

JEC9530ADS 02 – TOP ASSEMBLY

Products

PositionProduct
112002793 Whirlpool Foam Tape
1MAY 74008086
2WP7737P245-60 Whirlpool Stove Control Knob Chrome
3WPW10293874 Whirlpool Stove Cooktop Knob Grommet
4WP74011005 Whirlpool Heating Element
4W10823708 Whirlpool Surface Element
5MAY 74008571
5WP8523700 Whirlpool Surface Element
6MAY 74008228
7W10823711 Whirlpool Surface Element Left Front and Right Rear
8MAY 74007845
9MAY 74008240
10MAY 74008241
11MAY 74008073
12MAY 74008078
13MAY 20001080
13WA906B Whirlpool Cooktop Glass Scraper
