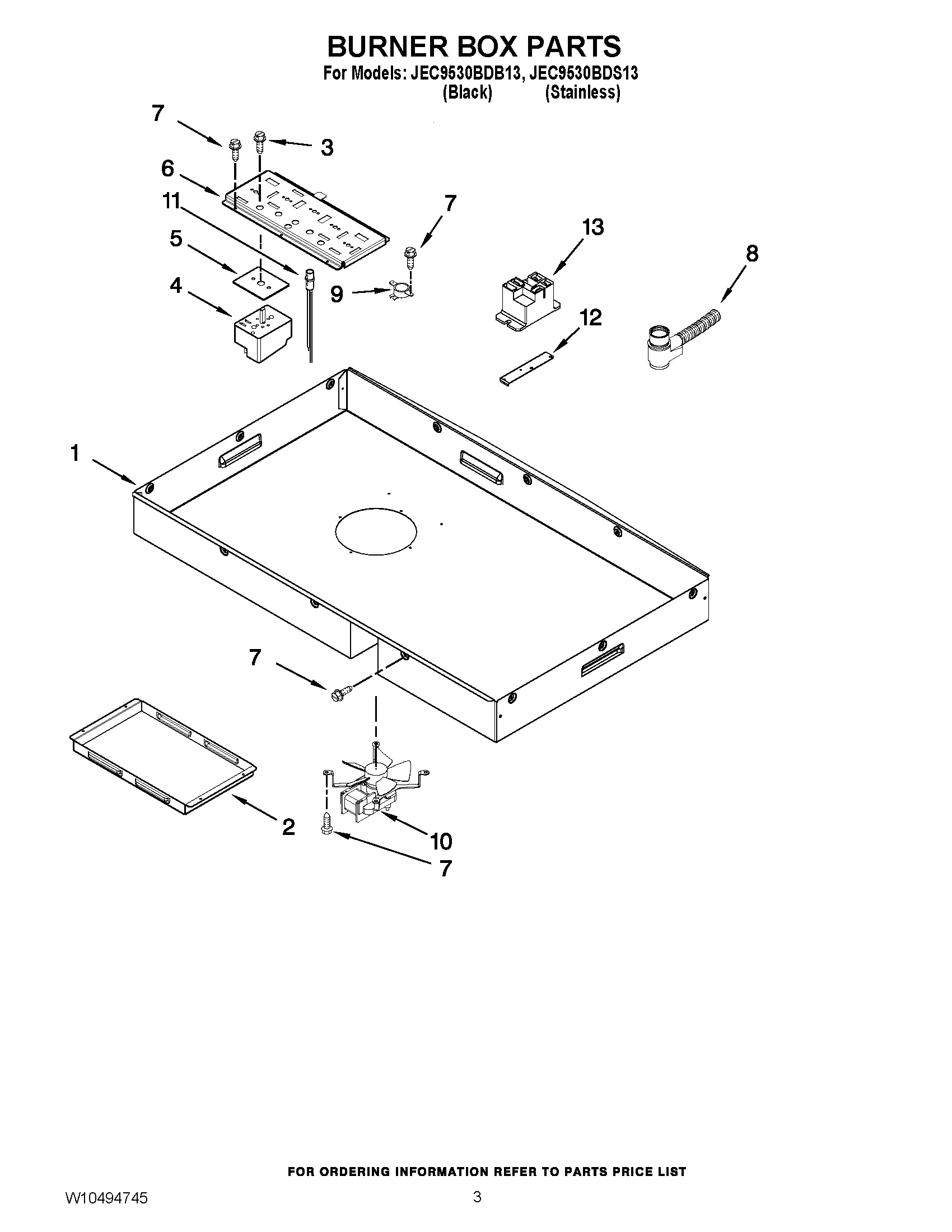

JEC9530BDB13 02 – BURNER BOX PARTS

JEC9530BDB13 02 – BURNER BOX PARTS

Written by

in

JEC9530BDB13 02 – BURNER BOX PARTS

Products

PositionProduct
1MAY 4011F518-51
2COVER, SWITCH
3SCREW
4SWITCH, INFINITE (LR & RR)
4MAY W10185284
4SWITCH, INFINITE (RIGHT REAR)
4MAY 7403P848-60
5GASKET, INFINITE SWITCH
6MAY 3605F343-51
7MAY 7101P426- 60
8MAY W10450340
9MAY 7403P227-60
10MAY 7427P087-60
11HARNESS/HOT LIGHT ASY
12MAY W10469863
13Relay, Heater
