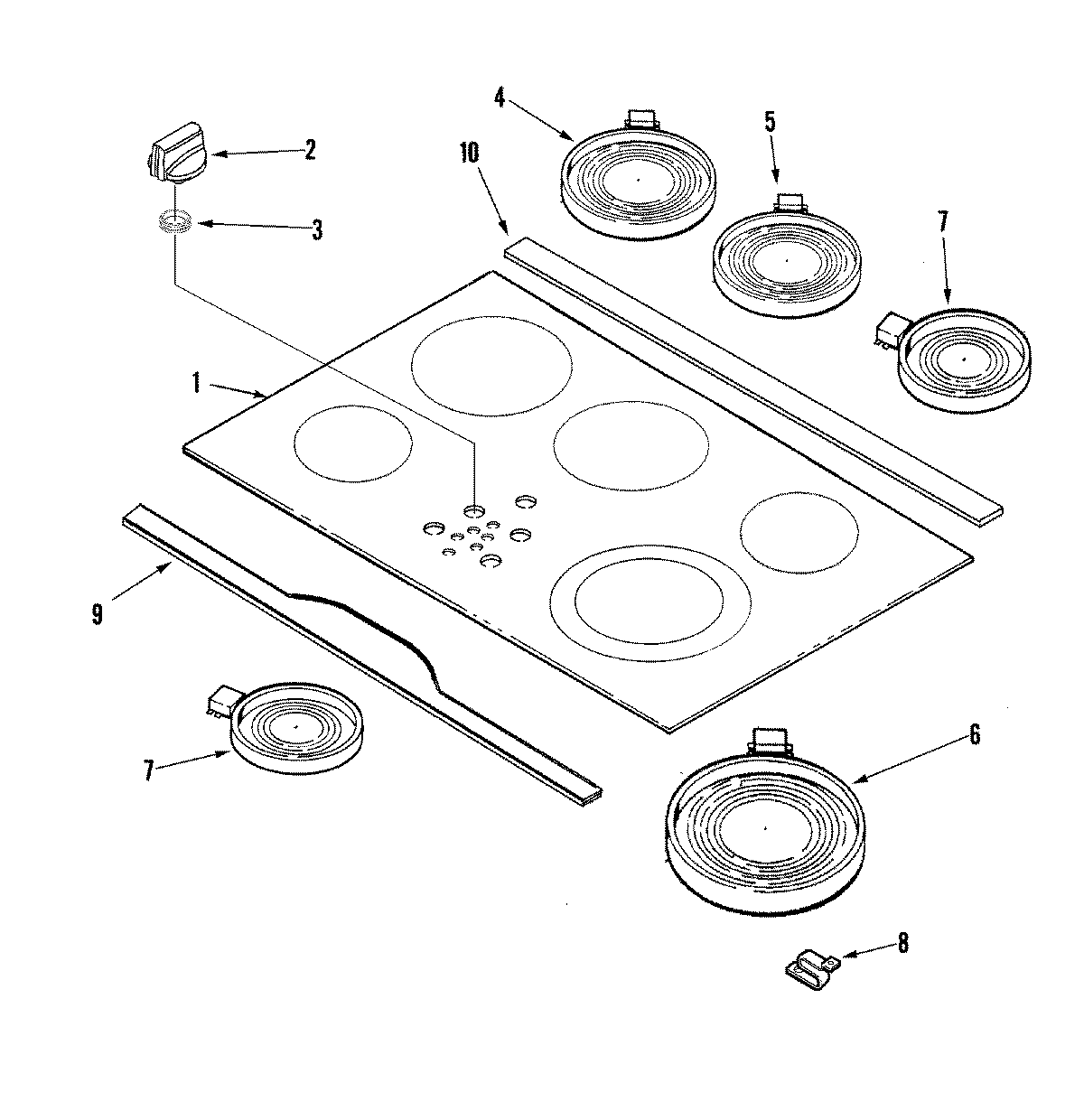

JEC9530BDF 03 – TOP ASSEMBLY

JEC9530BDF 03 – TOP ASSEMBLY

Written by

in

JEC9530BDF 03 – TOP ASSEMBLY

Products

PositionProduct
112002793 Whirlpool Foam Tape
1MAY 7920P172-60
2MAY 7737P408-60
3WPW10293874 Whirlpool Stove Cooktop Knob Grommet
4WP74011005 Whirlpool Heating Element
5MAY 74008571
6MAY 74008228
7W10823711 Whirlpool Surface Element Left Front and Right Rear
88004P093-60 Whirlpool Support C
