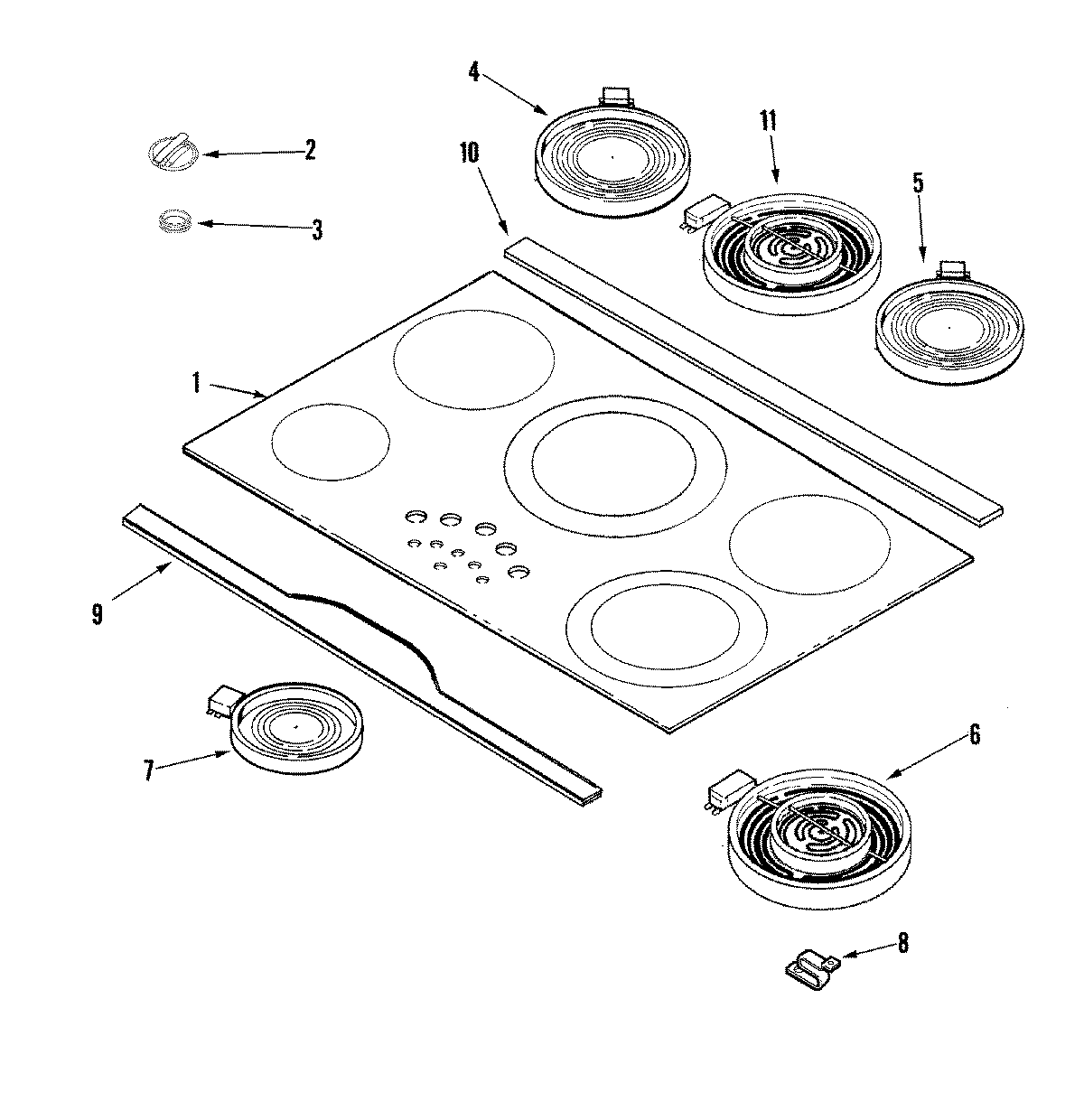

JEC9536ADF 02 – TOP ASSEMBLY

JEC9536ADF 02 – TOP ASSEMBLY

Written by

in

JEC9536ADF 02 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74008090
112002793 Whirlpool Foam Tape
2WP7737P245-60 Whirlpool Stove Control Knob Chrome
3WPW10293874 Whirlpool Stove Cooktop Knob Grommet
4W10823693 Whirlpool Surface Element
4W10823698 Whirlpool Surface Element Right Rear
5MAY 74008571
5WP8523700 Whirlpool Surface Element
6MAY 74008228
7W10823711 Whirlpool Surface Element Left Front and Right Rear
8MAY 74007845
11MAY 74008081
11W10823713 Whirlpool Surface Element
12MAY 74008073
13MAY 74008078
14MAY 20001080
14WA906B Whirlpool Cooktop Glass Scraper
