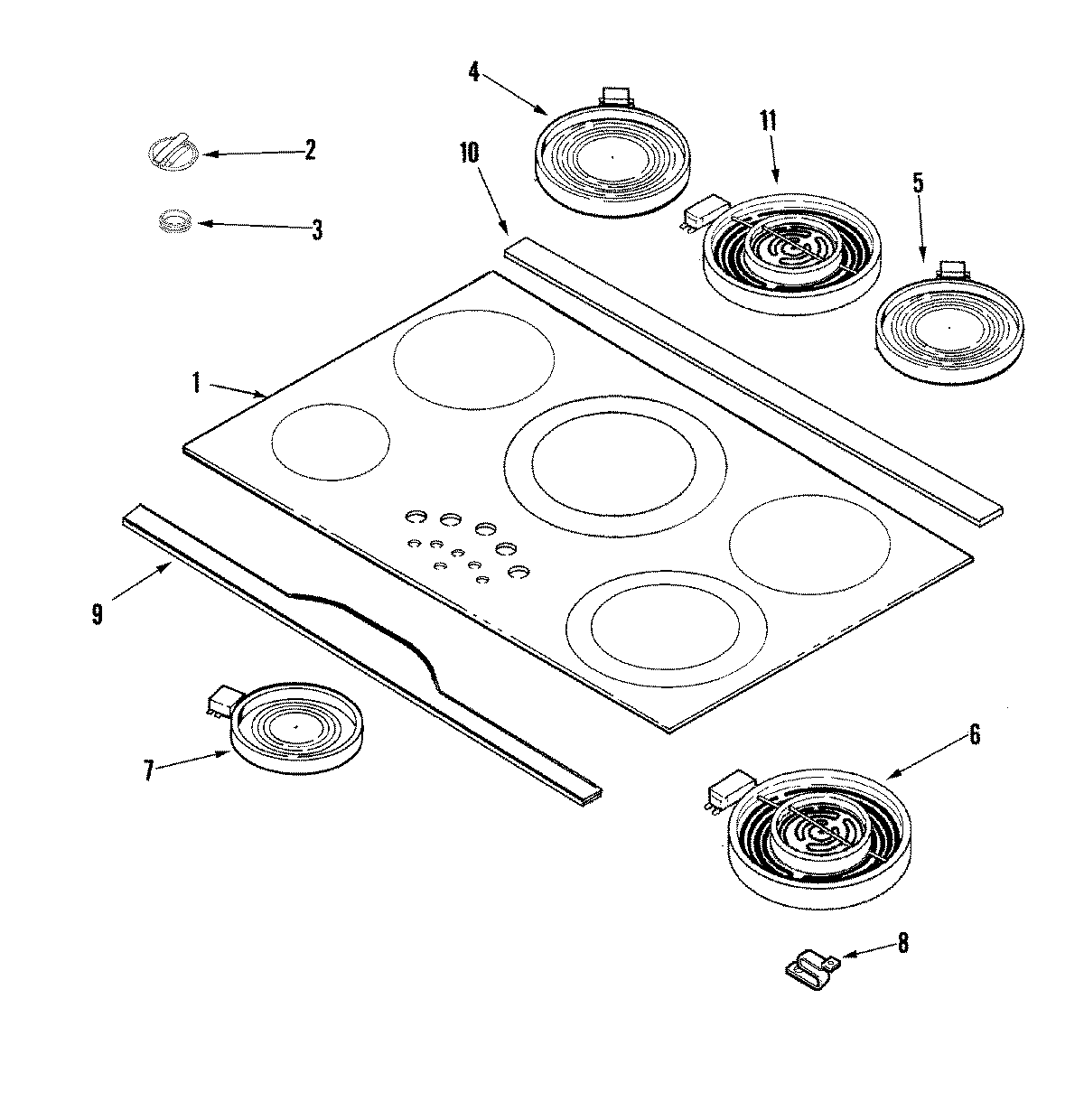

JEC9536BDS 03 – TOP ASSEMBLY

JEC9536BDS 03 – TOP ASSEMBLY

Written by

in

JEC9536BDS 03 – TOP ASSEMBLY

Products

PositionProduct
1MAY 7920P173-60
112002793 Whirlpool Foam Tape
2MAY 7737P408-60
3WPW10293874 Whirlpool Stove Cooktop Knob Grommet
4W10823698 Whirlpool Surface Element Right Rear
5MAY 74008571
6MAY 74008228
7W10823711 Whirlpool Surface Element Left Front and Right Rear
8MAY 74007845
9MAY 74008244
10W10168884 Whirlpool Cooktop Trim
11W10823713 Whirlpool Surface Element
