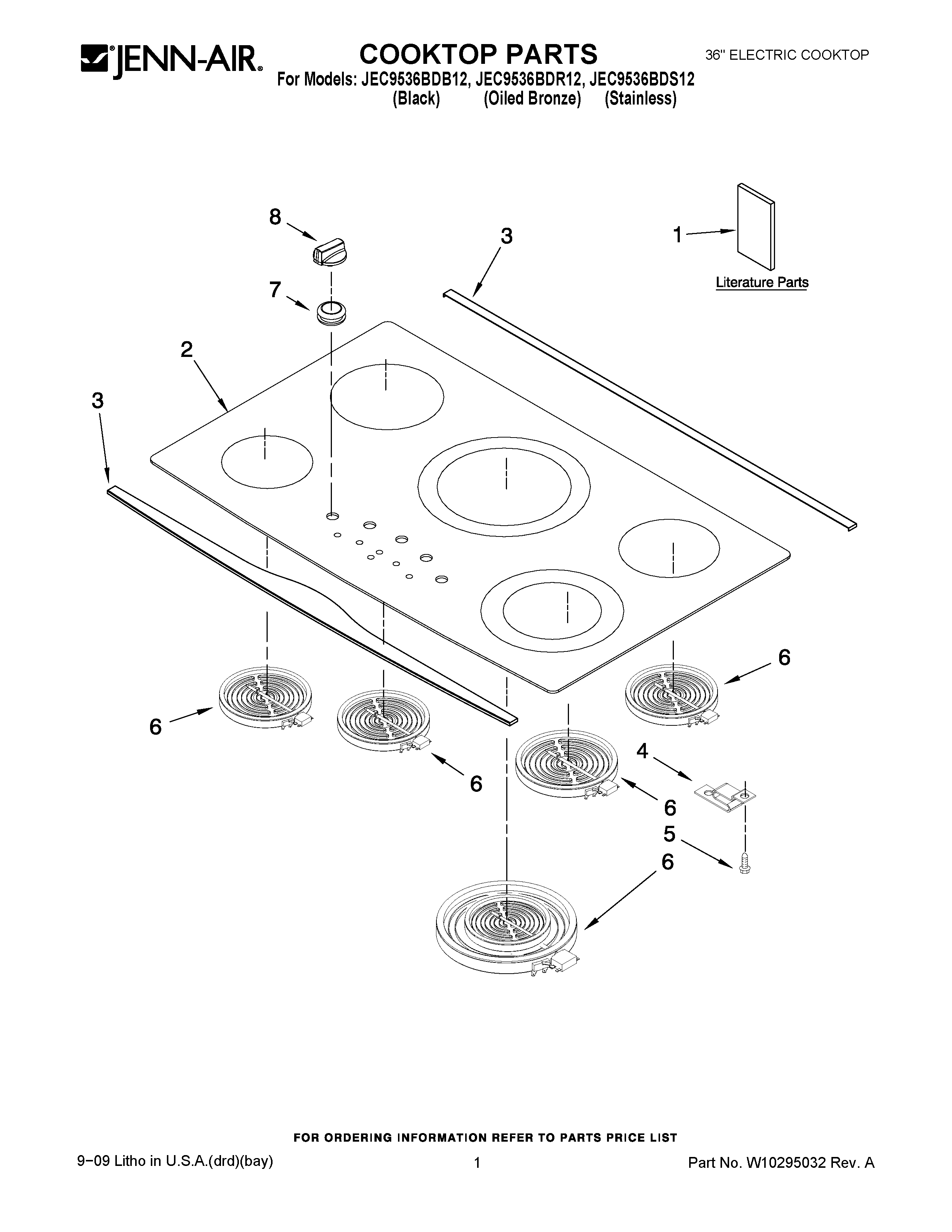

JEC9536BDS12 01 – COOKTOP PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	MAY 8101P495-60
1	WIRING DIAGRAM (ENGLISH)
1	WIRING DIAGRAM (FRENCH)
1	TIPS, SAFE COOKING (FRENCH)
1	MAY 8111P534-60
2	MAY 7920P206-60
2	MAY 7920P205-60
3	TRIM, COOKTOP FOR SS MODEL ONLY (STAINLESS) (REAR)
3	MAY W10168880
4	SUPPORT, ELEMENT
5	MAY 101P426-60
6	ELEMENT (CENTER) (100W WARMING (RR))
6	ELEMENT (3000W (RF))
6	ELEMENT, SURFACE (LF)
6	ELEMENT 2700W (RF)
6	Element LR/RR (2)
7	GROMMET
8	MAY W10168629
