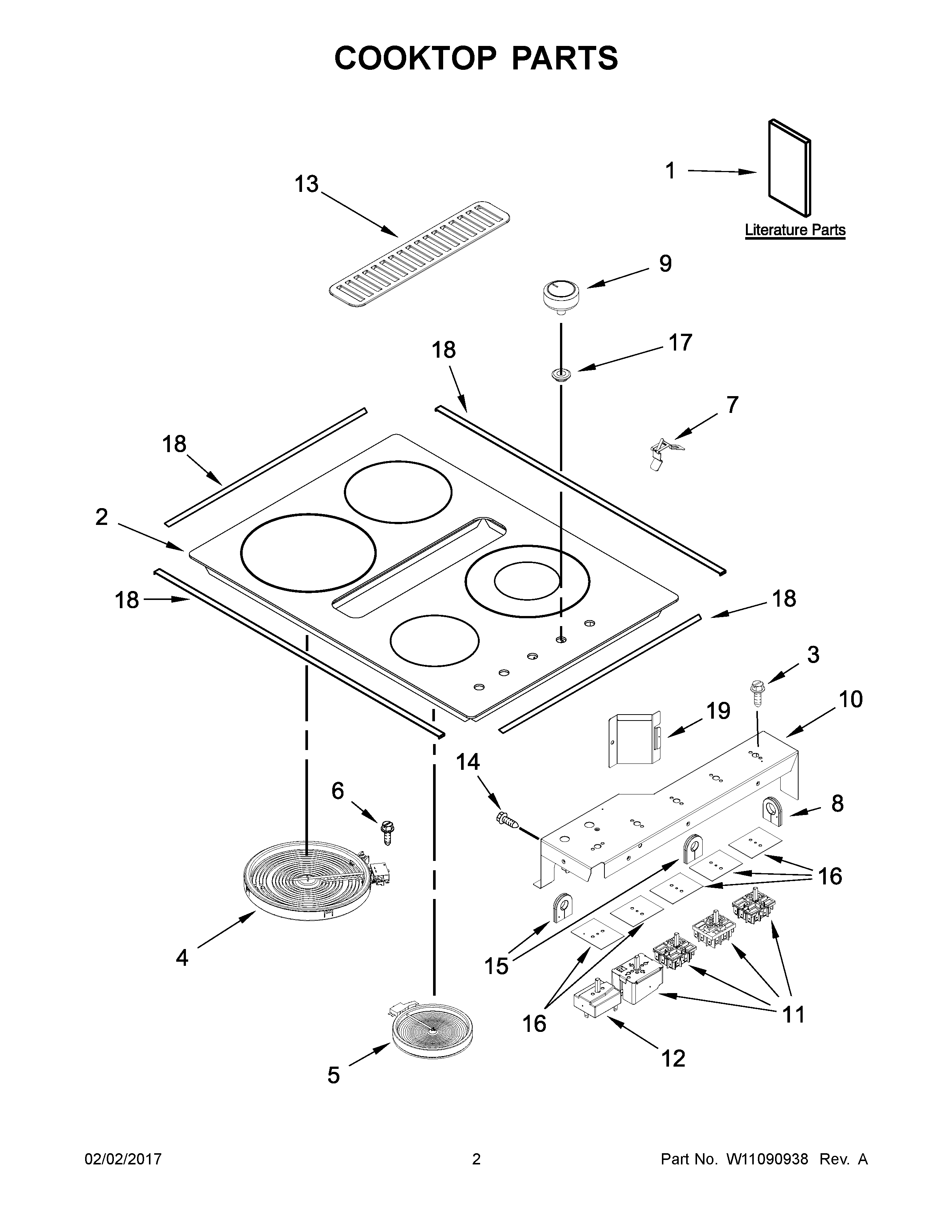

JED3430GB00 02 – COOKTOP PARTS

JED3430GB00 02 – COOKTOP PARTS

Written by

in

JED3430GB00 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10809382
NIKIT, PLENUM SCREW
NIHARNESS, JUMPER
NIHARNESS, BLOWER
NILINER (NOT A SERVICEABLE PART)
NISEAL, LIMITER
1BTIPS, SAFE COOKING (ENGLISH)
1EMAY W11026765
1DMAY W10917804
1AINSTRUCTIONS, USER
1INSTRUCTIONS, INSTALLATION
1CTIPS, SAFE COOKING (FRENCH)
2MAY W10796747
2AMAY W10796746
3SCREW
4AELEMENT (3000/1400W) (LEFT FRONT)
4ELEMENT (3200W) (RIGHT FRONT)
5AELEMENT (1300W) (LEFT REAR)
5ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
6MAY 7101P426- 60
7SPRING, ELEMENT
8MAY W10324729
9AKNOB, CONTROL (STAINLESS)
9KNOB, CONTROL (BLACK)
10MAY W10815302
11SWITCH, INFINITE (RIGHT FRONT)
11ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
11BSWITCH, INFINITE (DUAL) (LEFT FRONT)
12SWITCH, BLOWER
13GRILLE, AIR (BLACK)
14MAY 7101P427-60
15MAY 8008P068-60
16MAY 3183956
17AGROMMET, KNOB (STAINLESS)
17GROMMET, KNOB (BLACK)
18ASSEMBLY, TRIM (STAINLESS MODELS ONLY)
19MAY W10912406
