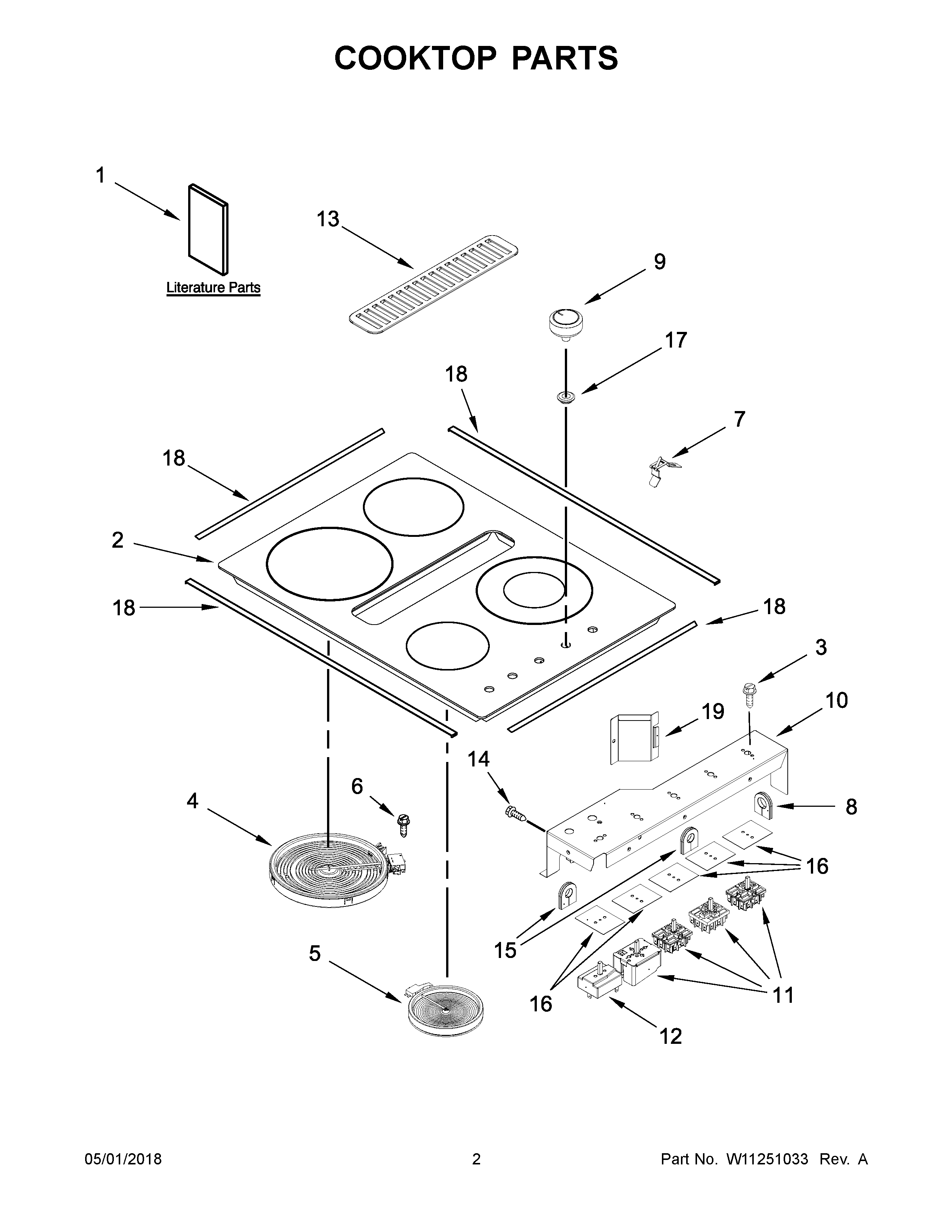

JED3430GB01 02 – COOKTOP PARTS

JED3430GB01 02 – COOKTOP PARTS

Written by

in

JED3430GB01 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, JUMPER
NIMAY 8286642
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, COOKTOP
NIScrew, Ground
NIKIT, PLENUM SCREW
NIHARNESS, BLOWER
NISEAL, LIMITER
1AINSTRUCTIONS, USER
1BMAY W10917804
1CMAY W11026765
1INSTRUCTIONS, INSTALLATION
2MAY W10796747
2AMAY W10796746
3SCREW
4ELEMENT (3200W) (RIGHT FRONT)
4AELEMENT (3000/1400W) (LEFT FRONT)
5AELEMENT (1300W) (LEFT REAR)
5ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
6MAY 7101P426- 60
7SPRING, ELEMENT
8MAY W10324729
9AKNOB, CONTROL (STAINLESS)
9KNOB, CONTROL (BLACK)
10MAY W10815302
11BSWITCH, INFINITE (DUAL) (LEFT FRONT)
11ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
11SWITCH, INFINITE (RIGHT FRONT)
12SWITCH, BLOWER
13GRILLE, AIR (BLACK)
14MAY 7101P427-60
15MAY 8008P068-60
16MAY 3183956
17AGROMMET, KNOB (STAINLESS)
17GROMMET, KNOB (BLACK)
18ASSEMBLY, TRIM (STAINLESS MODELS ONLY)
19MAY W10912406
