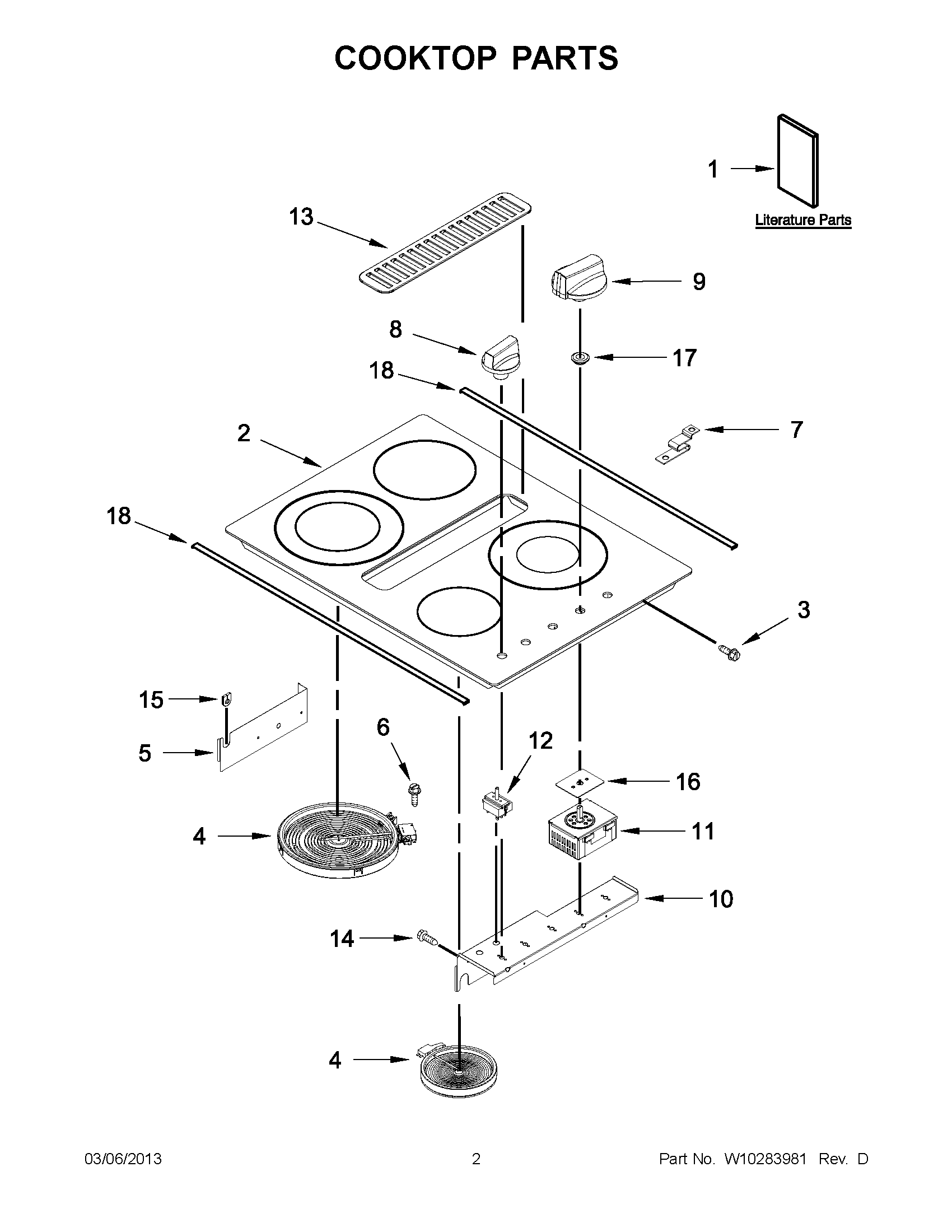

JED3430WB00 01 – COOKTOP PARTS

JED3430WB00 01 – COOKTOP PARTS

Written by

in

JED3430WB00 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10197056
1MAY W10197059
1MAY W10297402
1CARD, FLOW TESTER
1TIPS, SAFE COOKING (FRENCH)
2MAY W10163206
2MAY W10163205
4ELEMENT, SURFACE (ELEMENT, DUAL (3000W) (LEFT FRONT))
4ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
4ELEMENT, SURFACE (ELEMENT, DUAL (2200W) (RIGHT REAR))
4ELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
5MAY W10223167
6MAY 7101P426- 60
7SUPPORT, ELEMENT
8KNOB, FAN (WHITE)
8KNOB, FAN (BLACK)
8KNOB, FAN (STAINLESS)
9MAY W10236133
9MAY W10236132
9MAY W10236130
10MAY W10294445
11SWITCH, CONTROL (DUAL (2200W) (RIGHT REAR))
11SWITCH, CONTROL (SINGLE) (RIGHT FRONT & LEFT REAR)
11SWITCH, CONTROL (DUAL (3000W) (LEFT FRONT))
12SWITCH, BLOWER
13GRILLE, AIR (WHITE)
13GRILLE, AIR (BLACK)
14MAY 7101P427-60
15MAY 8008P068-60
16GASKET, INFINITE SWITCH
17GROMMET (BLACK)
18TRIM,COOKTOP SS MODEL ONLY (REAR)
