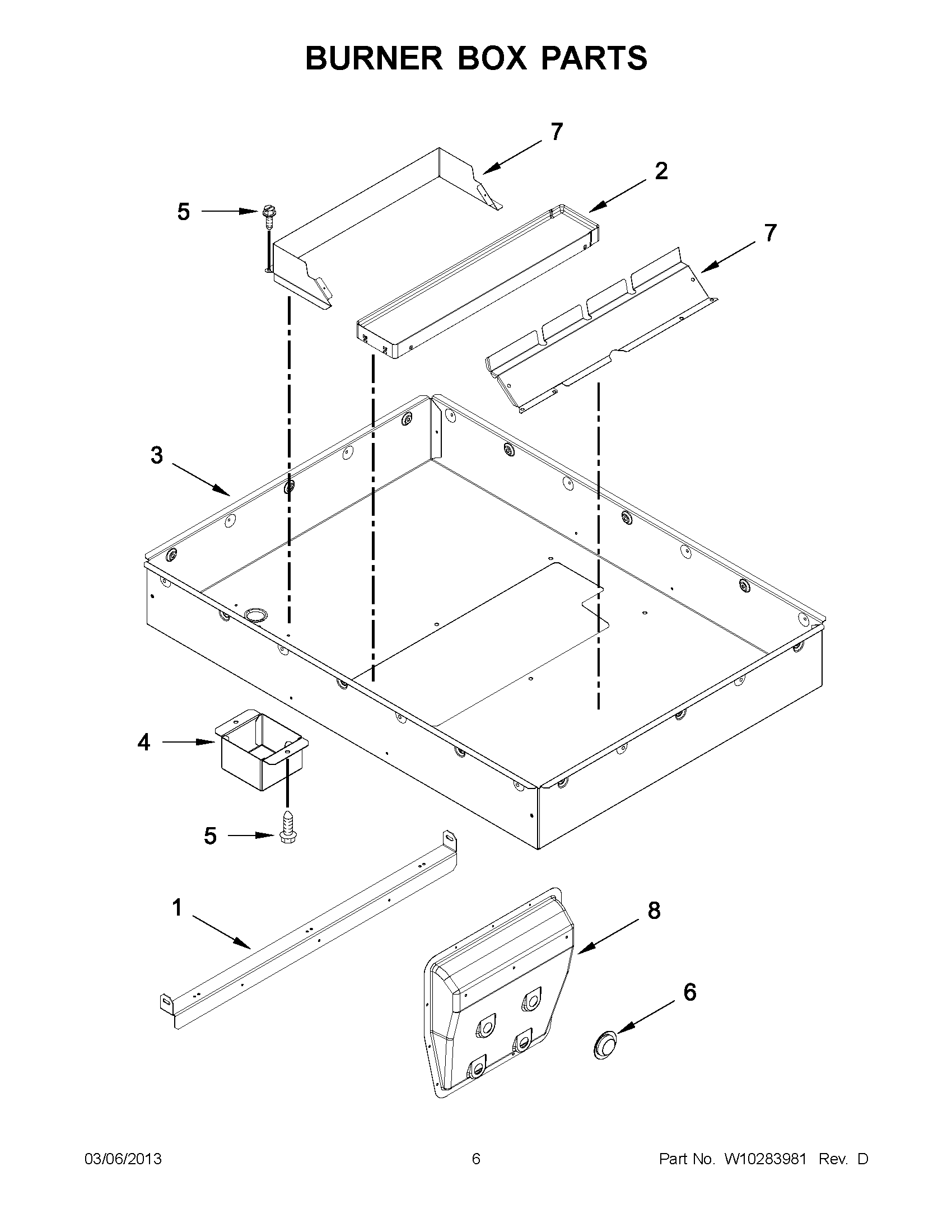

JED3430WF00 03 – BURNER BOX PARTS

Written by

Products

Position	Product
1	MAY W10254665
2	TRAY, SPILL
3	LINER (NOT A SERVICEABLE PART)
4	COVER, BLOWER MOTOR HARNESS
5	MAY 7101P426- 60
6	PLUG, HOLE
7	BRACKET, BURNER BOX SHIELD (RIGHT)
7	BRACKET, BURNER BOX SHIELD (LEFT)
8	BYPASS, PLENUM SIDE
