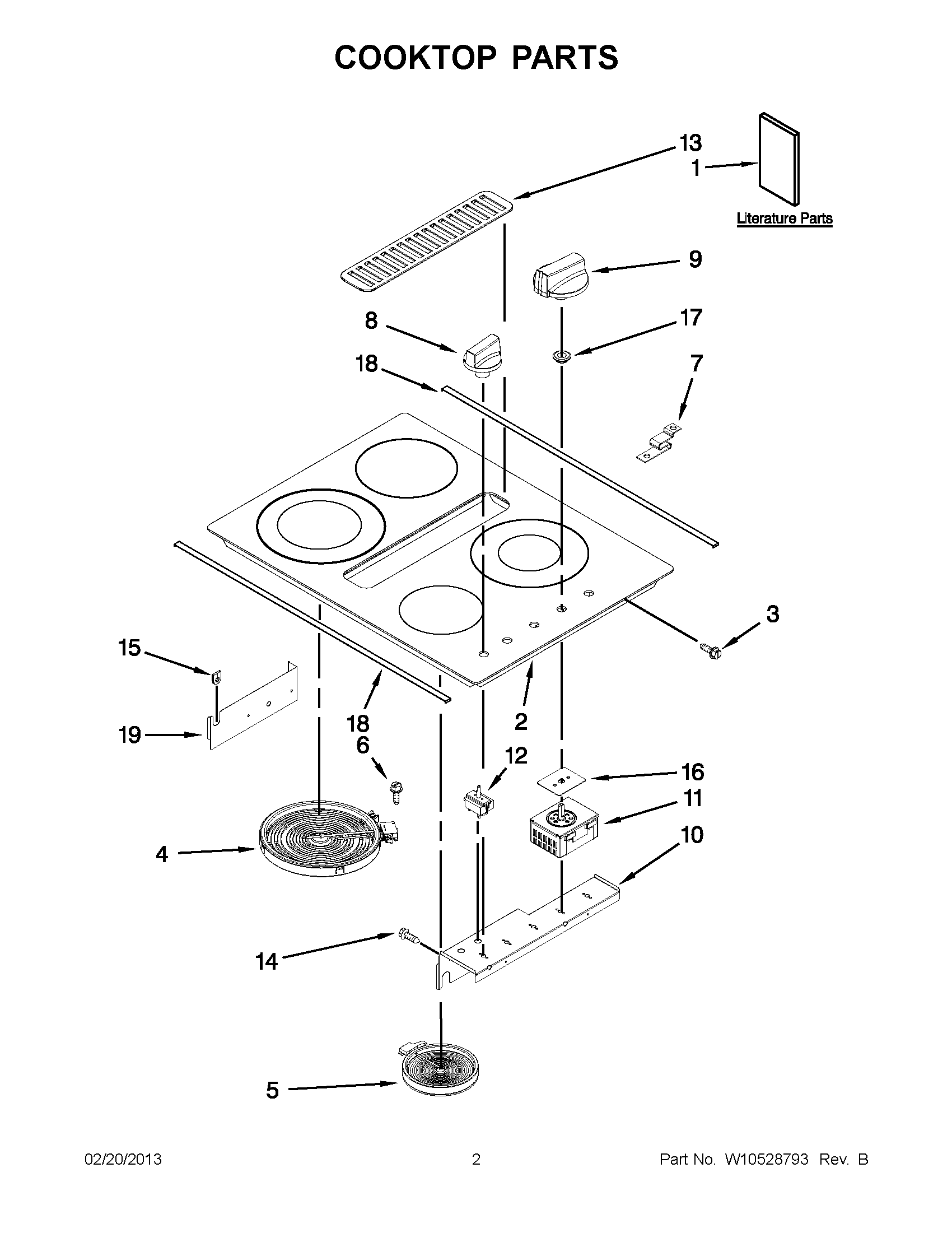

JED3430WS01 01 – COOKTOP PARTSadmin2025-04-26T09:26:15+00:00JED3430WS01 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 1 | MAY W10470330 |
| 1 | MAY W10436037 |
| 1 | MAY W10197056 |
| 1 | CARD, FLOW TESTER |
| 2 | MAY W10163205 |
| 2 | MAY W10163206 |
| 4 | ELEMENT, SURFACE (ELEMENT, DUAL (3000W) (LEFT FRONT)) |
| 4 | ELEMENT, SURFACE (ELEMENT, DUAL (2200W) (RIGHT REAR)) |
| 5 | ELEMENT (1800W) (LEFT FRONT AND RIGHT REAR) |
| 5 | ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR) |
| 6 | MAY 7101P426- 60 |
| 7 | SUPPORT, ELEMENT |
| 8 | KNOB, FAN (WHITE) |
| 8 | KNOB, FAN (BLACK) |
| 8 | KNOB, FAN (STAINLESS) |
| 9 | MAY W10236133 |
| 9 | MAY W10236132 |
| 9 | MAY W10236130 |
| 10 | MAY W10294445 |
| 11 | SWITCH, CONTROL (DUAL (2200W) (RIGHT REAR)) |
| 11 | SWITCH, CONTROL (SINGLE) (RIGHT FRONT & LEFT REAR) |
| 11 | SWITCH, CONTROL (DUAL (3000W) (LEFT FRONT)) |
| 12 | SWITCH, BLOWER |
| 13 | GRILLE, AIR (WHITE) |
| 13 | GRILLE, AIR (BLACK) |
| 14 | MAY 7101P427-60 |
| 15 | MAY 8008P068-60 |
| 16 | GASKET, INFINITE SWITCH |
| 17 | GROMMET (BLACK) |
| 18 | TRIM,COOKTOP SS MODEL ONLY (REAR) |
| 19 | MAY W10223167 |
