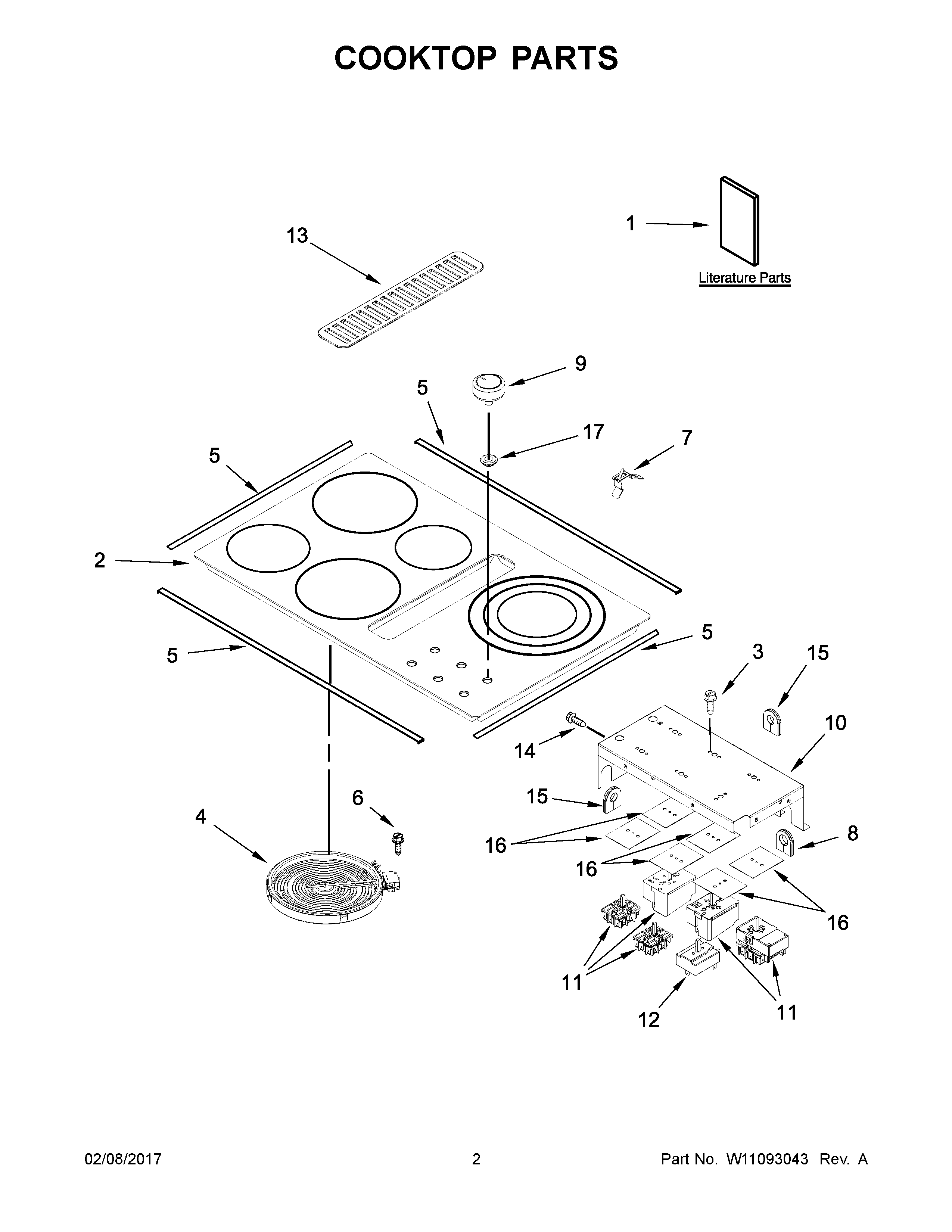

JED3536GB00 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10880354
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, BLOWER
NIHARNESS, JUMPER
NIKIT, PLENUM SCREW
NISEAL, LIMITER
NIMAY W10563221
1INSTRUCTIONS, INSTALLATION
1AINSTRUCTIONS, USER
1DMAY W10917816
1EMAY W11026767
1BTIPS, SAFE COOKING (ENGLISH)
1CTIPS, SAFE COOKING (FRENCH)
2MAY W10795400
2AMAY W10908405
3SCREW
4DELEMENT (3000W) (LEFT FRONT)
4CELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
4BELEMENT (3200W) (RIGHT FRONT)
4AELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
4ELEMENT (1300W) (LEFT REAR)
5MAY W10836025
6MAY 7101P426- 60
7SPRING, ELEMENT
8MAY W10324729
9AKNOB, CONTROL (STAINLESS)
9KNOB, CONTROL (BLACK)
10MAY W10834481
11AMAY W10843843
11BSWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
11SWITCH, INFINITE (RIGHT FRONT)
11CSWITCH, INFINITE (LEFT FRONT)
12SWITCH, BLOWER
13GRILLE, AIR (BLACK)
14MAY 7101P427-60
15MAY 8008P068-60
16MAY 3183956
17GROMMET, KNOB (BLACK)
17AGROMMET, KNOB (STAINLESS)
