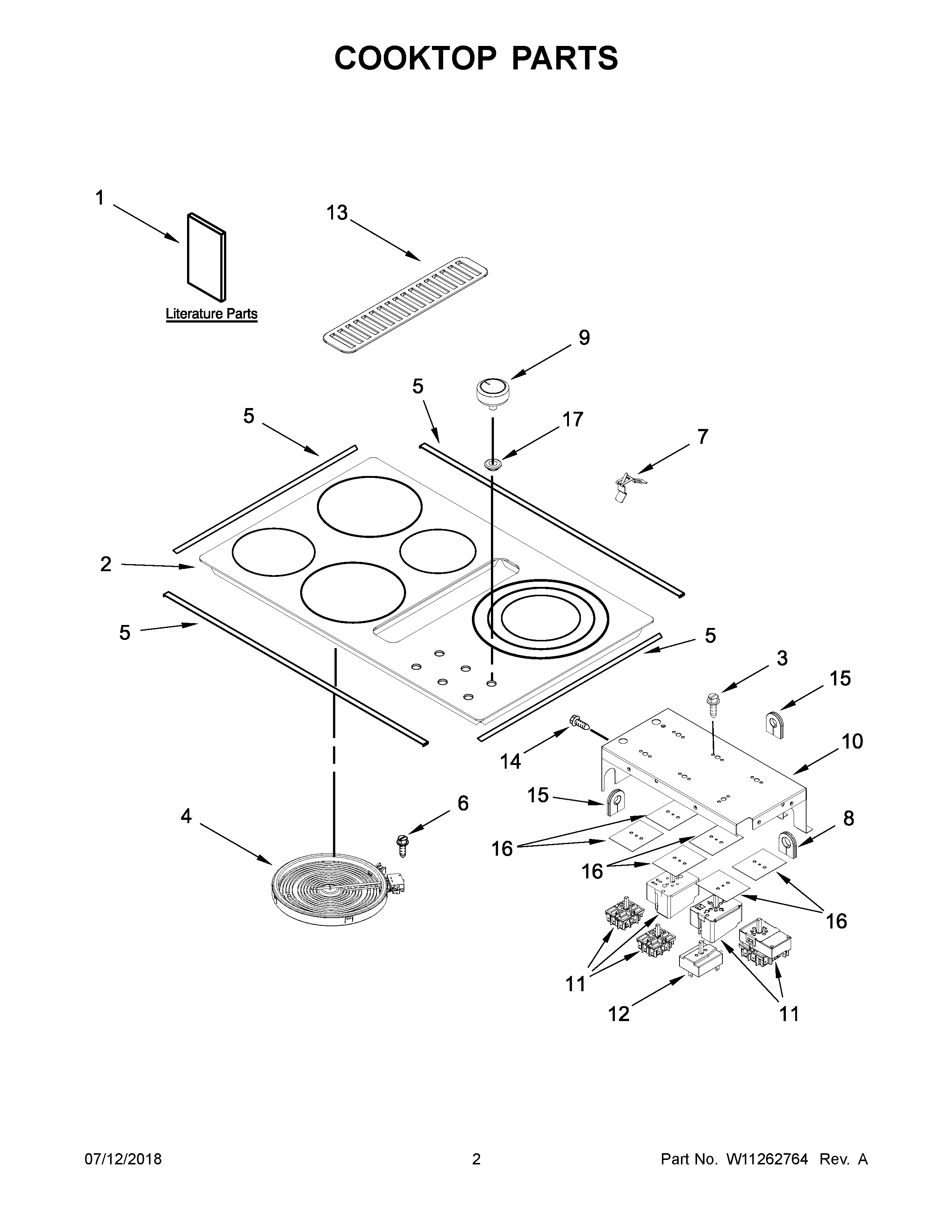

JED3536GS01 02 – COOKTOP PARTS

JED3536GS01 02 – COOKTOP PARTS

Written by

in

JED3536GS01 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W11190482
NIKIT, PLENUM SCREW
NIScrew, Ground
NILINER (NOT A SERVICEABLE PART)
NIMAY 8286642
NISEAL, LIMITER
NIMAY W10563221
NIHARNESS, BLOWER
NIHARNESS, JUMPER
1AINSTRUCTIONS, USER
1CMAY W11026767
1INSTRUCTIONS, INSTALLATION
1BMAY W10917816
2AMAY W10908405
2MAY W10795400
3SCREW
4DELEMENT (3000W) (LEFT FRONT)
4AELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
4CELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
4ELEMENT (1300W) (LEFT REAR)
4BELEMENT (3200W) (RIGHT FRONT)
5MAY W10836025
6MAY 7101P426- 60
7SPRING, ELEMENT
8MAY W10324729
9KNOB, CONTROL (BLACK)
9AKNOB, CONTROL (STAINLESS)
10MAY W10834481
11BSWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
11AMAY W10843843
11CSWITCH, INFINITE (LEFT FRONT)
11SWITCH, INFINITE (RIGHT FRONT)
12SWITCH, BLOWER
13GRILLE, AIR (BLACK)
14MAY 7101P427-60
15MAY 8008P068-60
16MAY 3183956
17GROMMET, KNOB (BLACK)
17AGROMMET, KNOB (STAINLESS)
