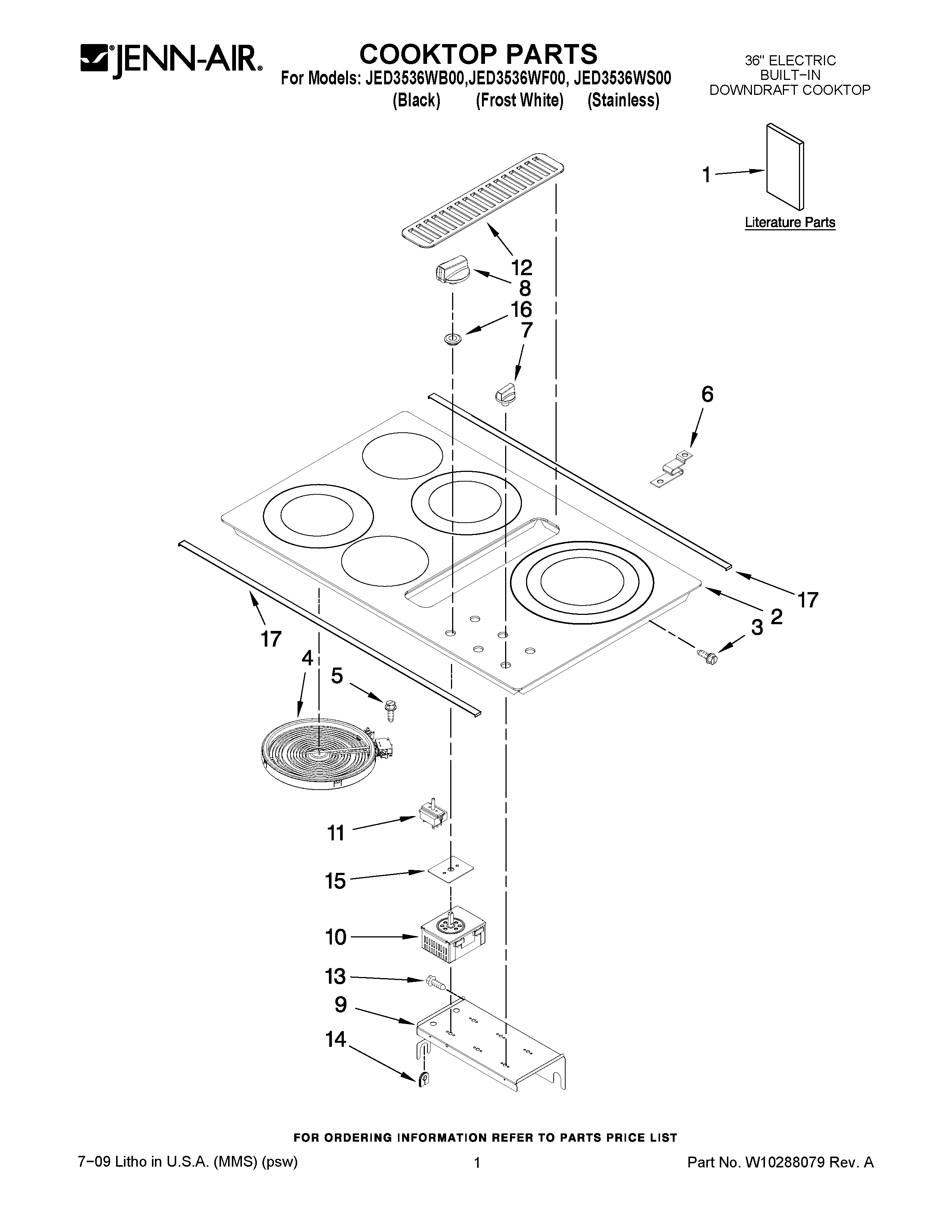

JED3536WB00 01 – COOKTOP PARTS

JED3536WB00 01 – COOKTOP PARTS

Written by

in

JED3536WB00 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10202843
1MAY W10197056
1MAY W10197059
1MAY W10202844
1CARD, FLOW TESTER
1TIPS, SAFE COOKING (FRENCH)
2MAY W10162422
2MAY W10162421
4ELEMENT (CTR)
4ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
4ELEMENT, SURFACE (ELEMENT, DUAL (2200W) (RIGHT REAR))
4ELEMENT, TRIPLE (2700W) (LEFT FRONT)
5MAY 7101P426- 60
6SUPPORT, ELEMENT
7KNOB, FAN (WHITE)
7KNOB, FAN (BLACK)
7KNOB, FAN (STAINLESS)
8MAY W10236132
8MAY W10236133
8MAY W10236130
9MAY W10161712
10SWITCH, CONTROL (DUAL (2200W) (RIGHT REAR))
10SWITCH, CONTROL (SINGLE) (RIGHT FRONT & LEFT REAR)
10SWITCH, INFINITE (LF)
10MAY W10161713
11SWITCH, BLOWER
12GRILLE, AIR (WHITE)
12GRILLE, AIR (BLACK)
13MAY 7101P427-60
14MAY 8008P068-60
15GASKET, INFINITE SWITCH
16GROMMET
17TRIM, COOKTOP FOR SS MODEL ONLY (STAINLESS) (REAR)
