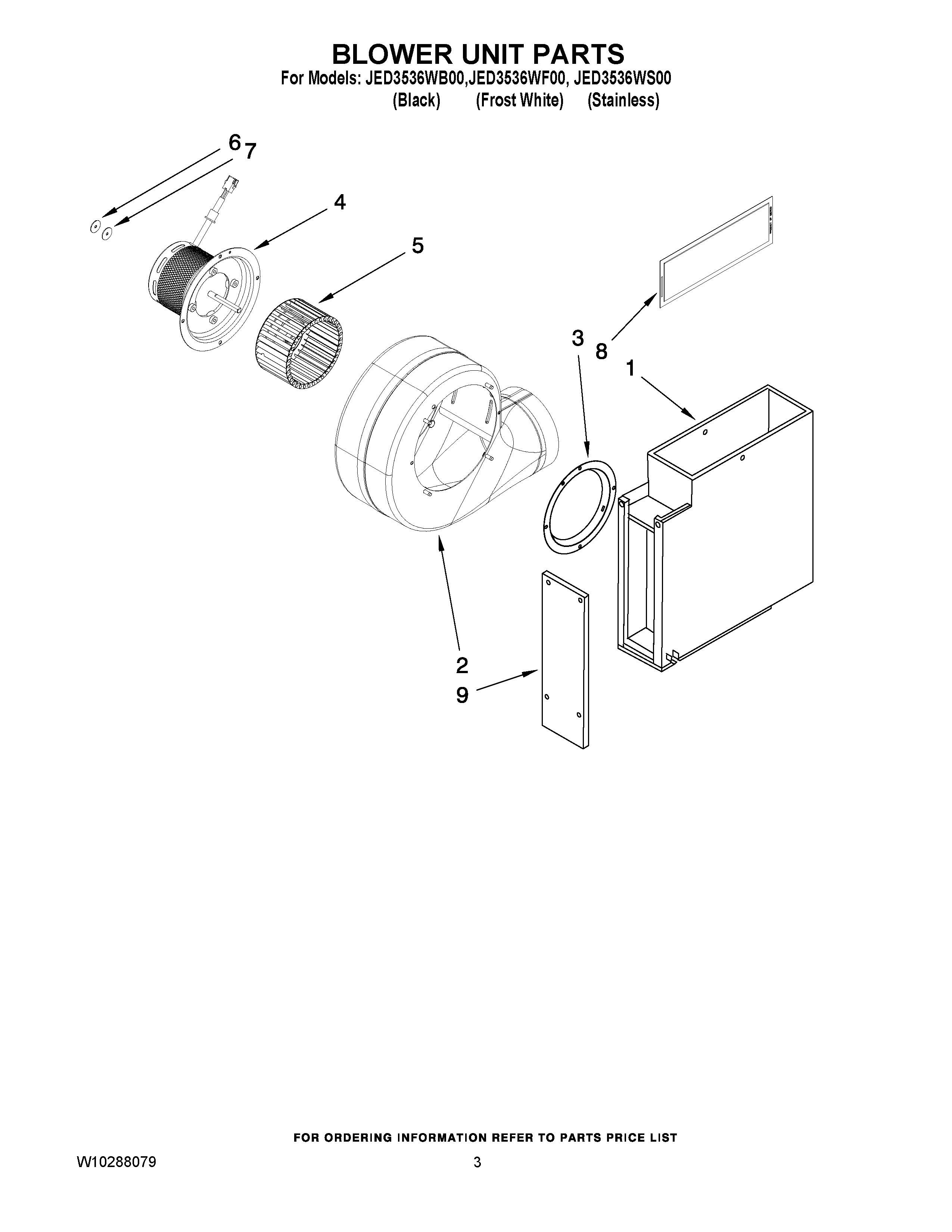

JED3536WF00 02 – BLOWER UNIT PARTS
Products
| Position | Product |
|---|---|
| 1 | MAY W10184122 |
| 2 | MAY 2822W001-80 |
| 3 | RING, INLET |
| 4 | MAY W10247585 |
| 5 | WHEEL, BLOWER |
| 6 | NUT, LOCK |
| 7 | WASHER |
| 8 | MAY W10240990 |
| 9 | GUARD, BLOWER |
JED3536WF00 02 – BLOWER UNIT PARTS
| Position | Product |
|---|---|
| 1 | MAY W10184122 |
| 2 | MAY 2822W001-80 |
| 3 | RING, INLET |
| 4 | MAY W10247585 |
| 5 | WHEEL, BLOWER |
| 6 | NUT, LOCK |
| 7 | WASHER |
| 8 | MAY W10240990 |
| 9 | GUARD, BLOWER |
