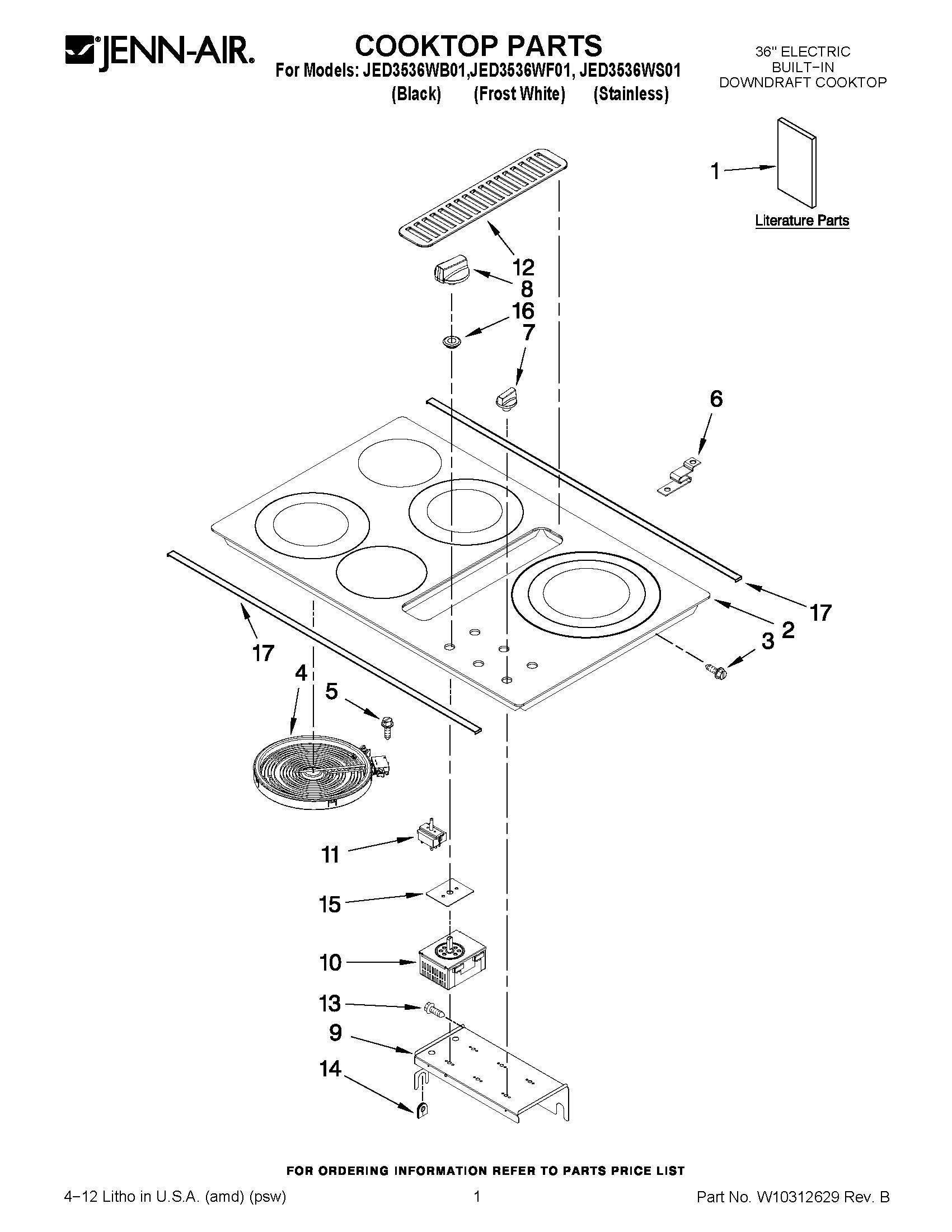

JED3536WF01 01 – COOKTOP PARTSadmin2025-04-26T09:28:37+00:00JED3536WF01 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | MAY W10197056 |
| 1 | MAY W10197059 |
| 1 | CARD, FLOW TESTER |
| 1 | MAY W10299271 |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 2 | MAY W10162422 |
| 2 | MAY W10162421 |
| 4 | ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR) |
| 4 | ELEMENT, SURFACE (ELEMENT, DUAL (2200W) (RIGHT REAR)) |
| 4 | ELEMENT (CTR) |
| 4 | ELEMENT, TRIPLE (2700W) (LEFT FRONT) |
| 5 | MAY 7101P426- 60 |
| 6 | SUPPORT, ELEMENT |
| 7 | KNOB, FAN (STAINLESS) |
| 7 | KNOB, FAN (BLACK) |
| 7 | KNOB, FAN (WHITE) |
| 8 | MAY W10236133 |
| 8 | MAY W10236132 |
| 8 | MAY W10236130 |
| 9 | MAY W10161712 |
| 10 | MAY W10161713 |
| 10 | SWITCH, CONTROL (DUAL (2200W) (RIGHT REAR)) |
| 10 | SWITCH, CONTROL (SINGLE) (RIGHT FRONT & LEFT REAR) |
| 10 | SWITCH, INFINITE (LEFT REAR & RIGHT REAR) |
| 11 | SWITCH, BLOWER |
| 12 | GRILLE, AIR (BLACK) |
| 12 | GRILLE, AIR (WHITE) |
| 13 | MAY 7101P427-60 |
| 14 | MAY 8008P068-60 |
| 15 | GASKET, INFINITE SWITCH |
| 16 | GROMMET (BLACK) |
| 17 | TRIM, COOKTOP FOR SS MODEL ONLY (STAINLESS) (REAR) |
