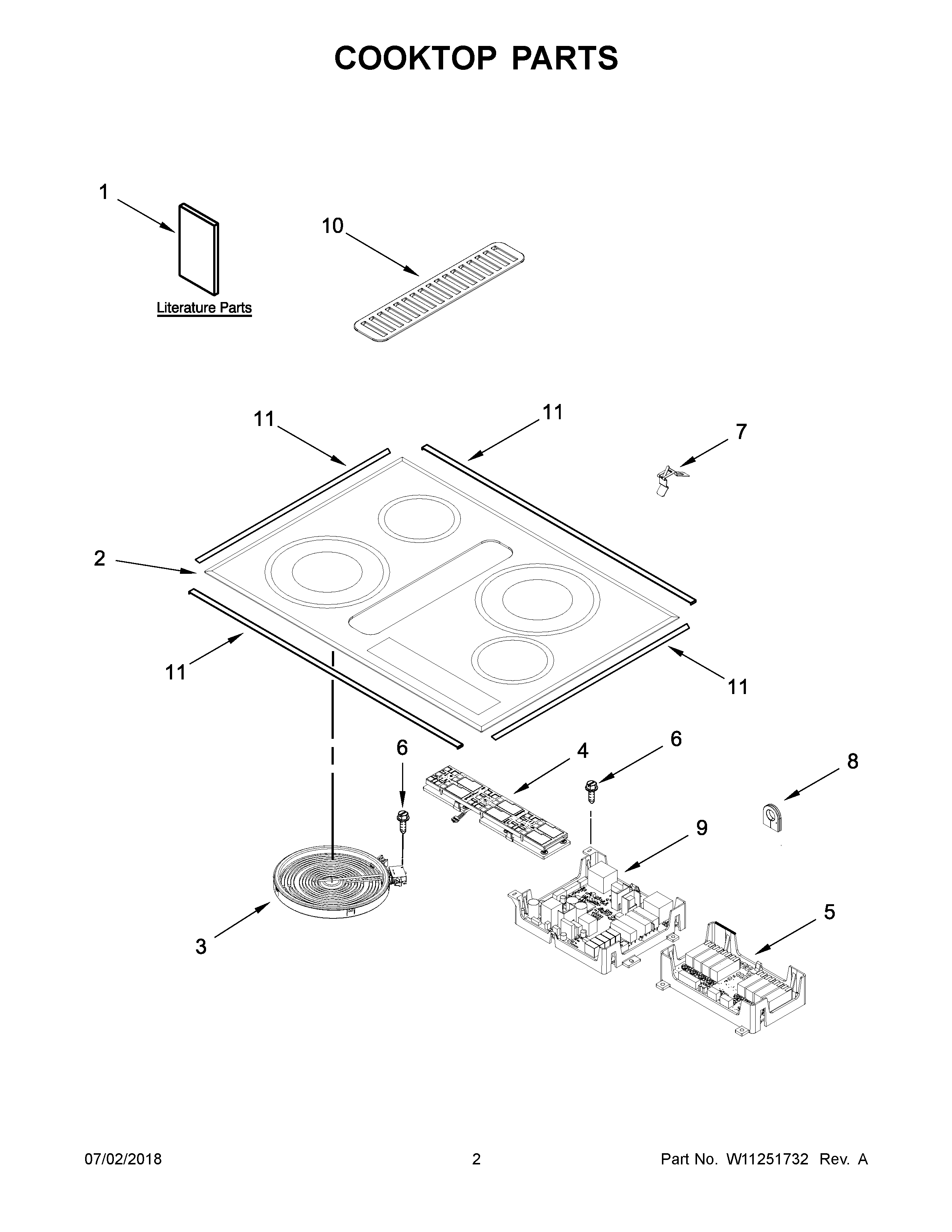

JED4430GB01 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W11190487
NIKIT, PLENUM SCREW
NIScrew, Ground
NILINER (NOT A SERVICEABLE PART)
NIMAY 8286642
NISEAL, LIMITER
NIMAY W11190486
1INSTRUCTIONS, INSTALLATION
1AINSTRUCTIONS, USER
1CMAY W10917819
1BMAY W11031713
2MAY W10796745
2AMAY W10908403
3AELEMENT (1300W) (LEFT REAR)
3ELEMENT (3000/1400W) (LEFT FRONT)
3BELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
4MAY W11032484
5MAY W10817977
6MAY 7101P426- 60
7SPRING, ELEMENT
8MAY W10324729
9MAY W10817979
10GRILLE, AIR (BLACK)
11ASSEMBLY, TRIM (STAINLESS MODELS ONLY)
