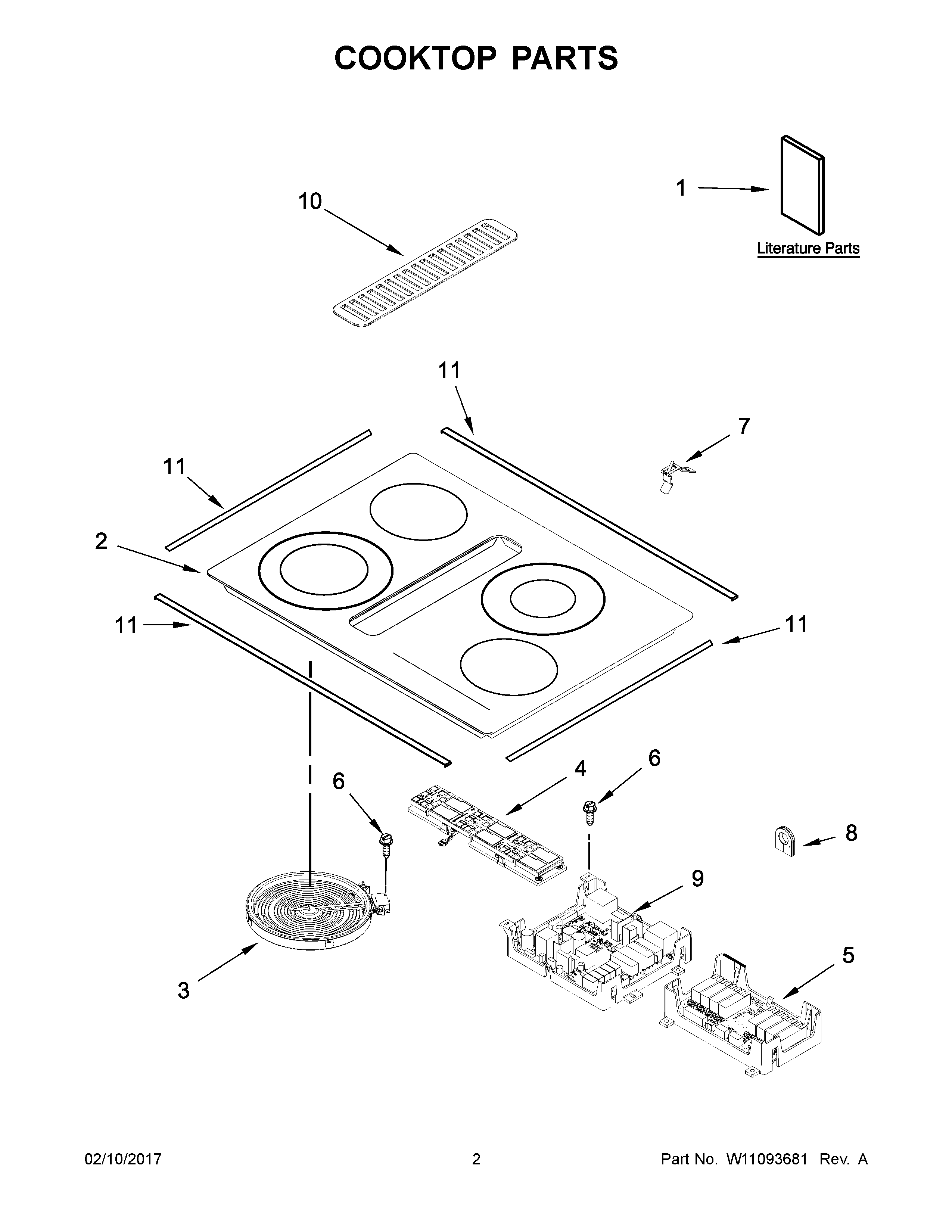

JED4430GS00 02 – COOKTOP PARTS

JED4430GS00 02 – COOKTOP PARTS

Written by

in

JED4430GS00 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10836940
NIMAY W10809384
NIKIT, PLENUM SCREW
NILINER (NOT A SERVICEABLE PART)
NISEAL, LIMITER
1BTIPS, SAFE COOKING (ENGLISH)
1EMAY W10917819
1INSTRUCTIONS, INSTALLATION
1AINSTRUCTIONS, USER
1DMAY W11031713
1CTIPS, SAFE COOKING (FRENCH)
2MAY W10796745
2AMAY W10908403
3AELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
3BELEMENT (1300W) (LEFT REAR)
3ELEMENT (3000/1400W) (LEFT FRONT)
4MAY W11032484
5MAY W10817977
6MAY 7101P426- 60
7SPRING, ELEMENT
8MAY W10324729
9MAY W10817979
10GRILLE, AIR (BLACK)
11ASSEMBLY, TRIM (STAINLESS MODELS ONLY)
